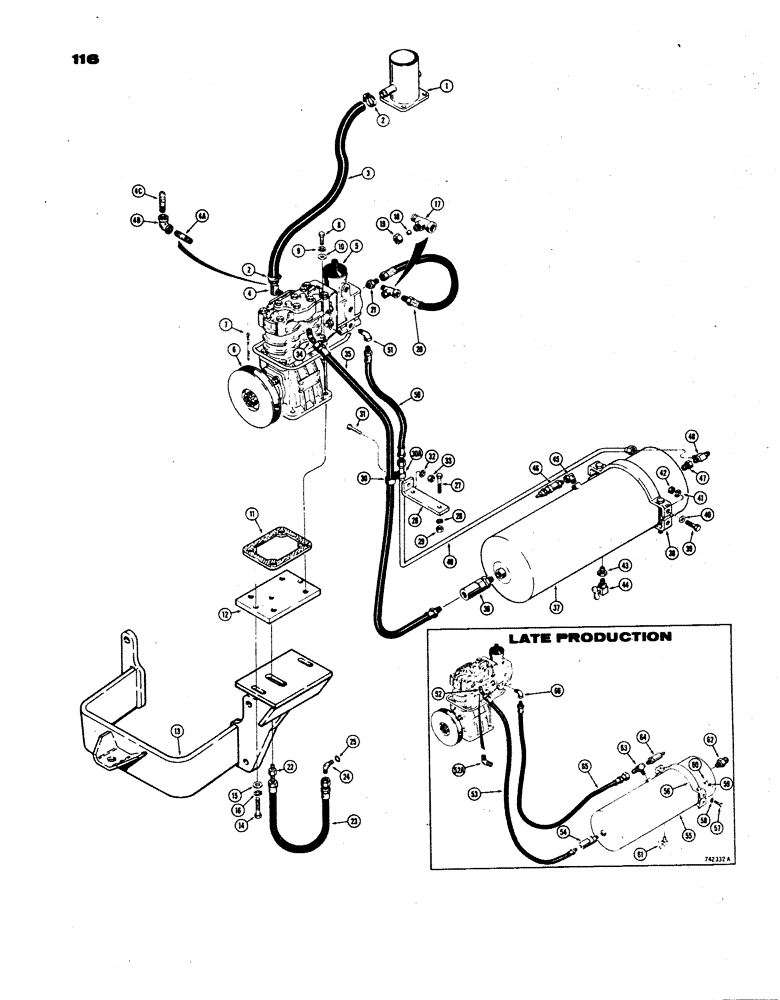

Запчасти Case W24B (116) - BRAKE SYSTEM, AIR COMPRESSOR AND RELATED PARTS (07) - BRAKES

1

L52566

ADAPTER - air cleaner to intake manifold

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

L10357

INTAKE AIR HOSE,0.75" ID x 36.00", SAE 20R1

- Air Compressor, Intake 0.75" ID x 36.00", SAE 20R1

1шт.

4

A9155

90 ELBOW

STEM - hose, 90 degrees (Models with L14814 compressor)

1шт.

4a

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - 1/2" NPT x 2" (Models with L57774 compressor)

1шт.

4b

221-1377

ELBOW,90 Degree, 1/2" NPT

- 90 degrees, 1/2" NPT (Models with L57774 compressor)

1шт.

4c

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

CONNECTOR - 1/2" NPT x 3/4" hose I.D. (Models with L57774 compressor)

1шт.

5

L14814

COMPRESSOR

- air (Parts list Figures 120 and 122) Before tractor Sn. 9120664

1шт.

5

L57774

COMPRESSOR

- air (Parts list Figures 123A and 123C) Tractor Sn. 9120664 and after

1шт.

6

L54176

PULLEY

- L14814 Air Compressor

1шт.

6

L57805

PULLEY

- L57774 Air Compressor

1шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(L14814 Air Compressor) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(L57774 Compressor) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

9

92-7

LOCK WASHER,7/16"

4шт.

10

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

11

L10354

GASKET

- mounting, Serial Range: plate-compressor

1шт.

12

L47864

PLATE ASSY.

PLATE - L14814 Air Compressor Mounting

1шт.

12

L57807

PLATE - L57774 Air Compressor Mounting

1шт.

13

L48579

BRACKET

- engine and compressor mtg.

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket to plate Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

15

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - flex tube, 1/4" tube, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

TEE - flex tube, 1/4" tube

1шт.

18

222-102

SLEEVE,1/4" Tube

1шт.

19

87017024

TUBE NUT,1/2"-24

NUT - flex tube, 1/4" tube

1шт.

20

L16575

HOSE

- compressor oil, inlet (17" long)

1шт.

21

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male

1шт.

22

221-53

BUSHING

- reducer

1шт.

23

L16574

HOSE,0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

ASSY, , Compressor Oil Return 0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

1шт.

24

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref. 25 90º, 9/16"-18, 37º x 7/16"-20, O-Ring

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

26

L52510

BRACKET - clamp, early production

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Early production Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

early production 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), early production

2шт.

30

51200329

CLIP

CLAMP - hose, early production

1шт.

30a

49845

CLAMP

- tube, early production

1шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Early production Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

early production 3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), early production

1шт.

34

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- male, 45 degrees, early production

1шт.

35

L52821

HOSE ASSY.

HOSE - air compressor, outlet (28-1/2" long), early production

1шт.

36

L12586

VALVE

CHECK VALVE - air reservoir, early production

1шт.

37

L14823

TANK

RESERVOIR - air, brake system, early production

1шт.

38

L12632

BRACKET

- reservoir, mounting, early production

2шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket mounting), early production Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

40

95-6

WASHER,3/8"

- standard wrot (), early production 3/8"

4шт.

41

92-6

LOCK WASHER,3/8"

early production 3/8"

4шт.

42

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), early production

4шт.

43

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

REDUCING BUSHING - hex. (3/8" NPT x 1/4" NPT), early production

1шт.

44

217-101

VALVE

DRAIN COCK - reservoir, early production

1шт.

45

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degrees (1/4" NPT), early production

1шт.

46

L48992

VALVE,1/4"

ASSEMBLY - safety, early production

1шт.

47

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

Early production 1/2"-14 NPTF x 1/4"-18 Fem NPTF

1шт.

48

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- male, run (3/8" JIC x 1/4" NPT), early production

1шт.

49

L16539

TUBE

- air compressor, to governor outlet, early production

1шт.

50

L16690

HOSE ASSY.

HOSE - air compressor, governor outlet, early production

1шт.

51

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, early production 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

52

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- street, 45 degrees (Models with L14814 compressor), late production

1шт.

52a

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees (1/2" tapered) Used with L57774 Compressor, late production

1шт.

53

L52822

HOSE

- air compressor, outlet (20-1/2" long) If used, late production

1шт.

53

L58528

AIR HOSE,0.50" ID x 26.50", SAE 100R1

Air Compressor, Outlet, If used, Late Production 0.50" ID x 26.50", SAE 100R1

1шт.

54

L12586

VALVE

CHECK VALVE - air reservoir, late production

1шт.

55

L14823

TANK

RESERVOIR - air, brake system, late production

1шт.

56

L12632

BRACKET

- reservoir, mounting, late production

2шт.

57

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket mounting), late production Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

58

95-6

WASHER,3/8"

- standard wrot (), late production 3/8"

4шт.

59

92-6

LOCK WASHER,3/8"

late production 3/8"

4шт.

60

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC), late production

4шт.

61

217-101

VALVE

DRAIN COCK - reservoir, late production

1шт.

62

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - straight, male, late production

1шт.

63

L48131

FITTING

TEE - special, late production

1шт.

64

L48992

VALVE,1/4"

ASSEMBLY - safety, late production

1шт.

65

L47886

HOSE

- air compressor, governor outlet (27" long), late production

1шт.

66

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degrees (1/8" NPT), late production

1шт.
