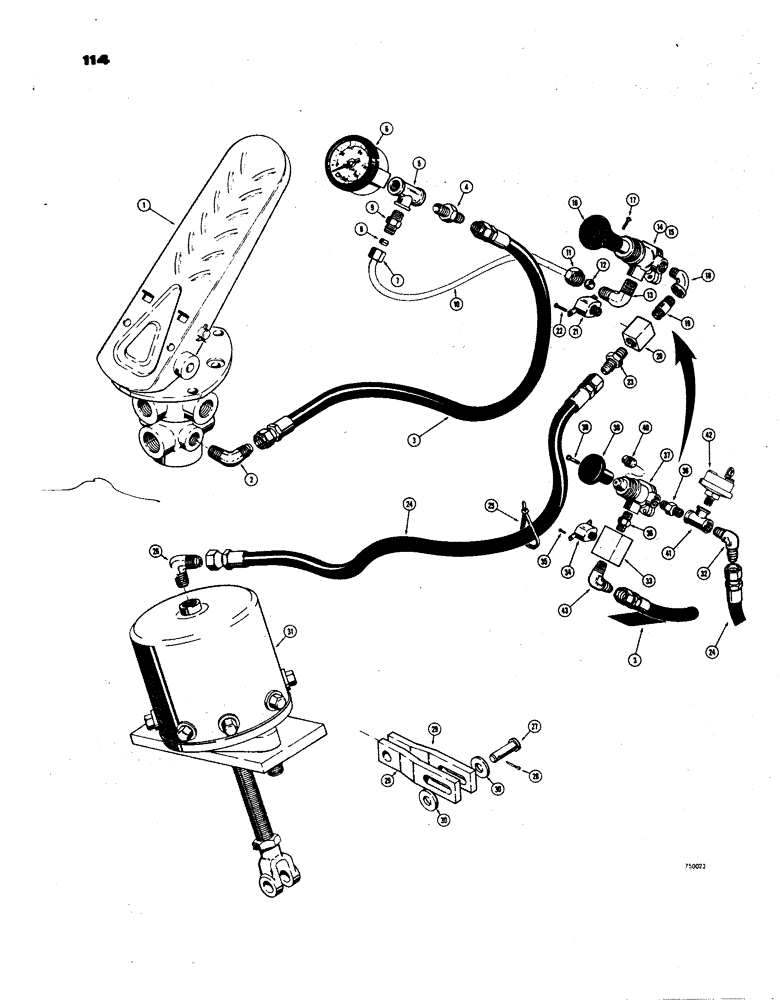

Запчасти Case W24B (114) - BRAKE SYSTEM, EMERGENCY BRAKE VALVE TO SAFETY CHAMBER (07) - BRAKES

1

L43595

PEDAL

TREADLE ASSEMLBY - brake, R.H. (Parts list Figure 134)

1шт.

2

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees, male

1шт.

3

L52184

HOSE

- to air pressure gauge (56" long)

1шт.

4

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

5

221-1421

TEE,Pipe, 1/8" NPT

- pipe, branch (1/8" NPT)

1шт.

6

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, male (Tube), Includes: Ref. 7 - 9

1шт.

7

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

8

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR - 1/4" tube

1шт.

10

L52189

TUBE,0.25" OD x 10" L

- tee to brake valve

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

- male, 90 degrees (Tube), Includes: Ref. 11 - 13

1шт.

11

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

12

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

13

NSS

NOT SOLD SEPARAT

ELBOW - male, 90 degrees (1/4" tube)

1шт.

14

L52178

VALVE

ASSEMBLY - emergency brake, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - brake valve

1шт.

16

L35267

KNOB

- brake valve

1шт.

17

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- machine, Phillips head (#8 - 32 NC x 3/8")

1шт.

18

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

1шт.

19

217-60

REDUCER,1/4" - 18 NPT x 1/8" - 27 NPT

NIPPLE - pipe

1шт.

20

L13273

UNION TEE

TEE - special, emergency brake line

1шт.

21

L48480

SWITCH

- pressure

1шт.

22

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8 - 32 NC x 1/4")

2шт.

23

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

24

L52185

HOSE ASSY.

HOSE - valve to safety chamber (105" long)

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - brake hoses

1шт.

26

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees, male

1шт.

27

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16" dia.

1шт.

28

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

29

L108528

LINK

- safety, Serial Range: chamber-transmission

2шт.

30

95-7

WASHER,7/16"

- plain () 7/16"

2шт.

31

L48127

CHAMBER

ASSEMBLY - safety (Parts list Figure 140)

1шт.

32

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- reducing (1/4" tube to 1/8" pipe), the following parts are used on models with instrument cluster

1шт.

33

L13273

UNION TEE

TEE - special, emergency brake line, the following parts are used on models with instrument cluster

1шт.

34

L48480

SWITCH

- pressure, the following parts are used on models with instrument cluster

1шт.

35

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 - 32 NC x 1/4", the following parts are used on models with instrument cluster

2шт.

36

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

BUSHING - reducing (1/4" pipe to 1/8" pipe), the following parts are used on models with instrument cluster

2шт.

L52178

VALVE

ASSEMBLY - emergency brake, the following parts are used on models with instrument cluster, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

VALVE - emergency brake, the following parts are used on models with instrument cluster

1шт.

38

L35267

KNOB

- emergency brake valve, the following parts are used on models with instrument cluster

1шт.

39

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- machine, Phillips head #8 - 32 NC x 3/8", the following parts are used on models with instrument cluster

1шт.

40

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" NPT), the following parts are used on models with instrument cluster

1шт.

41

221-690

3 WAY CONNECTION

TEE - street (1/8" NPT), the following parts are used on models with instrument cluster

1шт.

42

L57176

SENDER UNIT

SENDING UNIT - air pressure, the following parts are used on models with instrument cluster

1шт.

43

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- reducing (1/4" tube to 1/8" pipe), the following parts are used on models with instrument cluster

1шт.
