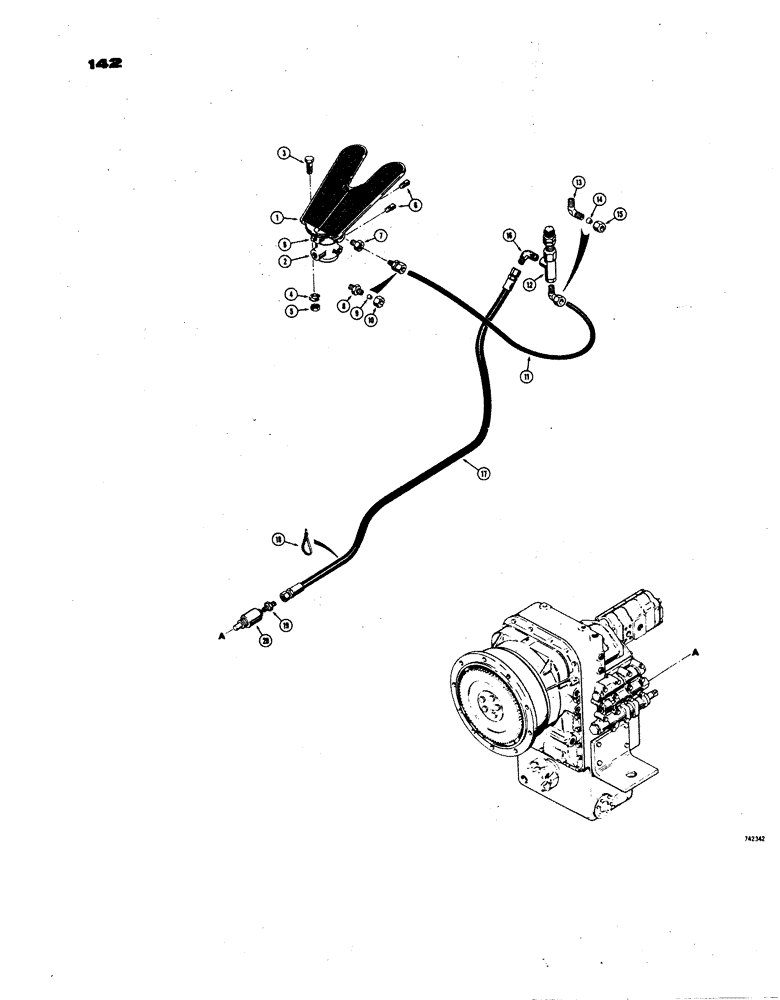

Запчасти Case W24B (142) - CLUTCH CUTOUT PARTS (06) - POWER TRAIN

1

L43595

PEDAL

TREADLE ASSY. - brake (See Figure 134 for proper valve)

1шт.

2

L15782

BRAKE VALVE

- control, brake (Parts list Figure 134)

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Treadle mounting) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

6

NH772441

PLUG,Sq Hd, 3/8" NPTF, Brass

- pipe, square head (1/2" NPT)

3шт.

7

217-47

BUSHING,1/2" - 14 NPTF x 1/8" - 27 Fem NPTF

REDUCING BUSHING - hex., pipe (1/2" NPT x 1/8" NPT)

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - tube, 1/4" tube, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

CONNECTOR - tube, 1/4" tube

1шт.

9

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

10

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

11

L16535

TUBE,0.25" OD x 20.5" L

- brake control valve to clutch cutout valve

1шт.

12

L14818

VALVE

- control, clutch cutout (Parts list Figure 138)

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - tube, 1/4" tube, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

ELBOW - tube, 1/4" tube

1шт.

14

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

15

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees

1шт.

17

L48120

HOSE

- valve to clutch cutout cylinder (82" long)

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

TIE - hose

1шт.

19

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

20

L12627

CYLINDER

- clutch cutout

1шт.
