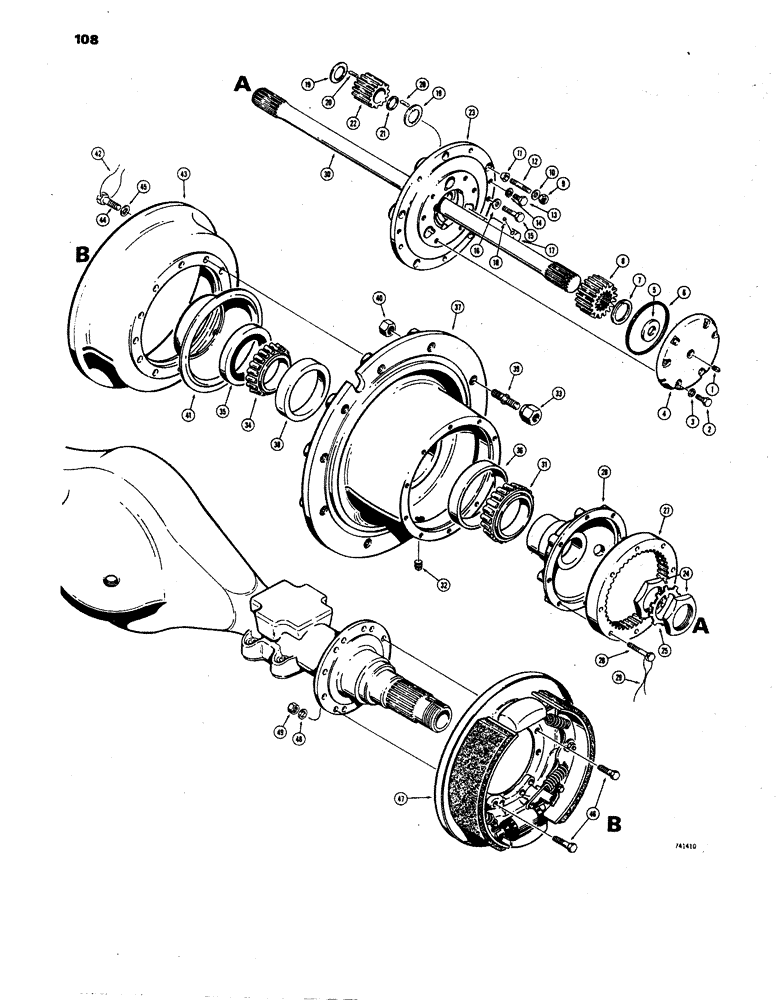

Запчасти Case W24B (108) - REAR AXLE AND PLANETARY (06) - POWER TRAIN

L26857

AXLE ASSEMBLY - rear, ring gear drive (Before tractor Sn. 9115926), Includes: Ref. 1 - 49

1шт.

L55418

AXLE ASSEMBLY - rear, flex plate drive (Tractor Sn. 9115926 and after), Includes: Ref. 1 - 49

1шт.

1

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - oil level, square socket head (1/4" NPT) Used on L26857 axle assembly only

2шт.

1

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil level, Used on L55418 axle assembly only Hex Soc, 1/4"-18 NPTF

2шт.

2

113-331

NUT,Hex, 7/16"-14 x 1 1/4", G5, Full Thd

HHCS - 7/16" - 14 NC x 1-1/4"

12шт.

3

L33003

WASHER

- special

12шт.

L33000

COVER

ASSEMBLY - planetary, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

5

L33001

WASHER

- thrust, sun gear

1шт.

6

L33004

SEALING RING

RING - planetary cover

2шт.

7

L33005

RING

- retaining, sun gear

2шт.

8

L33006

GEAR

- sun

2шт.

9

129-545

NUT,1/2"-20, G8

10шт.

10

L33002

WASHER

- special (1/2")

10шт.

11

L33016

DOWEL

- planetary carrier

10шт.

12

L33017

STUD

- special, planetary carrier

10шт.

13

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1/2", G5, Full Thd

4шт.

14

192-163

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

4шт.

15

L33018

BOLT

- special, Serial Range: spider-drum

10шт.

16

L33002

WASHER

- special (1/2")

10шт.

L33009

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary, Includes: Ref. 17 - 23

2шт.

17

L33012

SHAFT

- pinion

3шт.

18

211-11

BALL,3/8" Dia

- shaft retaining

3шт.

19

L33011

WASHER

- thrust

6шт.

20

L33014

ROLLER

- pinion

174шт.

21

L33015

WASHER

SPACER - pinion roller

3шт.

22

L33013

GEAR

PINION - planetary

3шт.

23

L33010

SPIDER

- planetary

1шт.

24

L33007

NUT

- spindle

4шт.

25

L33008

WASHER

- special

2шт.

NSS

NOT SOLD SEPARAT

RING GEAR AND HUB ASSEMBLY - internal, Includes: Ref. 26 - 29

2шт.

26

L33022

SCREW,1/2" - 13 x 2 3/4"

- special, internal gear

8шт.

27

L33020

GEAR WHEEL

GEAR - ring, internal

1шт.

28

L33021

HUB

- gear

1шт.

29

391-705

ELECTRICAL WIRE

WIRE - lock (18 gauge x 10" long)

4шт.

30

L33023

SHAFT

- axle

2шт.

31

A12915

ROLLER BEARING,4.25" ID x 1.375"

CONE - hub, outer

2шт.

32

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - planetary drain

2шт.

33

A12522

WHEEL NUT

- hex., special (Outer)

20шт.

34

L33033

BEARING, CONE

CONE - bearing, inner hub

2шт.

35

L33034

SEAL

- oil, hub

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 36 - 45

2шт.

L33025

HUB CAP

HUB ASSEMBLY - wheel, Includes: Ref. 36 - 38

1шт.

36

A12916

BEARING CUP

CUP - bearing, outer

1шт.

37

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

38

A28184

BEARING CUP

CUP - bearing, inner

1шт.

39

L33027

STUD

- wheel

10шт.

40

131-909

LOCK NUT,3/4"-16

NUT - wheel stud, inner

10шт.

41

L33029

GASKET

SLINGER - oil

1шт.

42

391-710

ELECTRICAL WIRE

WIRE - lock (18 gauge x 14" long) If used

3шт.

43

L33030

DRUM

- brake

1шт.

44

L33032

BOLT (SPREADER)

BOLT - special, Serial Range: drum-hub

12шт.

45

L33031

WASHER

- special

12шт.

46

114-504

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 8, Full Thd

HHCS - 9/16" - 18 NF x 1-1/2"

8шт.

46

166-1003

12 PT SCREW,Flg, 9/16" - 18 x 2", Gr 8

BOLT - ferry cap head (9/16" - 18 NF x 2")

16шт.

47

REF

INSTRUCTION

BRAKE ASSEMBLY - wheel, L.H. (Parts list Figure 110)

1шт.

47

REF

INSTRUCTION

BRAKE ASSEMBLY - wheel, R.H. (Parts list Figure 110)

1шт.

48

A43248

WASHER

- special

24шт.

49

129-558

NUT,9/16"-12, G8

- hex. (9/16" - 18 NF)

24шт.
