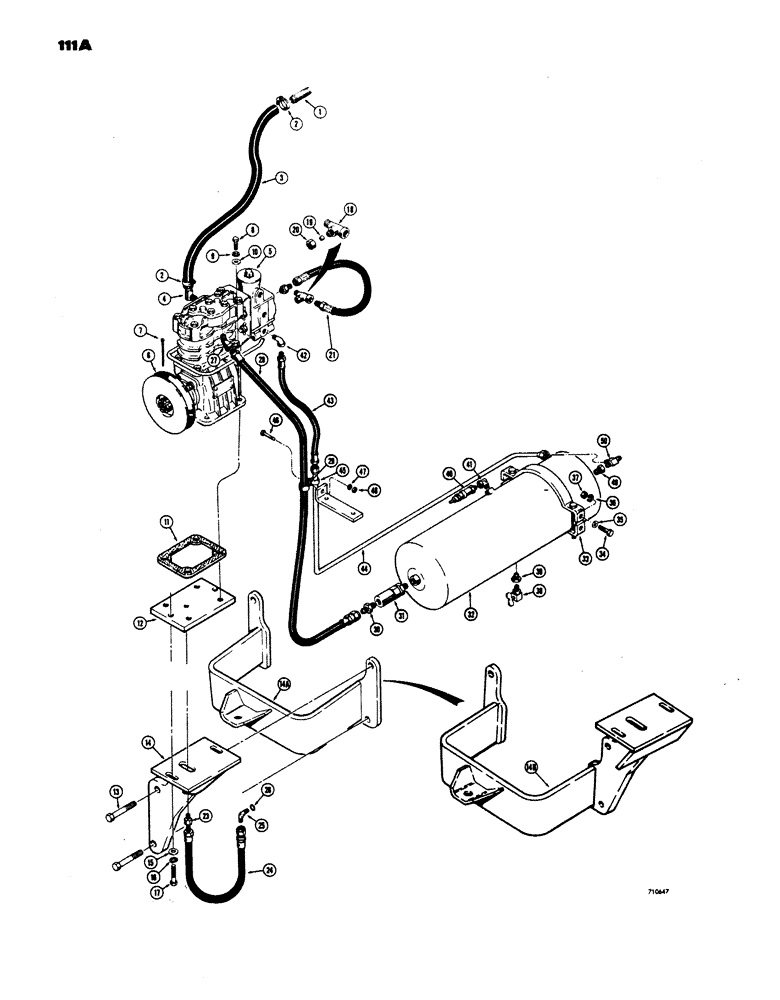

Запчасти Case W24 (111A) - BRAKE SYSTEM, AIR COMPRESSOR AND RELATED PARTS, TRACTOR SN.9107001 AND AFTER (07) - BRAKES

1

A14432

NIPPLE - hose, at air intake elbow

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

L10357

INTAKE AIR HOSE,0.75" ID x 36.00", SAE 20R1

- Air Compressor, Intake 0.75" ID x 36.00", SAE 20R1

1шт.

4

A9155

90 ELBOW

STEM - hose, 90 degree

1шт.

5

L14814

COMPRESSOR

- air (Parts list Figure 112 - 116)

1шт.

6

L14809

PULLEY

- air compressor

1шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Compressor, corner mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

11

L10354

GASKET

- mounting, Serial Range: plate-compressor

1шт.

12

L47864

PLATE ASSY.

PLATE - compressor mounting

1шт.

13

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4" (Sn. 9107001 to 9107067)

2шт.

14

L48330

BRACKET - compressor mounting (Sn., Serial Range: 9107001-9107067)

1шт.

14a

L19581

BRACKET - engine mounting (Sn., Serial Range: 9107001-9107067)

1шт.

14b

L48579

BRACKET

- engine and compressor mtg. (Tractor Sn. 9107067 and after)

1шт.

15

95-8

WASHER,1/2"

standard wrot 1/2"

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket to plate Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - flex tube, 1/4" tube, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

TEE - flex tube, 1/4" tube

1шт.

19

222-102

SLEEVE,1/4" Tube

1шт.

20

87017024

TUBE NUT,1/2"-24

NUT - flex tube, 1/4" tube

1шт.

21

L16575

HOSE

- compressor oil, inlet (17" long)

1шт.

22

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male (5/16" JIC x 1/8" NPT)

1шт.

23

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer

1шт.

24

L16574

HOSE,0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

ASSY, , Compressor Oil Return 0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

1шт.

25

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref. 26 90º, 9/16"-18, 37º x 7/16"-20, O-Ring

1шт.

26

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degree (3/8" NPT)

1шт.

28

L17177

HOSE

- air compressor, outlet (28-1/2" long)

1шт.

29

49799

GASKET

CLAMP - hose

1шт.

30

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight (5/8" JIC x 1/2" NPT)

1шт.

31

L12586

VALVE

CHECK VALVE - air reservoir

1шт.

32

L14823

TANK

RESERVOIR - air, brake system

1шт.

33

L12632

BRACKET

- reservoir

2шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

35

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

38

217-101

VALVE

DRAIN COCK - reservoir

1шт.

39

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

REDUCING BUSHING - hex. (3/8" NPT x 1/4" NPT)

1шт.

40

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

41

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree (1/4" NPT)

1шт.

42

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

43

L16690

HOSE ASSY.

HOSE - air compressor, governor outlet (12-3/4" long)

1шт.

44

L16539

TUBE

- air compressor, governor outlet

1шт.

45

49845

CLAMP

- tube

1шт.

46

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

49

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

50

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- male, run (3/8" JIC x 1/4" NPT)

1шт.
