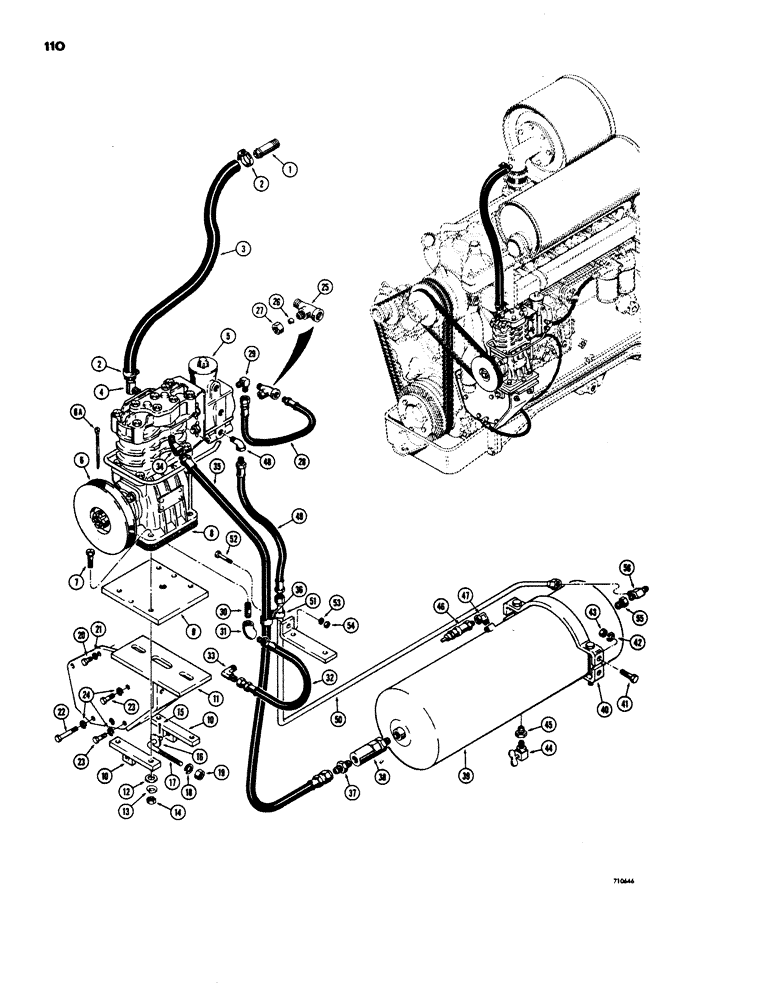

Запчасти Case W24 (110) - BRAKE SYSTEM, AIR COMPRESSOR AND RELATED PARTS, USED BEFORE TRAC. SN. 9107001 (07) - BRAKES

1

A14432

NIPPLE - hose, at air intake elbow

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

L10357

INTAKE AIR HOSE,0.75" ID x 36.00", SAE 20R1

- Air Compressor, Intake 0.75" ID x 36.00", SAE 20R1

1шт.

4

A9155

90 ELBOW

STEM - hose, 90 degree

1шт.

5

L14814

COMPRESSOR

- air (Parts list Figure 112 - 116)

1шт.

6

L14809

PULLEY

- air compressor

1шт.

6a

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Compressor, corner mtg.) Hex, 3/8"-16 x 2", G5

4шт.

7a

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8" (compressor mounting)

2шт.

8

L10354

GASKET

- mounting, Serial Range: plate-compressor

1шт.

9

L16595

BASE - compressor, crankcase

1шт.

10

L16594

BRACKET

- compressor positioning, outer

2шт.

11

L16593

BRACKET - compressor mounting, inner

1шт.

12

95-6

WASHER,3/8"

- standard wrot () 3/8"

10шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

15

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

16

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

17

L16601

BOLT

- hook type

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Bracket to gear cover) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3" (Bracket to gear cover)

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to gear cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - flex tube, 1/4" tube, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

TEE - flex tube, 1/4" tube

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - flex tube, 1/4" tube

1шт.

28

L16575

HOSE

- compressor oil, inlet (17" long)

1шт.

29

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree (5/16 " JIC x 1/8" NPT)

1шт.

30

221-134

NIPPLE, LUBE

NIPPLE - pipe, 1/4" NPT x 1-1/2"

1шт.

31

221-366

ELBOW UNION,45 Degree, 1/4" NPT

ELBOW - pipe, 45 degree (1/4" NPT)

1шт.

32

L16574

HOSE,0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

ASSY, , Compressor Oil Return 0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

1шт.

33

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree (3/8" JIC x 1/4" NPT)

1шт.

34

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degree (3/8" NPT)

1шт.

35

L17177

HOSE

- air compressor, outlet (28-1/2" long)

1шт.

36

51200329

CLIP

CLAMP - hose

1шт.

37

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight (5/8" JIC x 1/2" NPT)

1шт.

38

L12586

VALVE

CHECK VALVE - air reservoir

1шт.

39

L14823

TANK

RESERVOIR - air, brake system

1шт.

40

L12632

BRACKET

- reservoir

2шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

41a

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

44

217-101

VALVE

DRAIN COCK - reservoir

1шт.

45

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

REDUCING BUSHING - hex. (3/8" NPT x 1/4" NPT)

1шт.

46

L10392

VALVE

ASSEMBLY - safety

1шт.

47

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree (1/4" NPT)

1шт.

48

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

49

L16690

HOSE ASSY.

HOSE - air compressor, governor outlet (12-3/4" long)

1шт.

50

L16539

TUBE

- air compressor, governor outlet

1шт.

51

49845

CLAMP

- tube

1шт.

52

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

53

92-6

LOCK WASHER,3/8"

1шт.

54

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

55

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

56

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- male, run (3/8" JIC x 1/4" NPT)

1шт.
