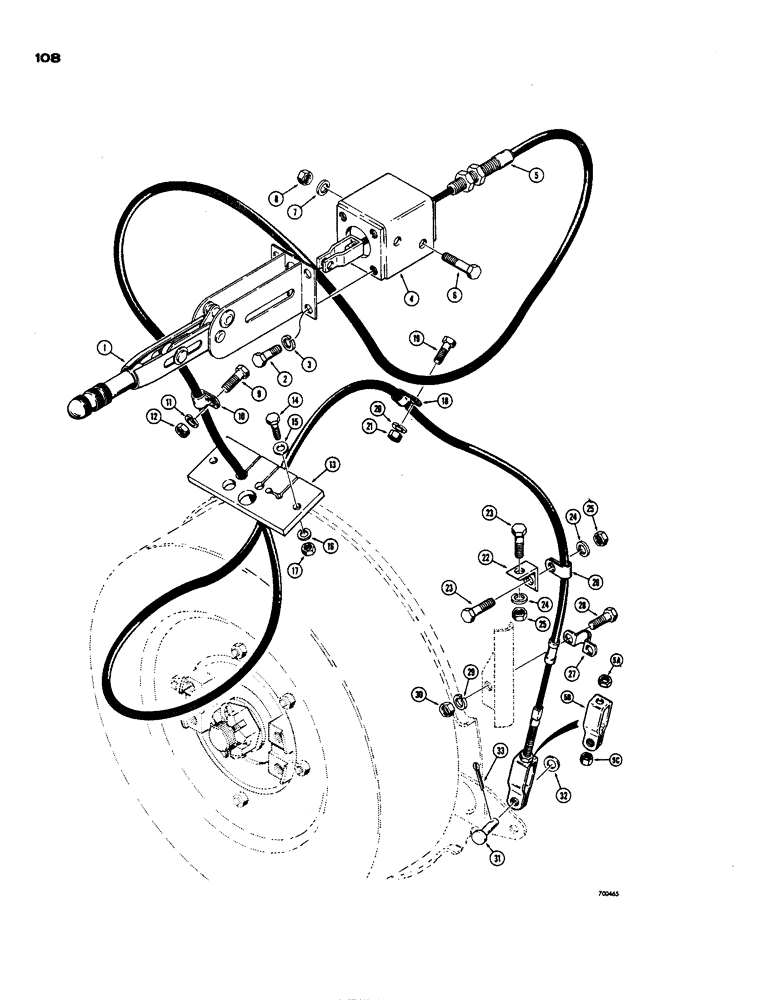

Запчасти Case W24 (108) - BRAKE SYSTEM, PARKING BRAKE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A17214
LEVER
- parking brake
1шт.
2
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
4шт.
3
92-6
LOCK WASHER,3/8"
4шт.
4
L16122
BRACKET - brake lever
1шт.
5
L16127
CABLE PULLING GRIP
CABLE ASSEMBLY - parking brake, Includes: Ref. 5A - 5C
1шт.
5a
129-122
NUT,5/16"-24, G5
1шт.
5b
L32862
CLEVIS - cable, parking brake
1шт.
5c
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
7
92-6
LOCK WASHER,3/8"
2шт.
8
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
9
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
10
49838
CLAMP
- cable
1шт.
11
92-6
LOCK WASHER,3/8"
1шт.
12
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
1шт.
13
L41568
GROMMET - cable and wiring mounting
1шт.
14
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
15
195-102
WASHER,1/4"
- standard wrot () 1/4"
2шт.
16
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
17
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
18
49838
CLAMP
- cable (Before SN 9105061)
1шт.
19
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
If used Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
20
92-6
LOCK WASHER,3/8"
if used 3/8"
1шт.
21
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC) If used
1шт.
22
L16130
ANGLE - cable clamp (Before SN 9105061)
1шт.
23
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
If used Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
24
92-6
LOCK WASHER,3/8"
if used 3/8"
2шт.
25
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC) If used
2шт.
26
49838
CLAMP
- cable (Before SN 9105061)
1шт.
27
A55980
CLAMP
- cable, parking brake
1шт.
28
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
29
92-6
LOCK WASHER,3/8"
2шт.
30
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
31
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Cable to brake lever 3/8" x 1.060"
1шт.
32
95-6
WASHER,3/8"
- standard wrot () 3/8"
1шт.
33
132-7
COTTER PIN,1/16" x 3/4"
Pin, Split (Cotter), 1/16" x 3/4"
1шт.
Выбрано товаров: 36
