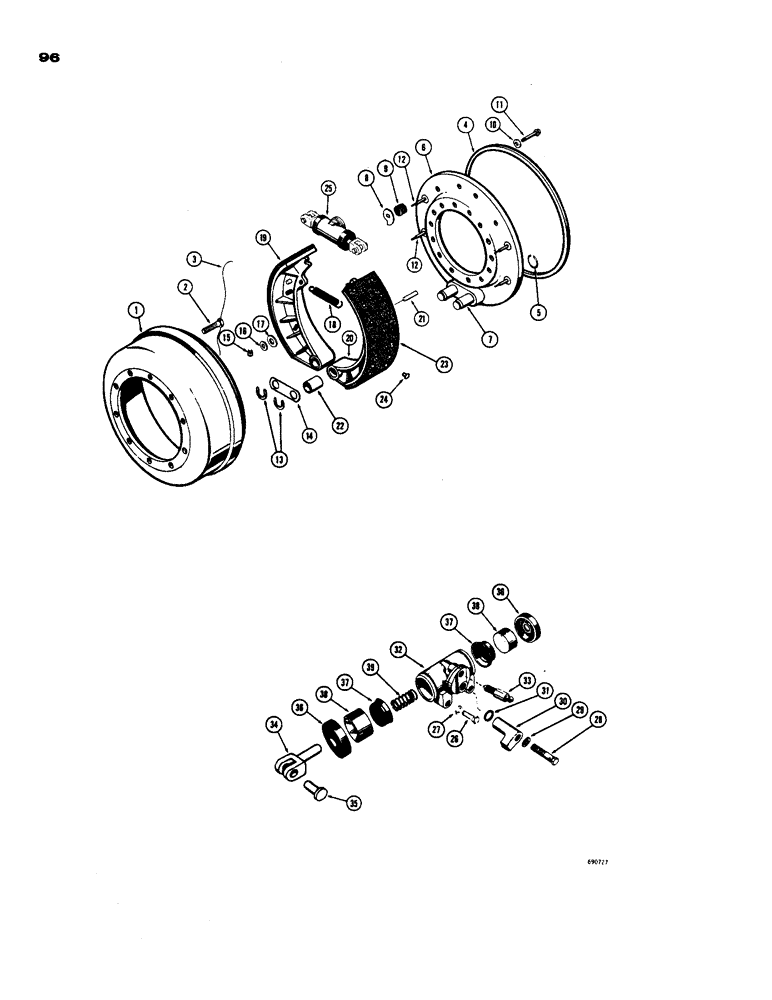

Запчасти Case W24 (096) - FRONT AXLE BRAKES, BEFORE TRACTOR SN. 9105061 (07) - BRAKES

L43496

AXLE ASSEMBLY - complete, front (PR-151-HX-42), Includes: Ref. 1 - 27

1шт.

1

A14993

DRUM BRAKE ASSY

DRUM - brake

2шт.

2

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- special (Drum mounting) 5/8" - 11 NC x 1/2" Grade 8

20шт.

3

391-634

LOCK WIRE - bolt (#16 x 60") Cut as required

1шт.

A16723

LARGE PLATE

BACKING PLATE ASSEMBLY - brake, Includes: Ref. 4 - 12

2шт.

4

A15003

SEAL

- brake drum

1шт.

5

A14997

RING, SNAP

SNAP RING - retaining, anchor pin

2шт.

6

NSS

NOT SOLD SEPARAT

BACKING PLATE - brake

1шт.

7

A15012

PIN

- anchor, brake shoe

2шт.

8

A15016

CAM

- brake shoe adjusting

2шт.

9

A15013

VALVE SPRING

SPRING - cam

2шт.

10

A15007

WASHER

- cam pin

2шт.

11

A15968

PIN ASSY.

PIN - cam adjusting

2шт.

12

A15011

PIN

- anchor, brake shoe

4шт.

13

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

LOCK - anchor pin

4шт.

14

A16724

LINK

- anchor pin

2шт.

15

A15005

WASHER

LOCK - guide pin

4-8шт.

16

A13128

WASHER

- guide pin

1шт.

17

A15006

WASHER

- guide pin

1шт.

18

A15014

FITTING

SPRING - shoe return

2шт.

19

L32724

SHOE

ASSEMBLY - brake (When stock is exhausted, order L33905 shoe assembly for service), Includes: Ref. 20 - 24

4шт.

19

L33905

SHOE

ASSEMBLY - brake, Includes: Ref. 20 - 24

4шт.

20

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

21

A15010

PIN

- stop, brake shoe

1шт.

22

A15004

BUSHING

- shoe

1шт.

23

NSS

NOT SOLD SEPARAT

LINING - brake (See Ref. No. 27A)

1шт.

24

A15060

RIVET

- brake lining (See Ref. No. 27A)

17шт.

25

L32444

CYLINDER BLOCK

WHEEL CYLINDER - brake (Parts list below)

2шт.

26

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

HHCS - 3/8" - 16 NC x 1-1/8"

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

27a

L32728

BRAKE LINING

KIT - brake lining (Includes 4 linings and 68 rivets to reline brakes for one axle) L32724 shoe only (Not shown)

1шт.

27a

L33906

BEARING,CON.ROD

KIT - brake lining (Includes 4 linings and 68 rivets to reline brakes for one axle (L33905 shoe only) Not shown

1шт.

L32444

CYLINDER BLOCK

WHEEL CYLINDER - brake, L32444, Includes: Ref. 28 - 39

2шт.

28

A12926

BOLT

- special, L32444 wheel cylinder

1шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, L32444 wheel cylinder

1шт.

30

A12925

FITTING

- wheel cylinder, L32444

1шт.

31

33260

GASKET

- fitting, inner, L32444 wheel cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - wheel cylinder, L32444

1шт.

33

115001

BLEEDER - brake lines, L32444 wheel cylinder

1шт.

A14996

LINK

ROD AND YOKE ASSEMBLY - push, brake, L32444 wheel cylinder, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

ROD AND YOKE - push, brake, L32444 wheel cylinder

1шт.

35

A14999

PIN - yoke, L32444 wheel cylinder

1шт.

A14994

KIT

- boot and cup, wheel cylinder (When stock is exhausted, order L33783 kit for service), L32444, Includes: Ref. 36 and 37

1шт.

L33783

KIT

- boot and cup, wheel cylinder, L32444 wheel cylinder, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

BOOT - wheel cylinder, L32444 wheel cylinder

2шт.

37

NSS

NOT SOLD SEPARAT

CUP - piston, L32444 wheel cylinder

2шт.

38

A15000

PISTON ASSY.

PISTON - wheel cylinder, L32444

2шт.

39

A14995

SPRING

- piston return, L32444 wheel cylinder

2шт.
