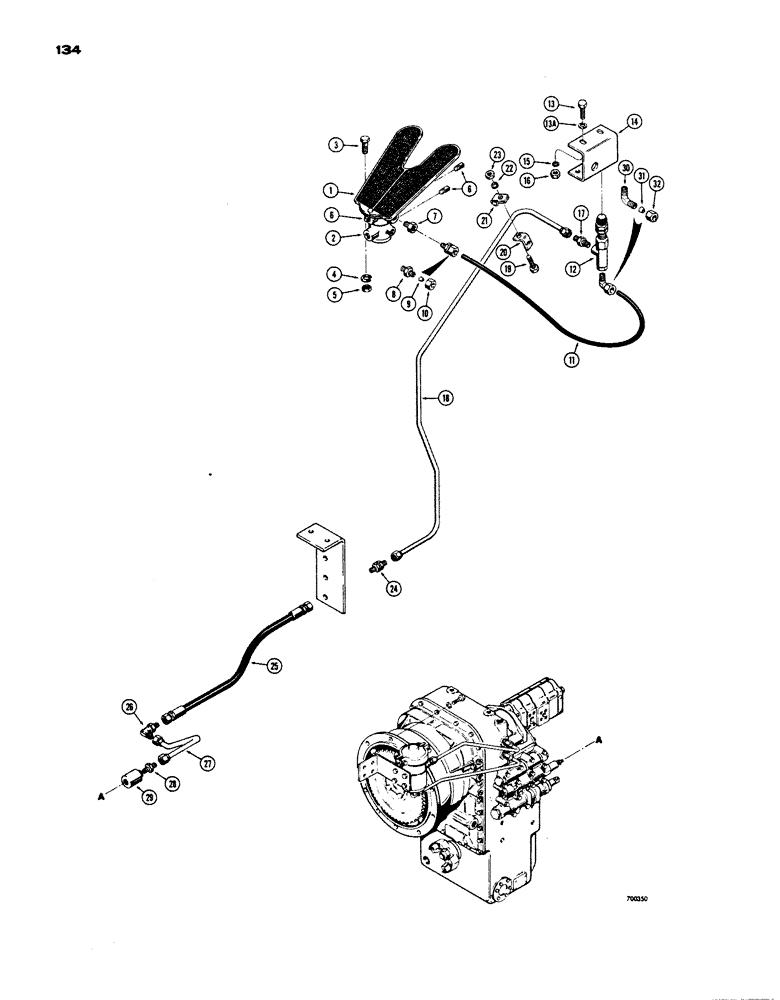

Запчасти Case W24 (134) - CLUTCH CUT OUT PARTS (06) - POWER TRAIN

1

REF

INSTRUCTION

TREADLE ASSY - brake (See Figure 126 for proper valve)

1шт.

2

L15782

BRAKE VALVE

Control, brake (Parts list Figure 126)

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Treadle mounting)

3шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

3шт.

6

NH772441

PLUG,Sq Hd, 3/8" NPTF, Brass

Pipe, square head (1/2" NPT)

3шт.

7

217-47

BUSHING,1/2" - 14 NPTF x 1/8" - 27 Fem NPTF

REDUCING, hex, pipe

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - tube, 1/4" tube, Includes Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

CONNECTOR - tube, 1/4" tube

1шт.

9

222-5047

SLEEVE,1/4" Tube

1шт.

10

222-5060

NUT,1/2"-20

1/4" tube

1шт.

11

L16535

TUBE,0.25" OD x 20.5" L

Brake control valve to clutch cutout control valve

1шт.

12

L14818

VALVE

Control, clutch cutout (Parts list Figure 130)

1шт.

13

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

(Bracket mounting)

2шт.

13a

95-4

WASHER,1/4"

Standard wrot

2шт.

14

L44127

BRACKET

Clutch cutout valve mounting

1шт.

15

92-5

LOCK WASHER,5/16"

med. sect. lock (1/4")

2шт.

16

25-104

NUT,1/4"-20, G5

2шт.

17

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter

1шт.

18

L44126

TUBE

To clutch cutout valve, lower port

1шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clamp mounting

1шт.

20

L16533

SPARE PART Clamp mounting

1шт.

21

49845

CLAMP

Tube

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

Hex

1шт.

24

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

24a

T39179

LOCK NUT

2шт.

25

L15774

HOSE

Air, front to rear frame (20 - 1/2" long)

1шт.

26

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Tube

1шт.

27

L16515

TUBE

Elbow to clutch cutout cylinder

1шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER

1шт.

29

L12627

CYLINDER

Clutch cutout

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - tube, 1/4" tube, Includes Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

ELBOW - tube, 1/4" tube

1шт.

31

222-5047

SLEEVE,1/4" Tube

1шт.

32

222-5060

NUT,1/2"-20

1/4" tube

1шт.
