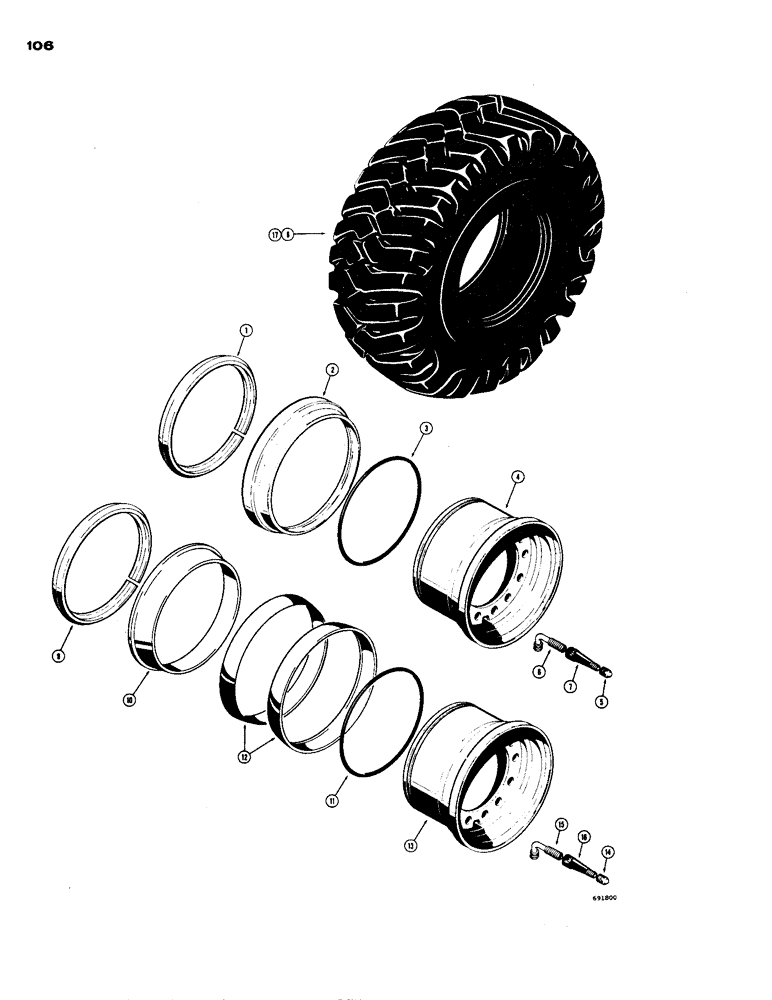

Запчасти Case W24 (106) - RIMS AND TIRES, USED ON MODELS WITH 17.50 X 25-12 AND 16 PLY TIRES (06) - POWER TRAIN

1

A19100

LOCKING RING

4шт.

2

A19099

RING

Side, rim

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

Seal

4шт.

4

L18531

SPARE PART RIM - tire (Before tractor S/N 9105061) When stock is exhausted, order L47937 tire rim for service

4шт.

4

L47937

WHEEL

RIM - tire (Before tractor S/N 9105061) Service replacement

4шт.

4

L47636

RIM

WHEEL Tire (Tractor S/N 9105061 and after)

4шт.

5

L19664

VALVE STEM

CAP - valve

1шт.

5

L33706

VALVE

CAP (Tires without adapter)

3шт.

6

L11405

VALVE

Tubeless tire, elbow

4шт.

7

L11406

ADAPTER

Tire valve

1шт.

8

REF

INSTRUCTION

TIRE - articulated loader, 17.50 x 25 - 12 and 16 ply tires

4шт.
