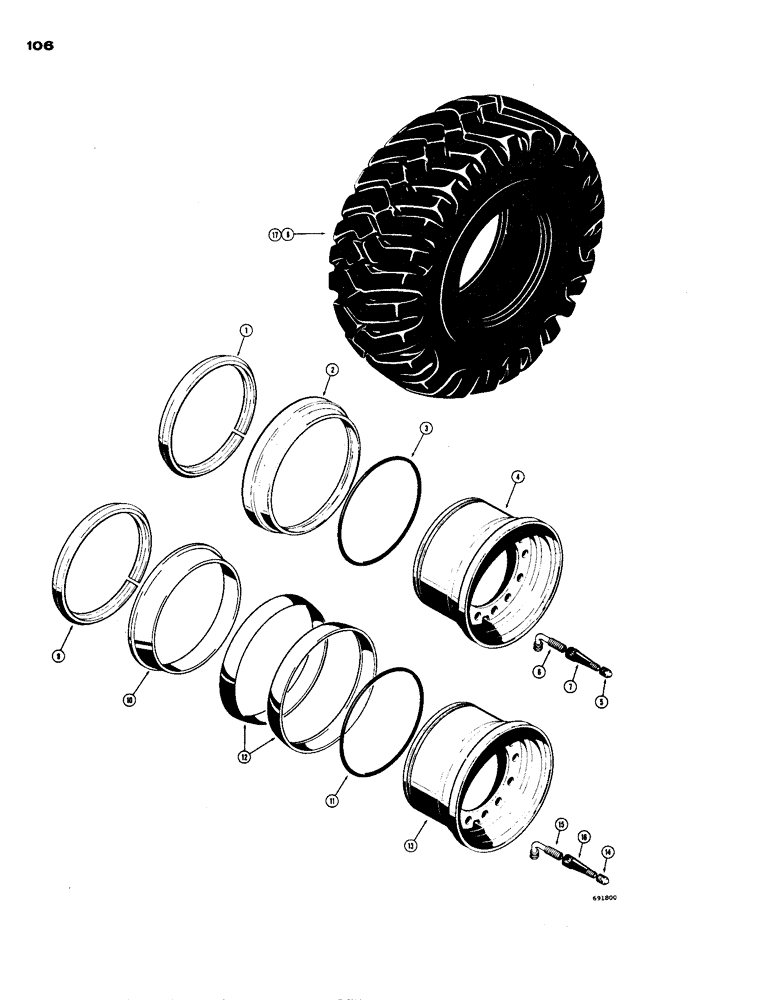

Запчасти Case W24 (106[1]) - RIMS AND TIRES, USED ON MODELS WITH 20.50 X 25-12 AND 16 PLY TIRES (06) - POWER TRAIN

1

A19100

LOCKING RING

Four piece wheel assembly

4шт.

2

L12685

RING

Side, rim, four piece wheel assembly

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

Seal, four piece wheel assembly

4шт.

4

L18533

SPARE PART RIM - tire (Before tractor S/N 9105061), four piece wheel assembly

4шт.

4

L26904

RIM

WHEEL Tire (Tractor S/N 9105061 and after), four piece wheel assembly

4шт.

5

L19664

VALVE STEM

CAP - valve, four piece wheel assembly

1шт.

5

L33706

VALVE

CAP (Tires without adapter), four piece wheel assembly

3шт.

6

L11405

VALVE

Tubeless tire, elbow, four piece wheel assembly

4шт.

7

L11406

ADAPTER

Tire valve, four piece wheel assembly

1шт.

8

REF

INSTRUCTION

TIRE - articulated loader, 20.50 x 25 - 12 and 16 ply tires, four piece wheel assembly

4шт.

9

A19100

LOCKING RING

Six piece wheel assembly

4шт.

10

L45222

RING - bead set, six piece wheel assembly

4шт.

11

A19101

O-RING,6.6mm Thk x 590.55mm ID

Seal, six piece wheel assembly

4шт.

12

A16422

BACK-UP RING

Side, rim, six piece wheel assembly

8шт.

13

NSS

NOT SOLD SEPARAT

RIM - tire (supply L18533), six piece wheel assembly

4шт.

14

L19664

VALVE STEM

CAP - valve adapter, six piece wheel assembly

1шт.

14

L33706

VALVE

CAP (Tires without adapter), six piece wheel assembly

3шт.

15

L11405

VALVE

Tubeless tire, six piece wheel assembly

4шт.

16

L11406

ADAPTER

Valve, six piece wheel assembly

1шт.

17

REF

INSTRUCTION

TIRE - articulated loader, 20.50 x 25 - 12 and 16 ply tires, six piece wheel assembly

4шт.
