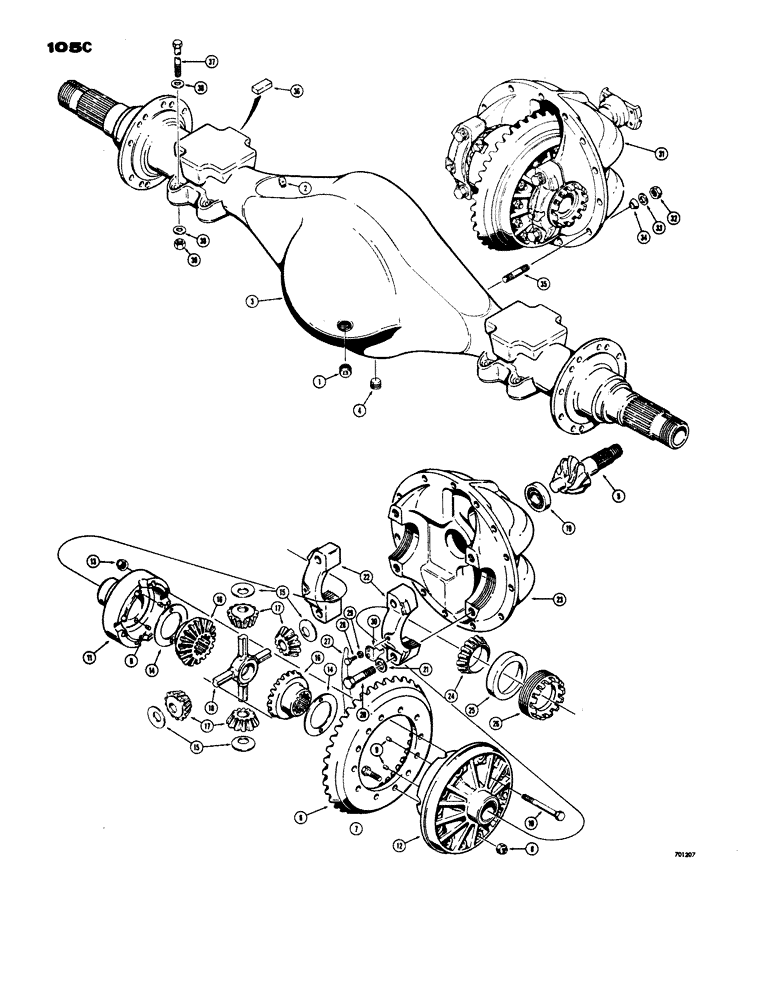

Запчасти Case W24 (105C) - L26857 REAR AXLE AND DIFFERENTIAL, PINION, RING GEAR AND DIFFERENTAL CASE TRAC SN. 9105061 AND AFTER (06) - POWER TRAIN

L26857

SPARE PART ASSEMBLY - complete, rear, Includes: Ref. 1 - 35

1шт.

1

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

Filler, housing

1шт.

2

A12928

BREATHER

Axle housing

1шт.

3

L33081

HOUSING

Axle

1шт.

4

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

Housing

1шт.

L33082

DIFF CARRIER & GEARS

ASSEMBLY - Axle (When stock is exhausted, order L35249 differential for service), Includes: Ref. 5 - 31

1шт.

L35249

DIFF CARRIER & GEARS

ASSEMBLY - Axle, Includes: Ref. 5 - 31

1шт.

L33083

DIFFERENTIAL

ASSEMBLY - Axle, Includes: Ref. 5 - 18

1шт.

NLS

NO LONGER SERVICED

SET - pinion and ring gear (Matched set), Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

7

L33044

BOLT

Special, ring, Serial Range: gear-case

12шт.

8

131-719

NUT

Special, ring, Serial Range: gear-case

12шт.

L33046

HOUSING

BODY ASSEMBLY - differential, Includes: Ref. 9 - 18

1шт.

L33047

SET

KIT - differential halves, Includes: Ref. 9 - 15

1шт.

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - differential, Includes: Ref. 9 - 13

1шт.

9

L33049

PIN

SPARE PART Dowel

4шт.

10

L33050

BOLT

Special, case mounting

8шт.

11

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

12

NSS

NOT SOLD SEPARAT

CASE - flanged half

1шт.

13

131-719

NUT

Special, case mounting

8шт.

14

L33055

WASHER

Thrust, side gear

2шт.

15

L33054

WASHER

Thrust, pinion

4шт.

16

L33052

GEAR

Side, differential

2шт.

17

L33051

PINION

Differential

4шт.

18

L33053

U-JOINT SPIDER

Differential

1шт.

19

L33062

ROLLER BEARING

Pinion, inner

1шт.

L33058

CARRIER

AND CAP ASSEMBLY - Differential, Includes: Ref. 20 - 23

1шт.

20

L33909

BOLT

Special

4шт.

21

194-114

WASHER

Special, lock (7/8")

4шт.

22

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

23

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

24

40398

ROLLER BEARING,3" ID x 1.2205"

CONE - Differential

2шт.

25

ST968

BEARING CUP,3" ID x 1.7875"

CUP - Differential

2шт.

26

L33910

NUT

Adjusting, special

2шт.

27

391-711

SPARE PART Bolt (18 gauge x 18" long) If used

2шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

L33057

LOCK

Adjusting nut

2шт.

31

REF

INSTRUCTION

CAGE AND COMPANION FLANGE - differential (Parts list page 105B)

1шт.

32

129-545

NUT,1/2"-20, G8

14шт.

33

L33002

WASHER

Special

14шт.

34

L33016

DOWEL

Carrier

3шт.

35

L33041

STUD

Differential carrier to axle housing

14шт.

36

L26838

SPARE PART Shear, axle mounting

4шт.

37

116-902

BOLT,Hex, 1" - 14 x 9", Gr 8

8шт.

38

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Special

16шт.

39

131-188

LOCK NUT,1"-14, GB

8шт.
