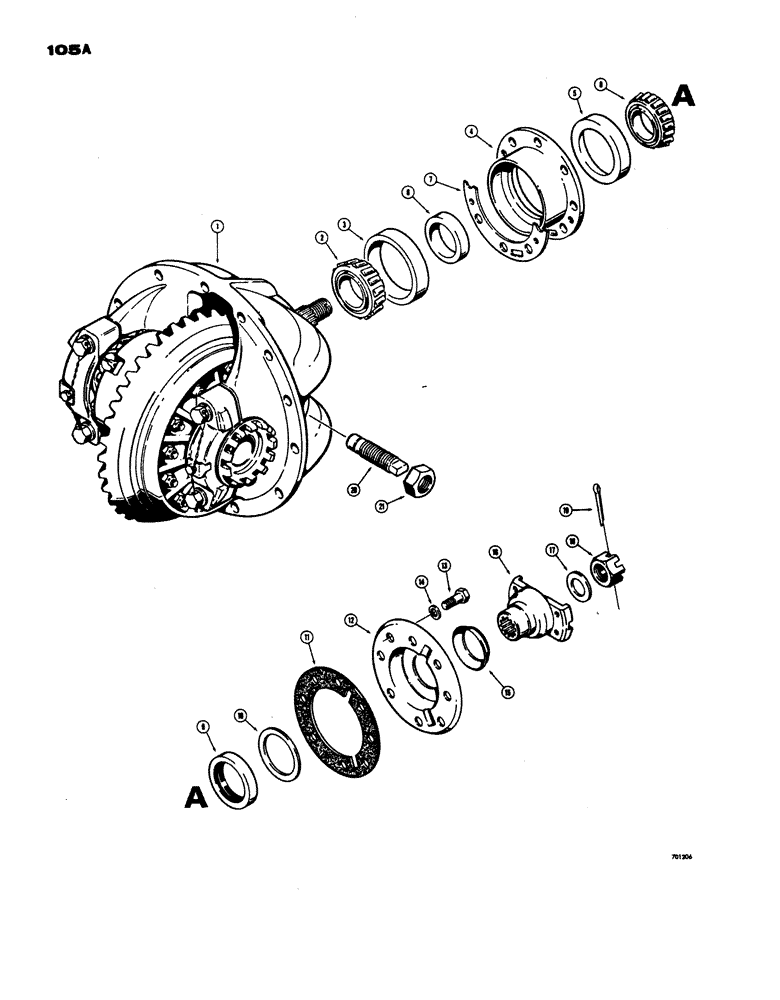

Запчасти Case W24 (105A) - L26857 REAR AXLE & DIFFERENTIAL,PINION BEARINGS & BEARINGS & COMPANION FL. TRAC. SN. 9105061 & AFTER (06) - POWER TRAIN

L26857

SPARE PART ASSEMBLY - Complete, rear, Includes: Ref. 1 - 21

1шт.

L33082

DIFF CARRIER & GEARS

ASSEMBLY - Axle (When stock is exhausted, Order L35249 differential for service), Includes: Ref. 1 - 21

1шт.

L35249

DIFF CARRIER & GEARS

ASSEMBLY - Axle, Includes: Ref. 1 - 21

1шт.

1

REF

INSTRUCTION

CASE AND INTERNAL GEARING - differential (Parts list figure 105D)

1шт.

2

A25167

ROLLER BEARING,2" ID x 1.25"

CONE, Pinion (Center)

1шт.

L33085

CAGE AND CUP ASSEMBLY - pinion, Used with L33087 seal retainer only (When stock is exhausted, order (1) L33063 cage and cup assembly, (1) L35251 retainer, (7) 113-510 bolts, (1) 113-2409 bolt and (1) L35250 seal for service), Includes: Ref. 3 - 5

1шт.

L33063

CAGE

AND CUP ASSEMBLY - pinion, Used with L35251 seal retainer only, Includes: Ref. 3 - 5

1шт.

3

A25168

BEARING CUP

CUP, Pinion (Center)

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - bearing, pinion

1шт.

5

A12949

BEARING CUP

CUP, Pinion (Outer)

1шт.

6

L33064

BUSHING

SPACER AND SHIM KIT - bearing, pinion

1шт.

7

L33065

SHIM

Bearing cage, pinion (.004" thick)

1шт.

7

L33066

SHIM

Bearing cage, pinion (.007" thick) When stock is exhausted, order L35911 shim for service

1шт.

7

L35911

SHIM

Bearing cage, pinion (Medium)

1шт.

7

L33067

SHIM

Bearing cage, pinion (.010" thick) When stock is exhausted, order L35912 shim for service

1шт.

7

L35912

SHIM

Bearing cage, pinion (Thick)

1шт.

8

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE, outer

1шт.

9

L33070

SEAL

Oil, pinion (Used with L33087 seal retainer only)

1шт.

9

L35250

OIL SEAL

Oil, pinion (Used with L35251 seal retainer only)

1шт.

10

L33086

GASKET

Oil seal, pinion (Used with L33087 seal retainer only)

1шт.

11

L33068

GASKET

Retainer, pinion oil seal

1шт.

12

L33087

RETAINER

Pinion oil seal (3/32" thick stamped form) If used

1шт.

12

L35251

RETAINER

Pinion oil seal (3/4" thick casting) If used

1шт.

13

113-478

HHCS - 1/2" - 13 NC x 1-3/4" (If used)

1шт.

13

113-479

BOLT

HHCS - 1/2" - 13 NC x 2-1/4" (If used)

1шт.

13

113-504

CAPSCREW

9/16" - 12 NC x 1-3/4" (If used)

7шт.

13

113-505

HHCS - 9/16" - 12 NC x 2-1/4" (If used)

7шт.

14

92-8

LOCK WASHER,1/2"

1шт.

14

92-9

BEARING WASHER,9/16"

7шт.

15

L33088

GUARD

SHIELD - dust, pinion

1шт.

16

L33089

FLANGE - companion

1шт.

17

L33026

WASHER

Pinion shaft

1шт.

18

L33097

NUT

Pinion shaft

1шт.

19

132-126

COTTER PIN,7/32" x 2"

1шт.

20

L33061

SCREW,1 1/8" - 12 x 4 1/4"

Thrust, special

1шт.

21

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

(1-1/2" - 12 NF)

1шт.
