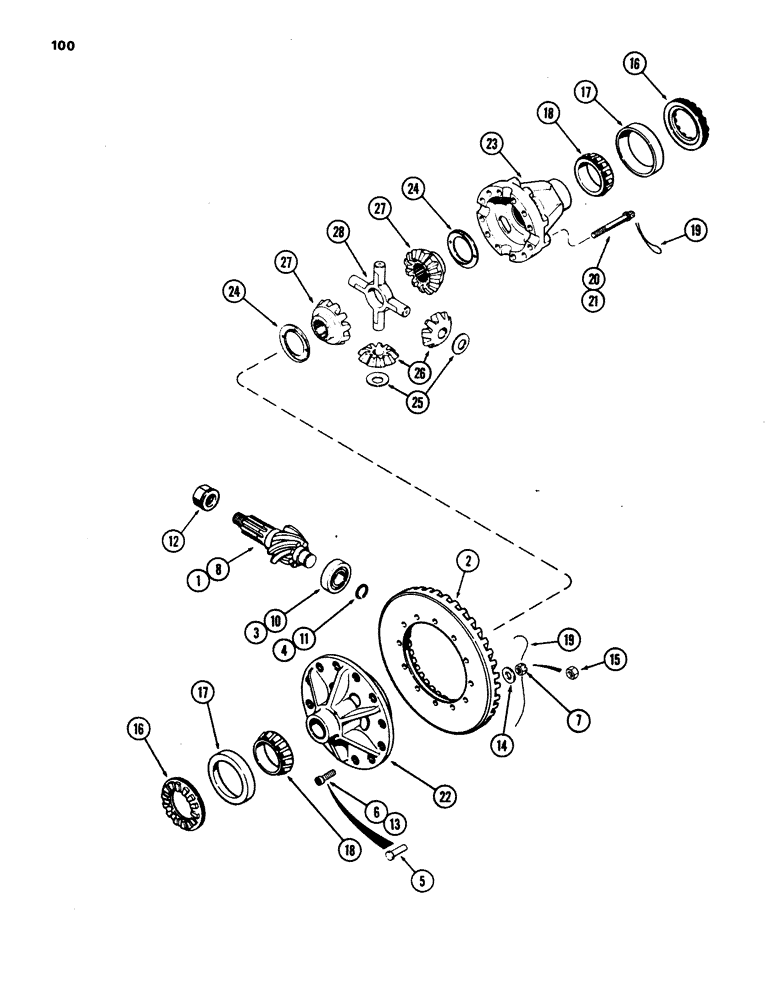

Запчасти Case W24 (100) - REAR AXLE DIFFERENTIAL, PINION RING GEAR AND DIFFERENTIAL CASE BEFORE TRAC SN.9105061 (06) - POWER TRAIN

L43497

AXLE ASSEMBLY - complete, rear (PR-107-HX-40), Includes: Ref. 1 - 28

1шт.

L34008

GEAR SET

- pinion and ring gear (Matched set) When stock is exhausted, order L36018 bevel gear repair kit for service, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

3

L30387

ROLLER BEARING

BEARING - pinion, pilot

1шт.

4

A15442

LOCK

RING - retaining, pilot bearing

1шт.

5

A16437

BOLT

RIVET - drive gear to differential case (If used)

12шт.

6

D47597

BOLT

- special, drive gear to differential case (If used)

12шт.

7

129-282

SLOTTED NUT

- hex., slotted (1/2" - 20 NF) If used

12шт.

L36018

RING GEAR

BEVEL GEAR SET ASSEMBLY - repair kit, Includes: Ref. 8 - 15

1шт.

L36019

GEAR

BEVEL GEAR SET - pinion and ring gear, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - bevel

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

10

L30387

ROLLER BEARING

BEARING - spigot

1шт.

11

A15442

LOCK

RING - lock

1шт.

12

L35091

NUT

NUT - flange retaining

1шт.

13

L35919

BOLT

-bevel gear mounting

12шт.

14

D47366

WASHER

- special

12шт.

15

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., lock (1/2" - 13 NC)

12шт.

16

A12942

GASKET

NUT - retaining, pinion bearing

2шт.

17

A12946

BEARING CUP

CUP - bearing, differential

2шт.

18

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential

2шт.

19

391-620

LOCK,#16 Ga x 12"

WIRE - bolt (#16 x 12" long) Cut as required

1шт.

L30670

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - rear axle, Includes: Ref. 20 - 28

1шт.

20

L30668

SCREW

BOLT - special, differential case (Long)

8шт.

21

L30667

BOLT

- special, differential case (Short)

4шт.

22

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

24

A12979

WASHER

- thrust, side gear

2шт.

25

A12976

WASHER

- thrust, pinion

4шт.

26

A12975

GEAR

- pinion

4шт.

27

A12978

GEAR

- side

2шт.

28

A12974

U-JOINT SPIDER

SPIDER - differential

1шт.
