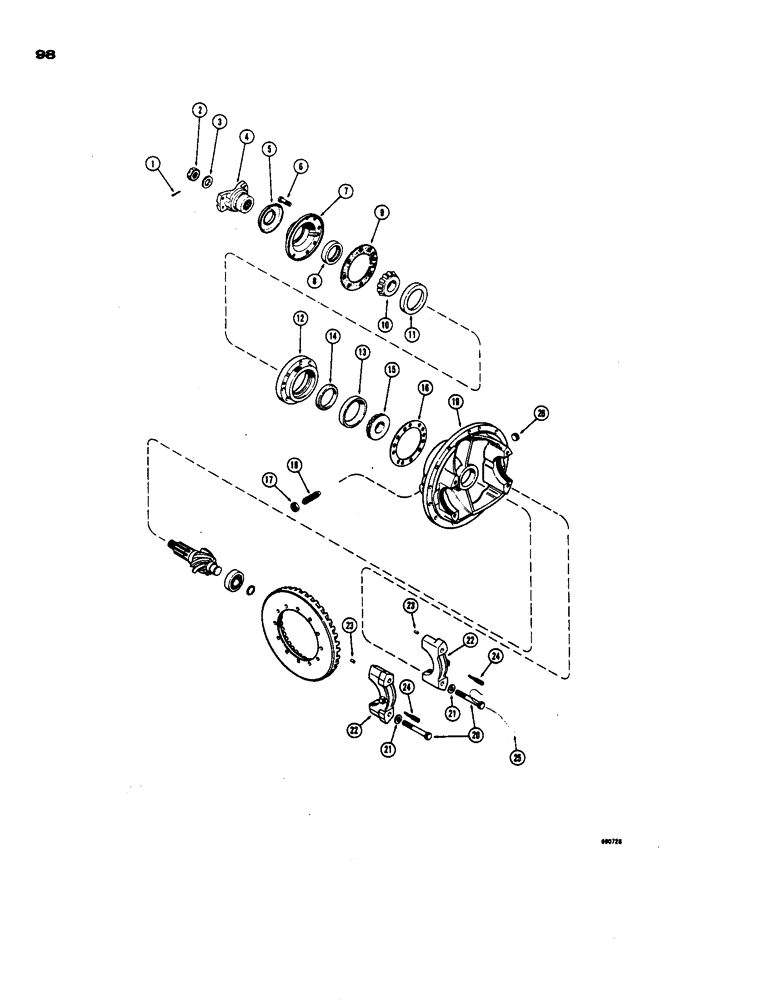

Запчасти Case W24 (098) - REAR AXLE DIFFERENTIAL, DRIVE SHAFT YOKE, CAGE AND CARRIER BEFORE TRACTOR SN.9105061 (06) - POWER TRAIN

L43497

AXLE ASSEMBLY - complete, rear (PR-107-HX-40), Includes: Ref. 1 - 26

1шт.

2

L30731

SLOTTED NUT

- hex., special (Slotted) Yoke mounting (When stock is exhausted, order L35091 nut for service)

1шт.

2

L35091

NUT

NUT - hex., self locking (Included in L36018 bevel gear kit, repair kit, illustrated on Figure 100 Ref. no. 12)

1шт.

3

A13124

WASHER

- yoke retaining

1шт.

L32491

YOKE

ASSEMBLY - rear axle drive shaft, Includes: Ref. 4 - 26

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - rear axle drive shaft

1шт.

5

A12952

CYLINDER END CAP

SLINGER - oil

1шт.

6

113-246

HHCS - 3/8" - 16 NC x 1-3/4"

8шт.

A12954

COVER ASSY

COVER ASSEMBLY - pinion shaft, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

L34024

SEAL,60.33mm ID x 85.27mm OD x 11.53mm Thk

- oil

1шт.

9

A12955

GASKET

-, Serial Range: cover-cage

1шт.

10

L35493

CONE

- bearing, cage (Outer)

1шт.

A12959

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - bearing, cage (Outer)

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

13

NSS

NOT SOLD SEPARAT

CUP - bearing, cage (Inner)

1шт.

14

A12960

SPACER

- bearing (.219" thick)

1шт.

14

A12961

SPACER

- bearing (.220" thick)

1шт.

14

A12962

SPACER

- bearing (.221" thick)

1шт.

14

A12963

SPACER

- bearing (.222" thick)

1шт.

14

A12964

SPACER

- bearing (.223" thick)

1шт.

14

A12965

SHIM,.224" Thk

SPACER, , Bearing .224" Thk

1шт.

14

A12966

SPACER

- bearing (.230" thick)

1шт.

14

A12967

SPACER

- bearing (.236" thick)

1шт.

14

A12968

SPACER

- bearing (.242" thick)

1шт.

14

A12969

SPACER

- bearing (.248" thick)

1шт.

14

A12970

SPACER

- bearing (.254"thick)

1шт.

15

L35488

ROLLER BEARING,47.638 mm ID x 30.365 mm

CONE - bearing, cage (Inner)

1шт.

16

A12958

SHIM,.003" Thk

Cage .003" Thk

1шт.

16

A12956

SHIM,.005" Thk

Cage .005" Thk

1шт.

16

A12957

SHIM,.010" Thk

Cage .010" Thk

1шт.

17

A13121

X

NUT - adjusting screw locking

1шт.

18

L30949

SCREW

- adjusting, drive gear

1шт.

L30220

CARRIER

AND CAP ASSEMBLY - differential, rear, Includes: Ref. 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential, rear

1шт.

20

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - special

4шт.

21

L30737

WASHER

- bolt

4шт.

22

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - differential, Includes: Ref. 23

2шт.

23

A15443

DOWEL

- cap

2шт.

24

A18196

HARDWARE

PIN - lock, bearing adjusting nut (When lock pin is removed for repairs, replace with new pin)

2шт.

25

321-620

DECAL

LOCK WIRE - bolt (#16 x 12" long) Cut as required

1шт.

26

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

1

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , If used 1/8" x 1 3/4"

1шт.
