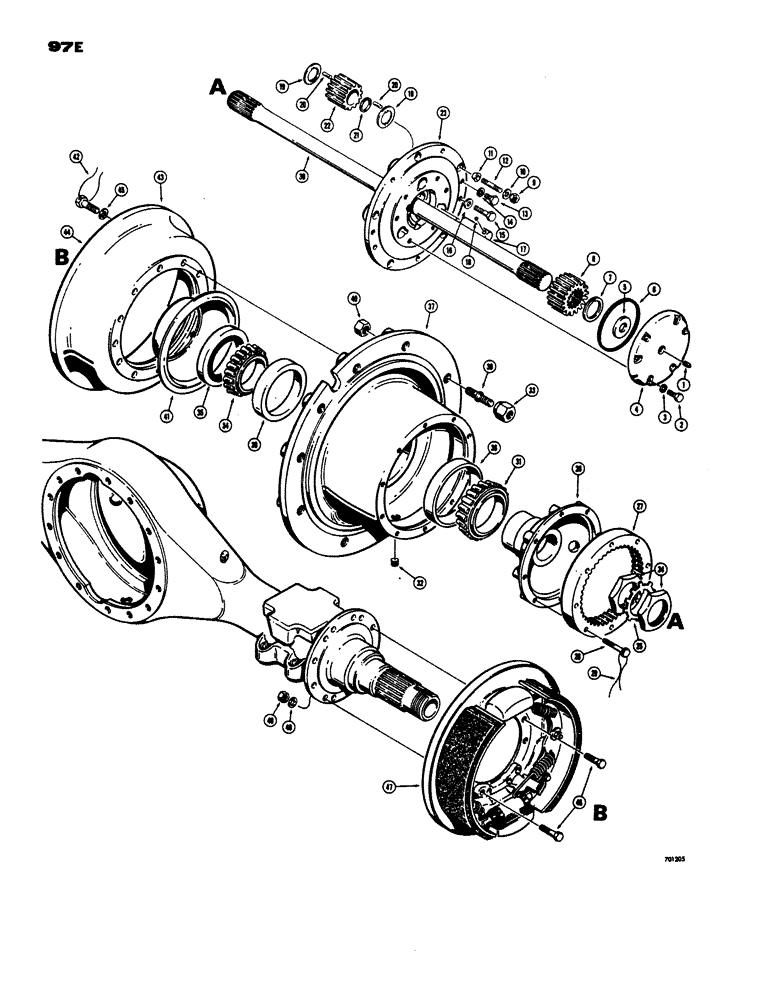

Запчасти Case W24 (097E) - L26856 FRONT AXLE AND PLANETARY, TRACTOR SN 9105061 AND AFTER (06) - POWER TRAIN

L26856

SPARE PART ASSEMBLY - complete, front, Includes: Ref. 1 - 49

1шт.

1

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

Oil level

2шт.

2

113-331

NUT,Hex, 7/16"-14 x 1 1/4", G5, Full Thd

HHCS

12шт.

3

L33003

WASHER

SPARE PART Special

12шт.

L33000

COVER

SPARE PART ASSEMBLY - planetary, Includes: Ref. 4 - 45

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

5

L33001

WASHER

Thrust, sun gear

1шт.

6

L33004

SEALING RING

RING - planetary cover

2шт.

7

L33005

RING

Retaining, sun gear

2шт.

8

L33006

GEAR

Sun

2шт.

9

129-545

NUT,1/2"-20, G8

10шт.

10

L33002

WASHER

Special (1/2")

10шт.

11

L33016

DOWEL

Planetary carrier

10шт.

12

L33017

STUD

Special, planetary carrier

10шт.

13

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

If used

4шт.

14

192-163

LOCK WASHER,1/2"

If used

4шт.

15

L33018

BOLT

Special, Serial Range: spider-drum

10шт.

16

L33002

WASHER

Special (1/2")

10шт.

L33009

U-JOINT SPIDER

ASSEMBLY - planetary, Includes: Ref. 17 - 23

2шт.

17

L33012

SHAFT

Pinion

3шт.

18

211-11

BALL,3/8" Dia

Shaft retaining

3шт.

19

L33011

WASHER

Thrust

6шт.

20

L33014

ROLLER

Pinion

174шт.

21

L33015

WASHER

SPACER - pinion roller

3шт.

22

L33013

GEAR

PINION - planetary

3шт.

23

L33010

SPIDER

Planetary

1шт.

24

L33007

NUT

Spindle

4шт.

25

L33008

WASHER

Special

2шт.

NSS

NOT SOLD SEPARAT

RING GEAR AND HUB ASSEMBLY - internal, Includes: Ref. 26 - 29

2шт.

26

L33022

SCREW,1/2" - 13 x 2 3/4"

Special, internal gear

8шт.

27

L33020

GEAR WHEEL

Ring, internal

1шт.

28

L33021

HUB

Gear

1шт.

29

391-705

ELECTRICAL WIRE

WIRE Lock (18 gauge x 10" long)

4шт.

30

L33023

SHAFT

Axle

2шт.

31

A12915

ROLLER BEARING,4.25" ID x 1.375"

Hub, outer

2шт.

32

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

Planetary

2шт.

33

A12522

WHEEL NUT

Hex., special (Outer)

20шт.

34

L33033

BEARING, CONE

Inner hub

2шт.

35

L33034

SEAL

Oil, hub

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 36 - 38

2шт.

L33025

HUB CAP

ASSEMBLY - wheel, Includes: Ref. 36 - 38

1шт.

36

A12916

BEARING CUP

Bearing, outer

1шт.

37

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

38

A28184

BEARING CUP

CUP, inner

1шт.

39

L33027

STUD

Wheel

10шт.

40

131-909

LOCK NUT,3/4"-16

Wheel stud, inner

10шт.

41

L33029

GASKET

SLINGER - oil

1шт.

42

391-710

ELECTRICAL WIRE

WIRE Lock (18 gauge x 14" long) If used

3шт.

43

L33030

DRUM

Brake

1шт.

44

L33032

BOLT (SPREADER)

Special, Serial Range: drum-hub

12шт.

45

L33031

WASHER

Special

12шт.

46

114-504

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 8, Full Thd

8шт.

46

166-1003

12 PT SCREW,Flg, 9/16" - 18 x 2", Gr 8

9/16"-18 NF x 2"

16шт.

47

REF

INSTRUCTION

BRAKE ASSEMBLY - wheel, LH (Parts list Figure 105E)

1шт.

47

REF

INSTRUCTION

BRAKE ASSEMBLY - wheel, RH (Parts list Figure 105E)

1шт.

48

L33035

X

WASHER - special

24шт.

49

129-558

NUT,9/16"-12, G8

Hex. (9/16"-18 NF)

24шт.
