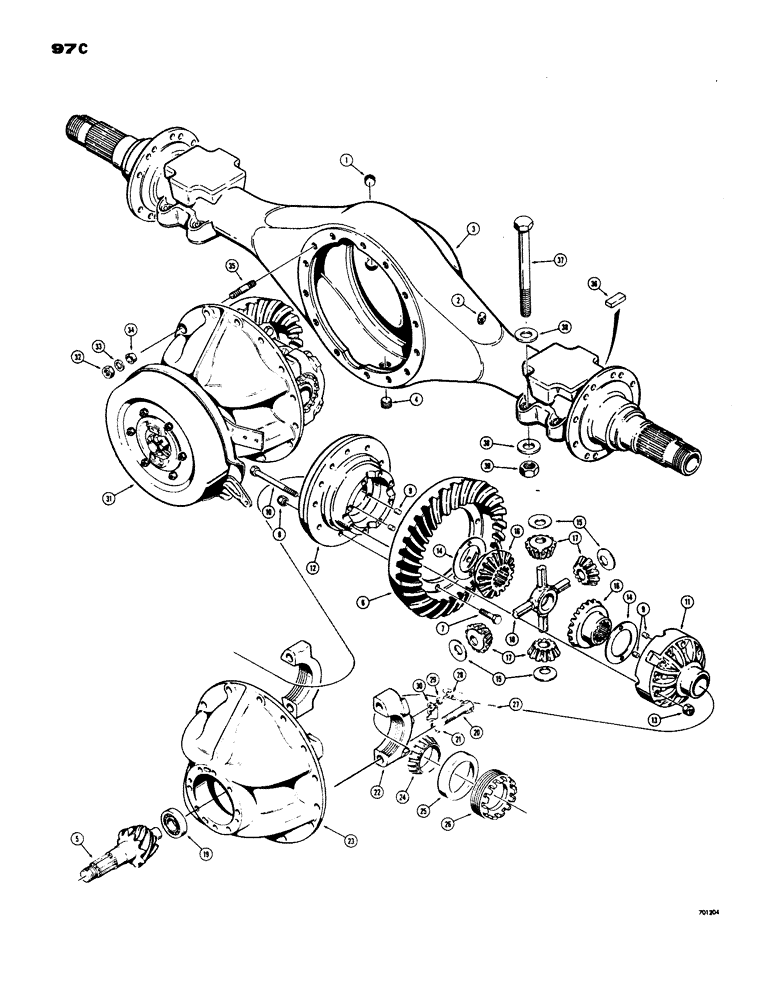

Запчасти Case W24 (097C) - L26856 FRONT AXLE AND DIFFERENTIAL, PINION, RING GEAR & DIFFERENTAL CASE TRAC SN. 9501061 AND AFTER (06) - POWER TRAIN

L26856

SPARE PART ASSEMBLY - complete, front, Includes: Ref. 1 - 35

1шт.

1

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

Filler, housing

1шт.

2

A12928

BREATHER

Axle housing

1шт.

3

L33038

HOUSING - axle

1шт.

For service order N9381 housing kit.

1шт.

4

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

Housing

1шт.

L33042

SPARE PART AND CARRIER ASSEMBLY - axle, Includes: Ref. 5 - 31

1шт.

L33043

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 5 - 18

1шт.

L33039

SPARE PART Pinion and ring gear (Matched set), Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

7

L33044

BOLT

Special, ring, Serial Range: gear-case

12шт.

8

131-719

NUT

Special, ring, Serial Range: gear-case

12шт.

L33046

HOUSING

BODY ASSEMBLY - differential, Includes: Ref. 9 - 18

1шт.

L33047

SET

KIT - differential halves, Includes: Ref. 9 - 12

1шт.

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - differential, Includes: Ref. 9 - 12

1шт.

9

L33049

PIN

SPARE PART Dowel

4шт.

10

L33050

BOLT

Special, case mounting

8шт.

11

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

12

NSS

NOT SOLD SEPARAT

CASE - flanged half

1шт.

13

131-719

NUT

Special, case mounting, Includes: Ref. 14 and 15

8шт.

14

L33055

WASHER

Thrust, side gear

2шт.

15

L33054

WASHER

Thrust, pinion

4шт.

16

L33052

GEAR

Side, differential

2шт.

17

L33051

PINION

Differential

4шт.

18

L33053

U-JOINT SPIDER

Differential

1шт.

19

L33062

ROLLER BEARING

Pinion, inner

1шт.

L33058

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 20 - 23

1шт.

20

L33909

BOLT

Special

4шт.

21

194-114

WASHER

Special, lock (7/8")

4шт.

22

NSS

NOT SOLD SEPARAT

CAP - carrier

1шт.

23

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

24

40398

ROLLER BEARING,3" ID x 1.2205"

CONE, differential

2шт.

25

ST968

BEARING CUP,3" ID x 1.7875"

CUP, differential

2шт.

26

L33910

NUT

Adjusting, special

2шт.

27

391-711

SPARE PART Bolt (18 gauge x 18" long) If used

2шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

L33057

LOCK

Adjusting nut

2шт.

31

REF

INSTRUCTION

BRAKE AND COMPANION FLANGE - differential (Parts list figure 97B)

1шт.

32

129-545

NUT,1/2"-20, G8

14шт.

33

L33002

WASHER

Special

14шт.

34

L33016

DOWEL

Carrier

3шт.

35

L33041

STUD

Differential carrier to axle housing

14шт.

36

L26838

SPARE PART Shear, axle mounting

4шт.

37

116-902

BOLT,Hex, 1" - 14 x 9", Gr 8

8шт.

38

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Special

16шт.

39

131-188

LOCK NUT,1"-14, GB

8шт.
