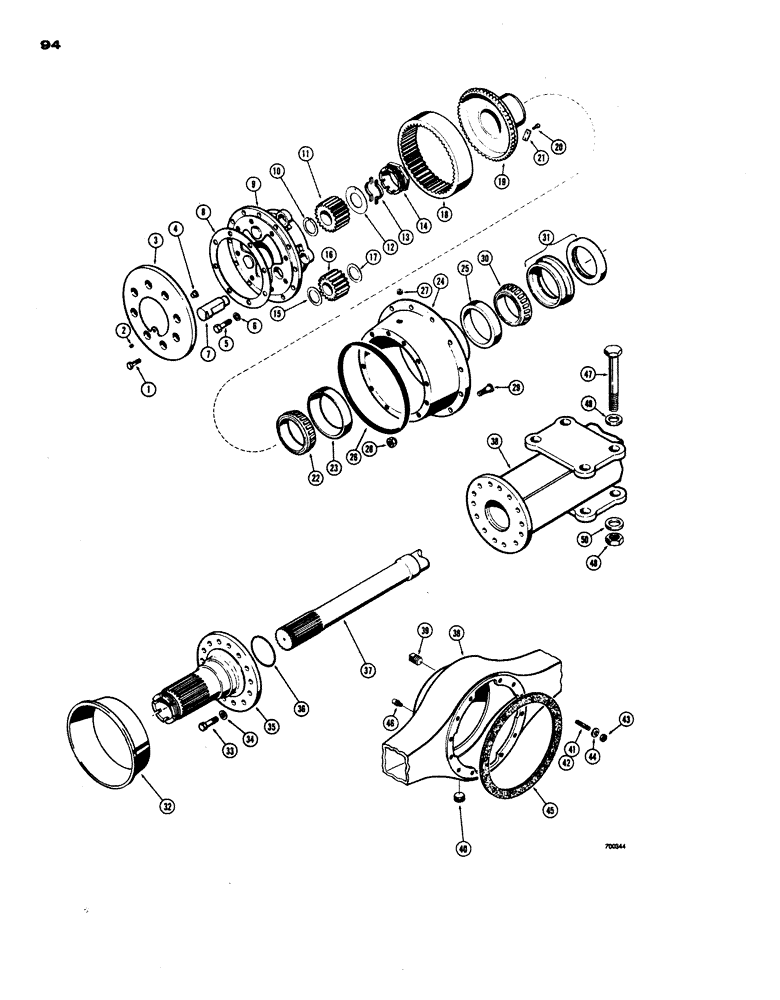

Запчасти Case W24 (094) - FRONT AXLE AND PLANETARY, BEFORE TRACTOR SN. 9105061 (06) - POWER TRAIN

L43496

AXLE ASSEMBLY - complete, front (PR-151-HX-42), Includes: Ref. 1 - 50

1шт.

1

L30675

SCREW

BOLT - special (Cover mounting)

16шт.

2

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square socket head (1/4" NPT)

2шт.

A14973

X

COVER ASSEMBLY - planetary (When stock is exhausted order L34025 cover for service), Includes: Ref. 3 and 4

2шт.

L34025

COVER ASSY

COVER ASSEMBLY - planetary, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

4

A12980

BUTTON

- thrust

1шт.

5

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-5/8"

32шт.

6

D47366

WASHER

- med. sect. lock (1/2")

32шт.

7

A19885

SHAFT

- planetary pinion gear

6шт.

8

A14971

GASKET

- planetary cover

2шт.

9

A14979

U-JOINT SPIDER

SPIDER - planetary

2шт.

10

A14969

RING, SNAP

SNAP RING - sun gear

2шт.

11

A14976

GEAR

- sun, planetary

2шт.

12

A14966

WASHER

- sun gear

2шт.

13

A14970

LOCK ASSY

LOCK - bearing nut

4шт.

14

A14965

NUT

- hub bearing retaining

2шт.

15

A14967

WASHER

- thrust, pinion (Outer)

6шт.

16

A14977

GEAR

- pinion, planetary

6шт.

17

A19886

WASHER

- thrust, pinion (Inner)

6шт.

18

A14975

GEAR

- ring, planetary

2шт.

19

A14978

HUB

- planetary ring gear

2шт.

20

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- special (3/8" - 11 NC x 3/4") G8

16шт.

21

A14964

LOCK ASSY

LOCK PLATE - hub

8шт.

22

A14960

BEARING

CONE - bearing, tapered roller type (Outer)

2шт.

A15417

HUB

ASSEMBLY - rim, Includes: Ref. 23 - 25

2шт.

23

A14961

BEARING CUP

CUP - bearing, tapered roller type (Outer)

1шт.

24

NSS

NOT SOLD SEPARAT

HUB - rim

1шт.

25

A14985

BEARING CUP

CUP - bearing, tapered roller type (Inner)

1шт.

26

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

SEAL - "O" ring, spider to hub

2шт.

27

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic, drain (3/4" NPT)

2шт.

28

A12522

WHEEL NUT

- hex., rim mounting (Not included in axle assembly)

24шт.

29

A13112

STUD

STUD - wheel, Serial Range: rim-hub

24шт.

30

A14984

ROLLER BEARING

CONE - bearing, tapered roller type

2шт.

31

A14989

CAP

SEAL - oil, spindle (When stock is exhausted, order L34030 seal for service)

2шт.

31

L34030

OIL SEAL

- oil, spindle

2шт.

32

A14980

SLINGER

- oil

2шт.

33

28-1044

HHCS - 5/8" - 18 NF x 2-3/4"

28шт.

34

A16783

WASHER

- special

28шт.

35

A14983

SPINDLE

- wheel

2шт.

36

A14986

O-RING,5" ID x 1 /8"

SEAL - "O" ring, spindle

2шт.

37

L32449

SHAFT

- axle

2шт.

L32448

HOUSING ASSEMBLY - axle, rear, Includes: Ref. 38 - 42

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - axle, rear

1шт.

39

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, filler (1-1/4" NPT)

1шт.

40

221-28

PLUG,Sq Soc, 1 1/2"-11 1/2, NTPF

- pipe, drain (1-1/2" NPT)

1шт.

41

A13130

STUD

- carrier to axle housing (1/2" - 20 NF x 2-5/8")

10шт.

42

L30673

STUD

- carrier to axle housing (1/2" - 20 NF x 3")

4шт.

43

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex., lock (1/2" - 20 NF)

14шт.

44

D47366

WASHER

- special

14шт.

45

A12943

GASKET

- carrier to axle housing

1шт.

46

A12928

BREATHER

- axle housing

1шт.

47

28-14152

BOLT,Hex, 7/8" - 14 x 9-1/2", Gr 8

HHCS - 7/8" - 14 NF x 9-1/2" ( replaced 114-804 )

8шт.

48

131-187

LOCK NUT,7/8"-14, GB

NUT - hex., lock (7/8" - 14 NF)

8шт.

49

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special (1-1/2" dia. x 9/64" thick)

8шт.

50

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special (1-7/8" dia. x 9/64" thick)

8шт.
