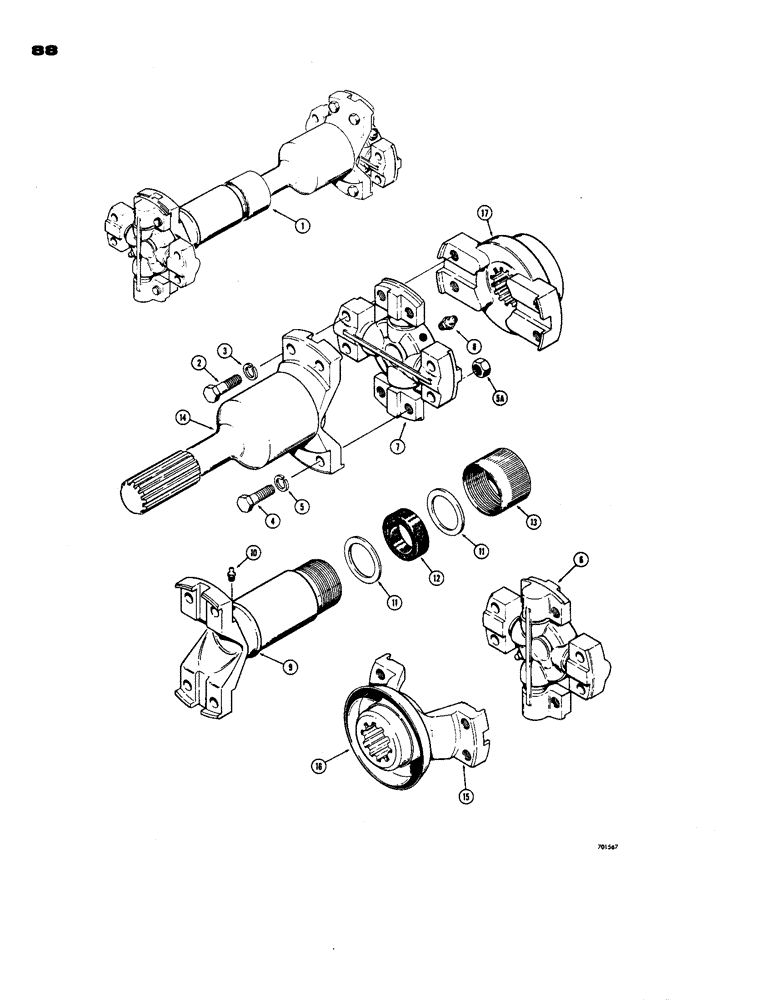

Запчасти Case W24 (088) - REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

1

L26879

SHAFT

ASSEMBLY - drive, rear axle, Includes: Ref. 2 - 14

1шт.

2

L31781

BOLT

BOLT - special, spider and bearing to rear axle and transmission

8шт.

3

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - special, drive shaft to spider and bearing

8шт.

5

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5a

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

L32424

TUBE

YOKE - drive shaft, splined (Axle end)

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

L32425

CAP

KIT - dust, drive shaft, Includes: Ref. 11 - 13

1шт.

11

L31779

WASHER

- felt retaining

2шт.

12

L31778

WASHER

- felt type (When stock is exhausted, order L33948 washer for service)

1шт.

12

L33948

WASHER

- felt type

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft

1шт.

14

L32429

YOKE

TUBE AND YOKE ASSEMBLY - drive shaft, transmission

1шт.

L32491

YOKE

ASSEMBLY - rear axle drive shaft, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

YOKE - rear axle drive shaft

1шт.

16

A12952

CYLINDER END CAP

SLINGER - oil

1шт.

17

L32395

FLANGE - drive shaft mounting, transmission end

1шт.
