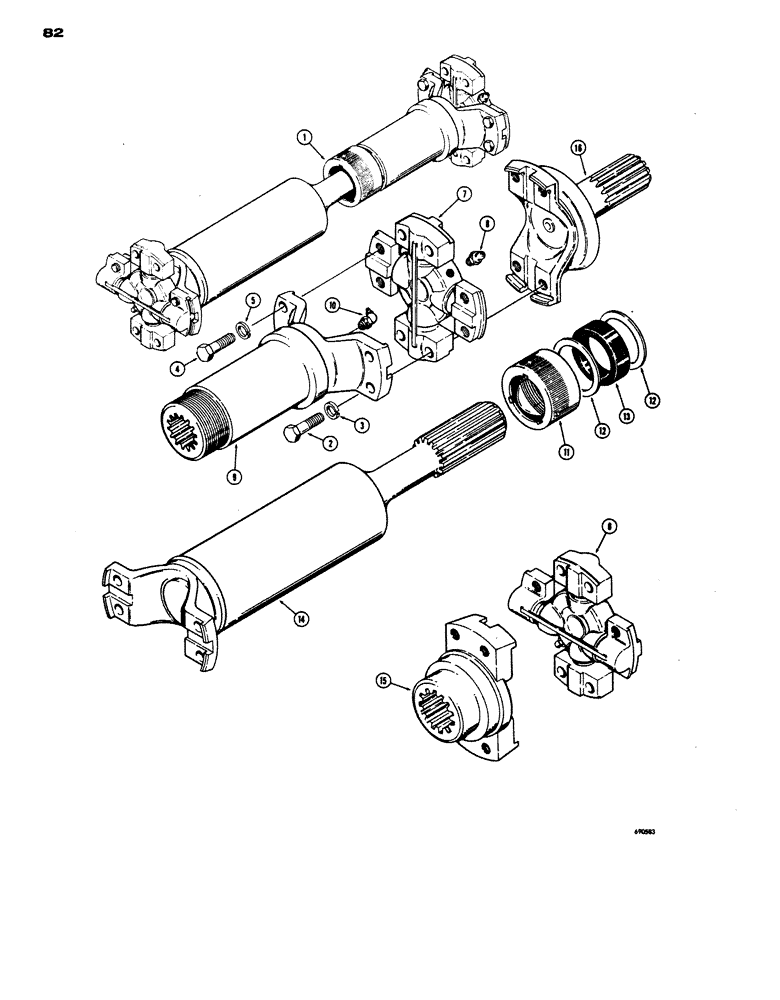

Запчасти Case W24 (082) - FRONT AXLE DRIVE SHAFT, TRANSMISSION END, USED BEFORE TRACTOR SN. 9107106 & ON SN. 9109149 - 9109154 (06) - POWER TRAIN

1

L26880

SHAFT

ASSEMBLY - drive, front axle (At transmission), Includes: Ref. 2 - 14

1шт.

2

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- special, spider and bearing to transmission and center bearing ( replaced L31781 )

8шт.

3

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- special, drive shaft to spider and bearing ( replaced A17302 )

8шт.

5

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

L32433

YOKE ASSEMBLY - drive shaft (Center bearing end), Includes: Ref. 9, 10 and 10A

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

10a

L32959

VALVE

- relief (Not shown)

1шт.

L32434

KIT

CAP KIT - dust, drive shaft, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft yoke

1шт.

12

L31792

WASHER

- felt retaining

2шт.

13

L31791

WASHER

- felt type

1шт.

14

L32438

YOKE

TUBE - drive shaft, splined (Transmission end)

1шт.

15

D71434

FLANGE

- drive shaft mounting, at transmission ( replaced L32395 )

1шт.

16

L25501

YOKE

FLANGE - drive shaft mounting, at center bearing

1шт.

Ref. 15 & 16 are not part of the Ref. 1 Shaft Assy.

1шт.
