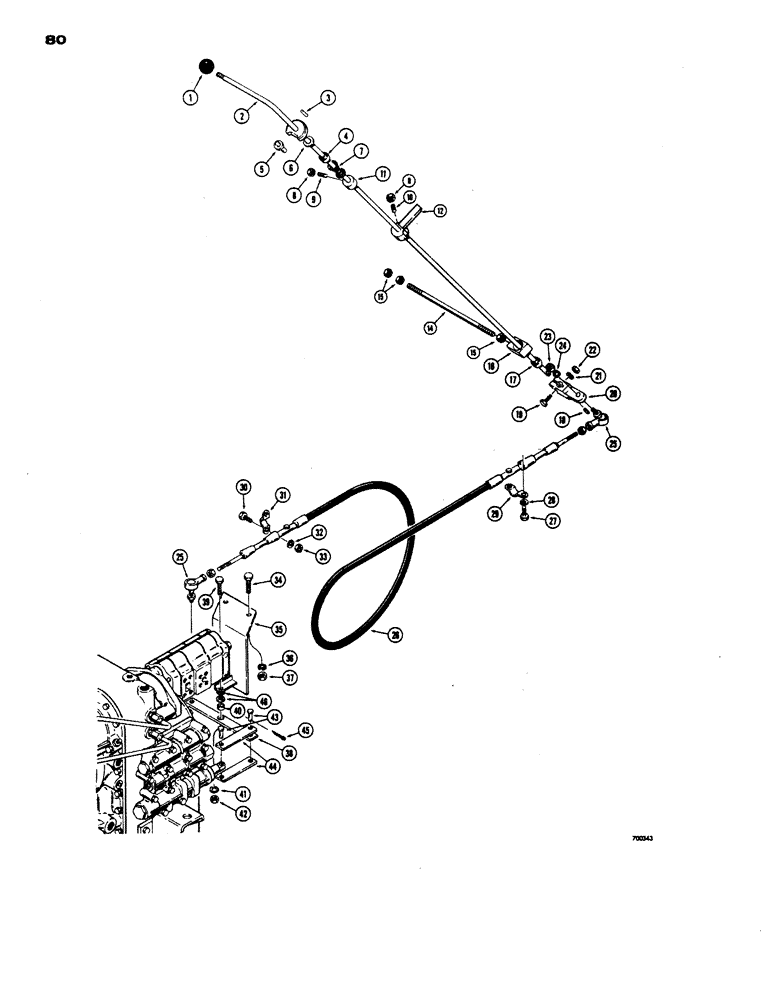

Запчасти Case W24 (080) - TRANSMISSION CONTROL PARTS (06) - POWER TRAIN

1

A23885

KNOB

BALL - transmission shift lever

1шт.

2

L19924

SHAFT

LEVER - shifting, transmission control (When stock is exhausted, order L50680 shaft for service)

1шт.

2

L50680

SHAFT

LEVER - shifting, transmission control

1шт.

3

135-539

PIN - groove type, 1/8" dia. x 3/4"

1шт.

4

L12277

BEARING

BUSHING - lever, self-aligning (When stock is exhausted, order L46936 bushing for service) 1-1/16" O.D.

1шт.

4

L46936

BUSHING

- lever, self-aligning (When stock is exhausted, order L33937 kit for service) 1-1/16" O.D.

1шт.

4

L33937

KIT

BUSHING KIT - self- aligning (Service replacement) 1-1/16" O.D.

1шт.

4

L51991

CYLINDER END CAP

BUSHING - self-aligning, shaft (1-1/8" O.D.)

1шт.

5

L12733

SPACER

STOP - shifting lever

1шт.

6

L12478

BEARING

- thrust

1шт.

7

A26586

SPRING

- lever return

1шт.

8

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16" - 18 NC)

2шт.

9

85-512

SET SCREW

SCREW - set, square head (5/16" - 18 NC x 3/4")

1шт.

10

85-516

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW - set, square head (5/16" - 18 NC x 1")

1шт.

11

L12480

COLLAR - lever and spring retaining

1шт.

12

L44128

COLLAR

ARM - air valve actuating

1шт.

13

RESERVED

1шт.

14

L43519

ROD - support, steering bracket to side plate

1шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

3шт.

L12276

SUPPORT

ASSEMBLY - shifting lever, lower (When stock is exhausted, order L50659 support and L12277 bushing for service) 1-1/16" bushing only, Includes: Ref. 16

1шт.

16

L50659

BLOCK

SUPPORT - shifting lever, lower (Used with 1-1/16" bushings only), Includes: Ref. 17

1шт.

16

L51986

BLOCK

SUPPORT - shifting lever, lower (Used with 1-1/8" bushing only), Includes: Ref. 17

1шт.

17

L12277

BEARING

BUSHING - lever, self-aligning (When stock is exhausted, order L46936 bushing for service) 1-1/16" O.D.

1шт.

17

L46936

BUSHING

- lever, self-aligning (When stock is exhausted, order L33937 kit for service) 1-1/16" O.D.

1шт.

17

L33937

KIT

BUSHING KIT - self-alignment (Service replacement) 1-1/16" O.D.

1шт.

17

L51991

CYLINDER END CAP

BUSHING - self alignment, shaft (1-1/8" O.D.)

1шт.

18

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

19

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

HHCS - 5/16" - 18 NC x 1-3/8"

1шт.

20

L14280

LEVER - transmission control linkage, lower front

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

23

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

A55473

END ASSY.

JOINT - ball type, cable end

2шт.

26

L14299

CABLE PULLING GRIP

CABLE - transmission shifting

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

L12489

CLAMP

- cable mounting, front

1шт.

30

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

31

L12489

CLAMP

- cable mounting, rear

1шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

34

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

35

L40555

BRACKET - linkage and tube mounting

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

25-104

NUT,1/4"-20, G5

2шт.

38

L40556

LINK

- transmission control, crossover

1шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 24 NC x 1-1/2"

1шт.

40

A9989

BUSHING

- link

1шт.

41

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

42

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 24 NC)

1шт.

43

141-11

CLEVIS PIN,3/8" x 1 1/4"

PIN - link mounting

2шт.

44

L16151

LINK

- transmission control, at transmission

2шт.

44a

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

45

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

46

195-2053

WASHER,17/32" x 1 1/2" x .083"

- flat, steel (1/2")

2шт.
