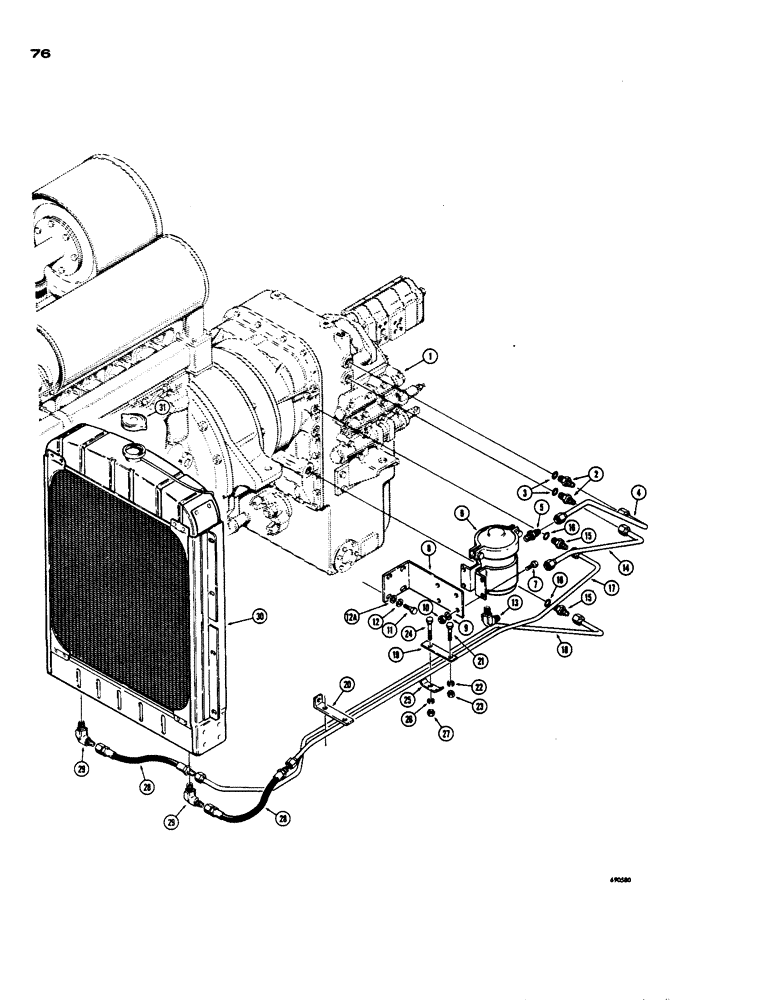

Запчасти Case W24 (076) - TRANSMISSION HYDRAULIC SYSTEM (06) - POWER TRAIN

1

L14257

TRANSMISSION

ASSEMBLY - complete (Parts list Figures 60 - 72)

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

L14272

TUBE - transmission to oil filter (Before tractor Sn. 9105119)

1шт.

4

L47139

TUBE

- transmission to oil filter (Tractor Sn. 9105119 and after)

1шт.

5

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (Before tractor Sn. 9105119)

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (Tractor Sn. 9105119 and after), Incl. Ref. 5A

1шт.

5a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (218-5064 connector) Not shown

1шт.

6

L16131

FILTER

ASSEMBLY - transmission oil (Before tractor Sn. 9105119) Parts list Figure 78

1шт.

6

L47141

NO LONGER SERVICED

FILTER ASSEMBLY - transmission oil (Tractor Sn. 9105119 and after) Not shown (Parts list Figure 78)

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Filter to bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

8

L19124

BRACKET

- filter mounting

1шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Filter bracket to engine block Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

12a

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

13

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degree (Before tractor Sn. 9105119), Includes: Ref. 13A

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male (Tractor S/N 9105119 and after), Incl. Ref. 13A 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

13a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (218-5108 elbow) Not shown

1шт.

14

L14273

TUBE - oil filter to transmission (Return line) Before tractor Sn. 9105119)

1шт.

14

L47173

TUBE - oil filter to transmission (Return line) Tractor Sn. 9105119 and after

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

L18723

TUBE - tramsmission to transmission oil cooler

1шт.

18

L18724

TUBE

- transmission oil, Serial Range: cooler-transmission

1шт.

19

L14266

BRACKET

- tube mounting, front

1шт.

20

L19474

BRACKET - tube mounting, rear

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Bracket to rear frame)

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

25

A14078

CLAMP

- tube

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

28

L18817

FLEXIBLE HOSE

HOSE - transmission oil cooling (14-1/2") When stock is exhausted, order L47196 hose for service

2шт.

28

L47196

HOSE - transmission oil cooling (14-1/2")

2шт.

29

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degree

2шт.

30

L15781

RADIATOR

- engine and transmission cooling (See Figure 32 for related parts), Includes: Ref. 31

1шт.

Ref. 30 - Shroud for this radiator is N6188

1шт.

31

D25826

CAP

- radiator, 6.5 t 7.5 P.S.I.

1шт.
