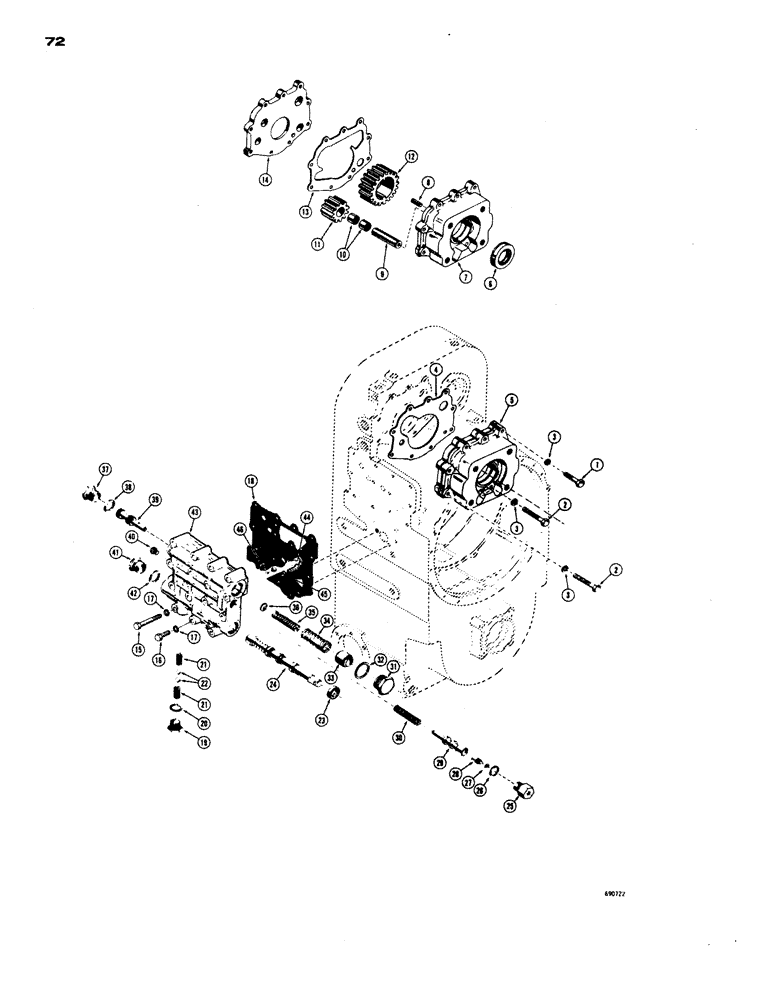

Запчасти Case W24 (072) - TRANSMISSION, PUMP AND CONTROL VALVE, L32414 CHARGING PUMP (06) - POWER TRAIN

L14257

TRANSMISSION

ASSEMBLY - complete (Before transmission Sn. 35042), Includes: Ref. 1 - 46

1шт.

L51925

TRANSMISSION

ASSEMBLY - complete (Transmission Sn. 35042 and after), Includes: Ref. 1 - 46

1шт.

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

3шт.

3

92-6

LOCK WASHER,3/8"

9шт.

4

L31081

GASKET

-, Serial Range: pump-housing

1шт.

5

L32414

PUMP

- transmission and torque converter charging, Includes: Ref. 6 - 14

1шт.

6

A13262

SEAL

- oil

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

8

L31168

PIN

- dowel, pump, Serial Range: housing-cover

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - driven gear

1шт.

10

L31166

NEEDLE BEARING

- roller type

2шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven, pump

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - drive, pump

1шт.

13

P0031037L

BALL

- pump, Serial Range: housing-cover

1шт.

14

L31085

COVER ASSY

COVER - pump

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", L35000 and L33955 transmission control valves

15шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L35000 and L33955 transmission control valves Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

L35000 and L33955 transmission control valves 3/8"

16шт.

18

L31187

GASKET

- valve to housing, L35000 and L33955 transmission control

1шт.

L36149

VALVE

- transmission control (Before transmission Sn. 35042), not modulated, Replaces L35000, L35000 and L33955, Includes: Ref. 19 - 46

1шт.

L33985

CONTROL VALVE

VALVE - transmission control (Transmission Sn. 35042 and after), for soft or modulated shift, L35000 and L33955, Includes: Ref. 19 - 46

1шт.

19

D46350

PLUG

- valve housing, lower, L35000 and L33955 transmission control

1шт.

20

L31034

WASHER

GASKET - trimmer valve plug, L35000 and L33955 transmission control

1шт.

21

L31027

SPRING

- detent, L35000 and L33955 transmission control valves

2шт.

22

211-13

BALL,1/2" Dia

- detent, L35000 and L33955 transmission control valves 1/2" Dia

2шт.

23

L31032

SEAL

- oil, L35000 and L33955 transmission control valves

1шт.

24

L31228

SPOOL

- valve, L35000 and L33955 transmission control

1шт.

25

L31030

PLUG

- clutch cut off valve, L35000 and L33955 transmission control

1шт.

26

L31034

WASHER

GASKET - plug, L35000 and L33955 transmission control valves

1шт.

27

A12666

O-RING,0.359" ID x 0.73"

SEAL - ring type, clutch cut off valve, L35000 and L33955 transmission control

1шт.

28

L31025

PLUG

- clutch cut off valve, L35000 and L33955 transmission control

1шт.

29

L33980

VALVE

- clutch cut off, L35000 and L33955 transmission control

1шт.

30

L31169

SPRING

- clutch cut off valve, L35000 and L33955 transmission control

1шт.

31

L31044

PLUG

- valve, L35000 and L33955 transmission control

1шт.

32

L31043

GASKET

- trimmer valve plug, L35000 and L33955 transmission control

1шт.

33

D47646

PLUG

- trimmer valve (Before transmission Sn. 23650) When stock is exhausted, order D51471 spring and D51472 plug for service, L35000 and L33955 control valves

1шт.

33

D51472

PLUG

- trimmer valve (Trans. Sn. 23650 and after), L35000 and L33955 transmission control

1шт.

34

L31183

SPRING

- trimmer valve, L35000 and L33955 transmission control

1шт.

35

D47520

SPRING

- regulator valve (Before transmission Sn. 23650) When stock is exhausted, order D51471 spring and D51472 plug for service, L35000 and L33955 control

1шт.

35

D51471

SPRING

- regulator valve (Trans. Sn. 23650 and after), L35000 and L33955 control

1шт.

36

L32743

RETAINER

- spring, L35000 and L33955 transmission control valves

1шт.

37

L31045

PLUG

- regulator valve, L35000 and L33955 transmission control

1шт.

38

L31016

GASKET

- plug, L35000 and L33955 transmission control valves

1шт.

39

L31189

VALVE

- regulator, L35000 and L33955 transmission control valves

1шт.

40

221-661

PLUG,Hex Hd, 1/8"-27

- valve, L35000 and L33955 transmission control

1шт.

41

L31045

PLUG

- valve, L35000 and L33955 transmission control

1шт.

42

L31016

GASKET

- plug, L35000 and L33955 transmission control valves

1шт.

43

NSS

NOT SOLD SEPARAT

HOUSING - valve, L35000 and L33955 transmission control

1шт.

44

L31040

STOP

- valve, L35000 and L33955 transmission control

1шт.

45

L31046

PLUG

- ball retainer, L35000 and L33955 transmission control valves

1шт.

46

L31019

BALL

- valve, L35000 and L33955 transmission control

1шт.
