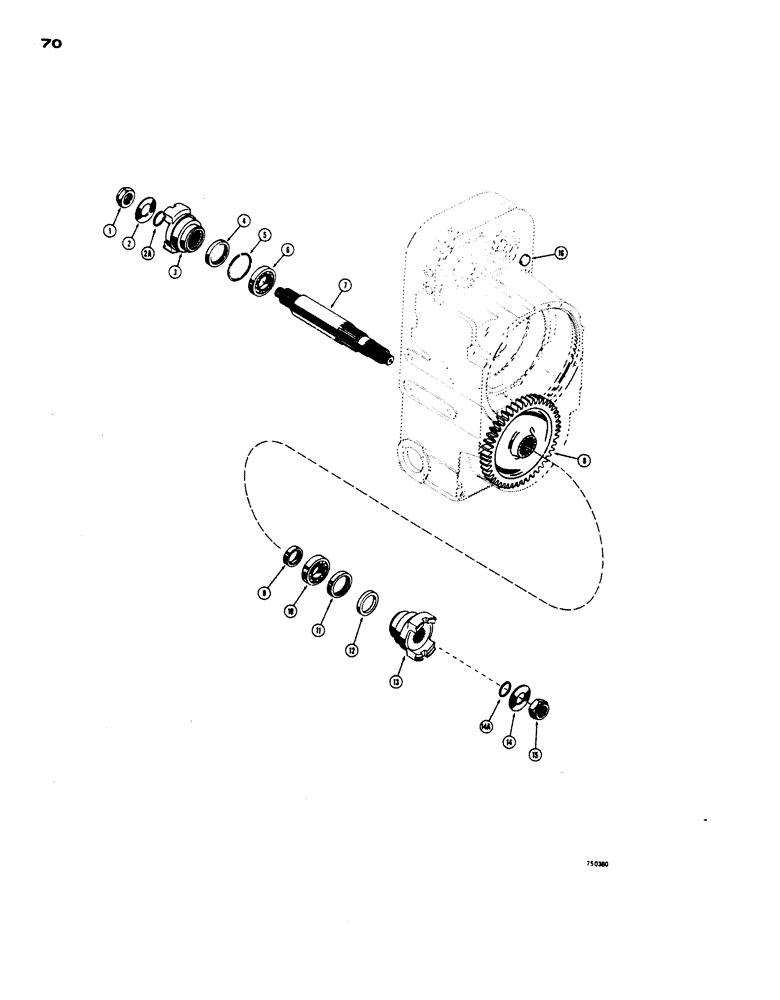

Запчасти Case W24 (070) - TRANSMISSION, AXLE OUTPUT SHAFT (06) - POWER TRAIN

L14257

TRANSMISSION

ASSEMBLY - complete (Before transmission transmission Sn. 35042), Includes: Ref. 1 - 16

1шт.

L51925

TRANSMISSION

ASSEMBLY - complete (Transmission Sn. 35042 and after), Includes: Ref. 1 - 16

1шт.

1

L31165

NUT

- flange washer retaining

1шт.

2

D47424

WASHER

- flange retaining (When stock is exhausted, order (1) L35974 washer and (1) L35973 "O" ring for service)

1шт.

2

L35974

WASHER

- flange retaining

1шт.

2a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

Ref. 2A - 2.0866" I.D. .139" Thick

1шт.

3

L32395

FLANGE - transmission to rear axle drive shaft

1шт.

4

D47485

SEAL

- oil

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

- ball type

1шт.

7

D47491

SHAFT

- output, main (Axle drive)

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

D47489

ROLLER BEARING

BEARING - ball type

1шт.

11

D47485

SEAL

- oil

1шт.

12

L32396

SPACER

- flange (Before transmission Sn. 35042)

1шт.

13

L32395

FLANGE - transmission to front axle drive shaft

1шт.

14

D47424

WASHER

- flange retaining (When stock is exhausted, order (1) L35974 washer and (1) L35973 "O" ring seal for service)

1шт.

14

L35924

CARRIER

WASHER - flange retaining

1шт.

14a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

15

L31165

NUT

- flange washer, retaining

1шт.

16

L31051

PLUG

- housing (Before Trans. Sn. 32262)

1шт.

16

L33620

PLUG

- housing (Trans. Sn. 32262 and after)

1шт.
