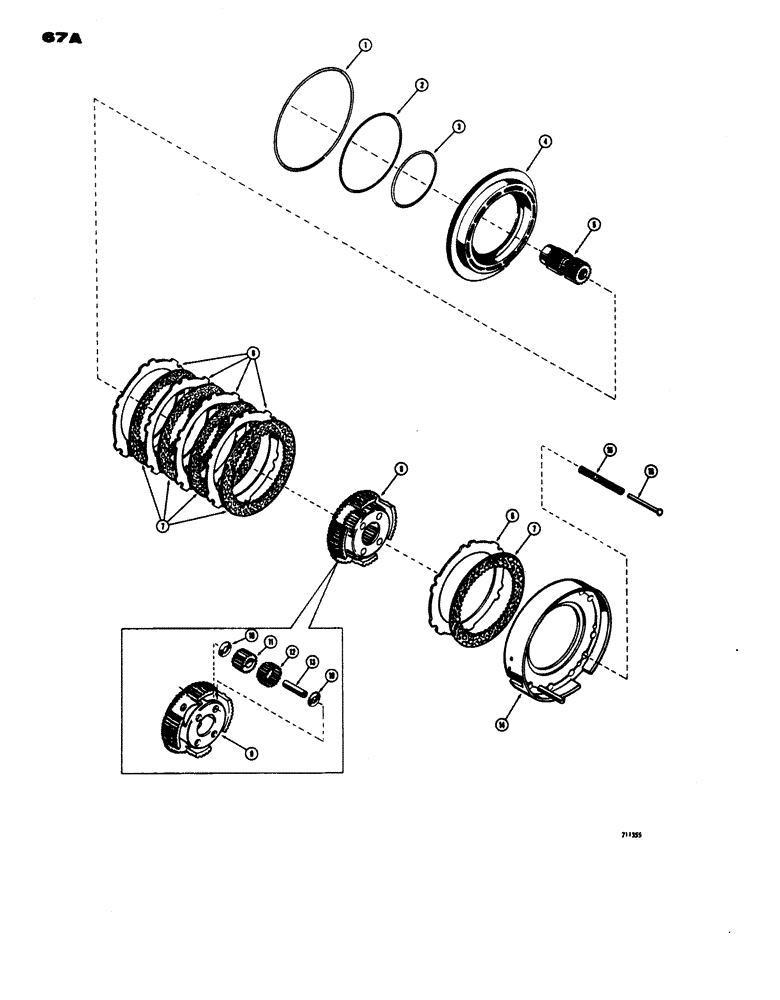

Запчасти Case W24 (067A) - TRANSMISSION, REVERSE CLUTCH AND PLANETARY, TRANSMISSION SN. 35042 AND AFTER (06) - POWER TRAIN

L51925

TRANSMISSION

ASSEMBLY - complete (Transmission Sn. 35042 and after), Includes: Ref. 1 - 16

1шт.

1

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

- ring type, large

1шт.

2

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

- ring type, medium

1шт.

3

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- ring type, small

1шт.

4

L33969

PISTON

- reverse clutch

1шт.

5

L32404

GEAR

- sun, forward and reverse clutch

1шт.

6

L33958

PLATE

- clutch, external spline

5шт.

7

L33970

PLATE

- clutch, internal spline

5шт.

8

L33971

CARRIER

ASSEMBLY - reverse clutch planetary, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER AND HUB - reverse clutch planetary

1шт.

10

A12700

WASHER

- thrust

8шт.

11

A16369

PINION

SET - planetary, matched set of 4

1шт.

12

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

13

A12705

SPINDLE

- pinion

4шт.

14

L33973

ANCHOR

AND PIN ASSEMBLY - reverse clutch

1шт.

15

A55806

SPRING

- clutch piston return

12шт.

16

D47468

PIN

- spring guide

12шт.
