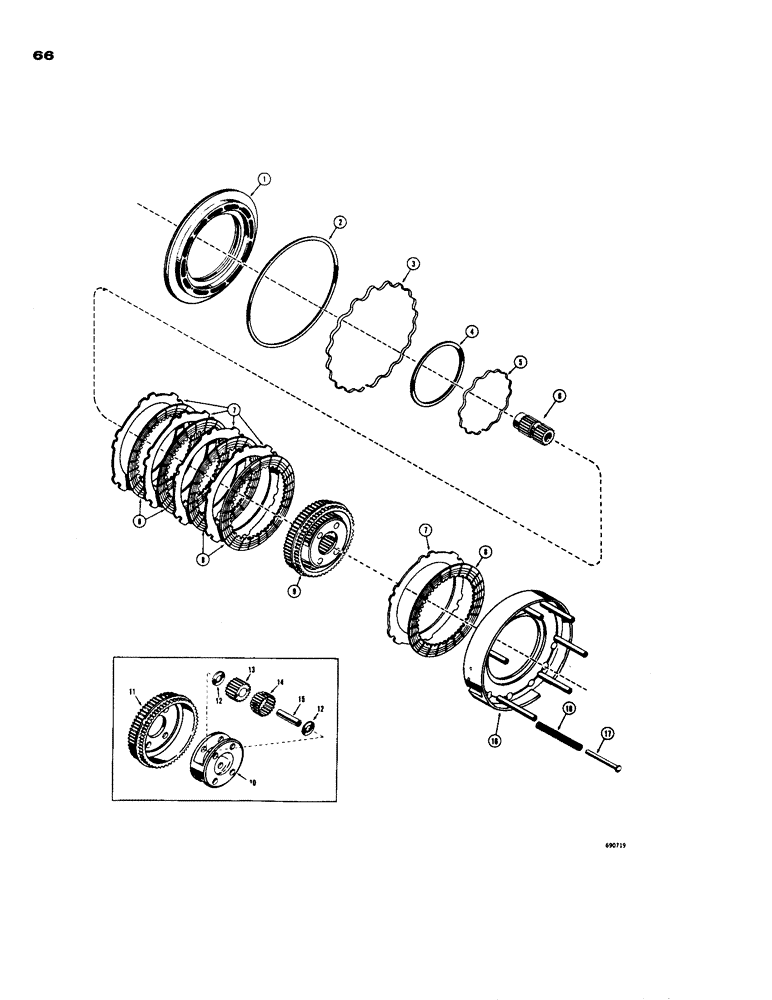

Запчасти Case W24 (066) - TRANSMISSION, REVERSE CLUTCH AND PLANETARY, BEFORE TRANSMISSION S.N. 35042 (06) - POWER TRAIN

L14257

TRANSMISSION

ASSEMBLY - complete (Before transmission Sn. 35042), Includes: Ref. 1 - 18

1шт.

1

L30353

PISTON - reverse clutch

1шт.

A40021

KIT

SEAL AND EXPANDER KIT - reverse clutch, large, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - ring type, large

1шт.

3

NSS

NOT SOLD SEPARAT

EXPANDER - reverse clutch seal, large

1шт.

A40023

SEAL

AND EXPANDER KIT - reverse clutch, small, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - ring type, small

1шт.

5

NSS

NOT SOLD SEPARAT

EXPANDER - reverse clutch seal, small

1шт.

6

L32404

GEAR

- sun, forward and reverse clutch

1шт.

7

L34015

PLATE

- clutch, external spline (When stock is exhausted, replace all five plates with (5) L33958 plates)

5шт.

7

L33958

PLATE

- clutch, external spline

5шт.

8

A12831

FACING, CLUTCH

PLATE - clutch, internal spline

5шт.

9

D46603

SPARE PART

CARRIER ASSEMBLY - reverse clutch planetary (When stock is exhausted, order L33941 carrier assembly for service), Includes: Ref. 10 - 15

1шт.

9

L33941

CARRIER

ASSEMBLY - reverse clutch planetary, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - reverse clutch planetary

1шт.

11

D47513

HUB - reverse clutch planetary (When stock is exhausted, order L33942 hub for service)

1шт.

11

L33942

HUB - reverse clutch planetary

1шт.

12

A12700

WASHER

- thrust

8шт.

13

A16369

PINION

SET - planetary, matched set of 4

1шт.

14

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

15

A12705

SPINDLE

- pinion

4шт.

16

D47467

ANCHOR

AND PIN ASSEMBLY - forward and reverse clutch

1шт.

17

D47468

PIN

- spring guide

12шт.

18

A55806

SPRING

- clutch piston return

12шт.
