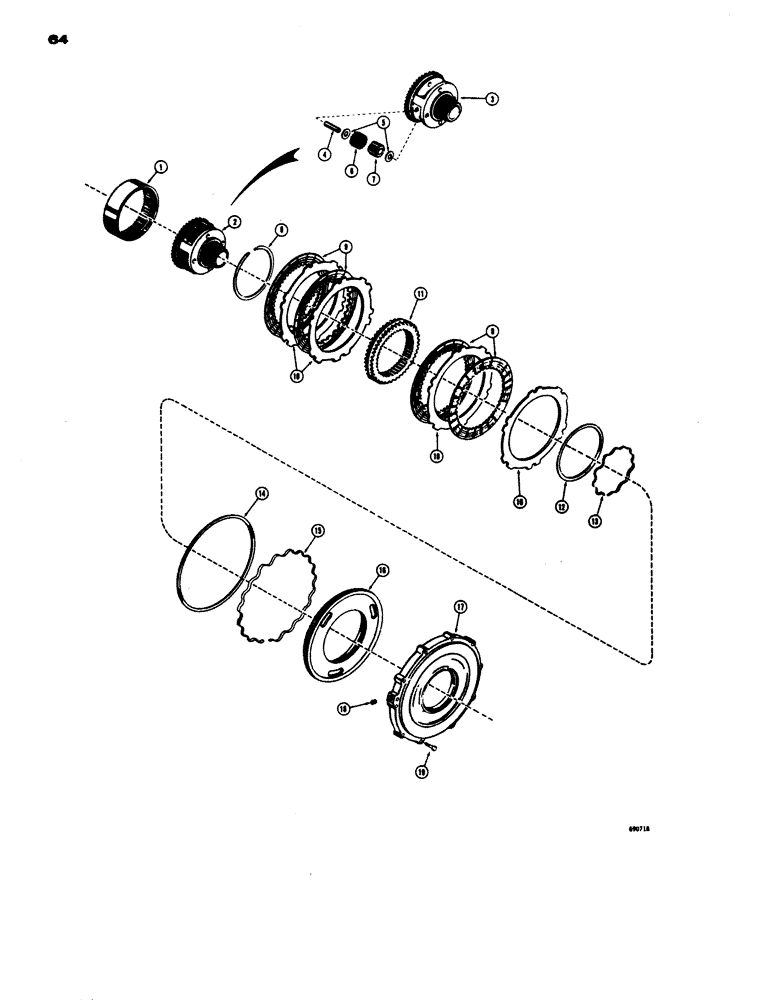

Запчасти Case W24 (064) - TRANSMISSION, FORWARD CLUTCH AND PLANETARY, BEFORE TRANSMISSION S.N. 35042 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L14257
TRANSMISSION
ASSEMBLY - complete (Before transmission Sn. 35042), Includes: Ref. 1 - 19
1шт.
1
A12712
GEAR
- reverse ring
1шт.
2
L32405
CARRIER
ASSEMBLY - forward clutch planetary (When stock is exhausted, order L35533 carrier assembly for service), Includes: Ref. 3 - 7
1шт.
2
L35533
CARRIER
ASSEMBLY - forward clutch planetary, Includes: Ref. 3 - 7
1шт.
3
NSS
NOT SOLD SEPARAT
CARRIER - forward clutch planetary
1шт.
4
A12705
SPINDLE
- pinion
4шт.
5
A12700
WASHER
- thrust
8шт.
6
A12659
NEEDLE
ROLLER - planetary pinion
88шт.
7
A16369
PINION
SET - planetary, matched set of 4
1шт.
8
A12687
RING
SNAP RING - retaining
1шт.
9
A12831
FACING, CLUTCH
PLATE - clutch, internal spline
4шт.
10
L34015
PLATE
- clutch, external spline (When stock is exhausted, replace all four plates with (4) L33958 plates)
4шт.
10
L33958
PLATE
- clutch, external spline
4шт.
11
D47470
GEAR WHEEL
GEAR - ring, forward clutch (When stock is exhausted, order L33976 gear for service)
1шт.
11
L33976
GEAR
- ring, forward clutch (When stock is exhausted, order L35535 gear for service)
1шт.
11
L35535
GEAR
- ring, forward clutch
1шт.
A40023
SEAL
AND EXPANDER KIT - forward clutch, small, Includes: Ref. 12 and 13
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - ring type, small
1шт.
13
NSS
NOT SOLD SEPARAT
EXPANDER - forward clutch seal, small
1шт.
A40021
KIT
SEAL AND EXPANDER KIT - forward clutch, large, Includes: Ref. 14 and 15
1шт.
14
NSS
NOT SOLD SEPARAT
SEAL - ring type, large
1шт.
15
NSS
NOT SOLD SEPARAT
EXPANDER - forward clutch seal, large
1шт.
16
L30354
PISTON ASSY.
PISTON - forward clutch
1шт.
17
D47471
HOUSING
- forward clutch piston
1шт.
18
221-31
DRAIN PLUG,Sq Soc, 1/4"-18 NPTF
PLUG - pipe, square socket head (1/4" NPT)
1шт.
19
121-207
SCREW,Lock Place, Hex, 3/8" - 16 x 1 1/2", Gr 8
HHCS - 3/8" - 16 NC x 1-1/2"
10шт.
Выбрано товаров: 26
