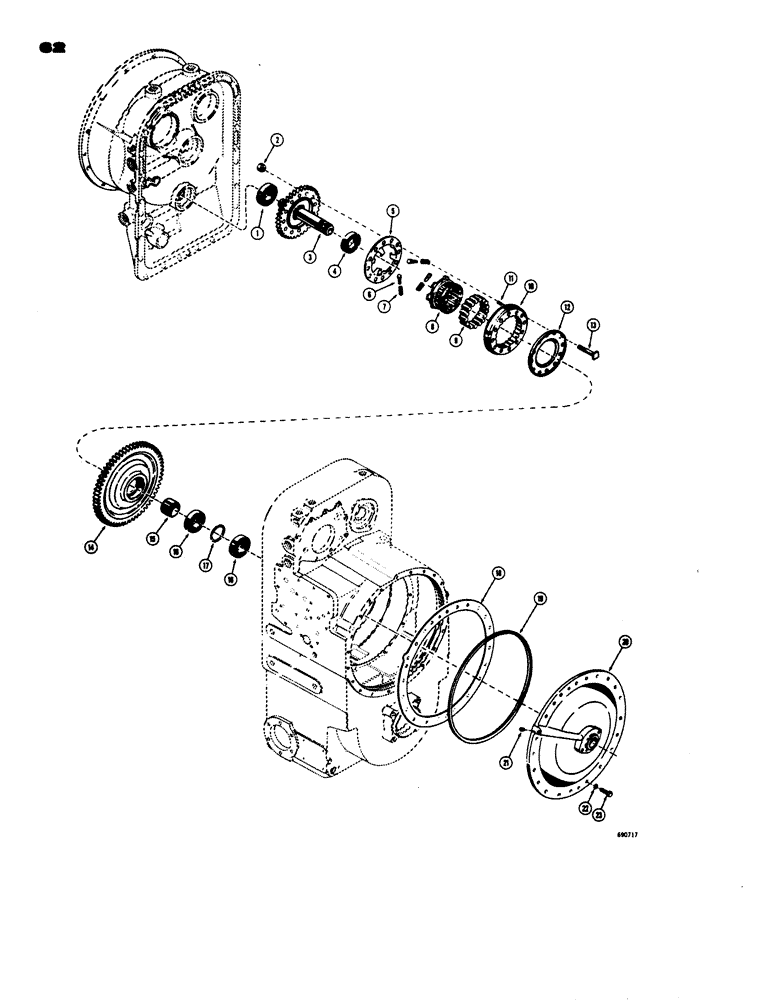

Запчасти Case W24 (062) - TRANSMISSION, TURBINE DRIVEN GEARS AND FREEWHEEL UNIT (06) - POWER TRAIN

L14257

TRANSMISSION

TRANS. ASSEMBLY - complete (Before transmission Sn. 35042), Includes: Ref. 1 - 23

1шт.

L51925

TRANSMISSION

ASSEMBLY - complete (Transmission Sn. 35042 and after), Includes: Ref. 1 - 23

1шт.

1

D47572

BEARING

- ball type

1шт.

2

L31163

SPECIAL NUT

- hex., lock (3/8" - 24 NF) Special

12шт.

3

L32401

GEAR

AND SHAFT ASSEMBLY - driven, second turbine (When stock is exhausted, order L35508 Gear and Shaft Assembly for service)

1шт.

3

L35508

GEAR

AND SHAFT ASSEMBLY - driven, second turbine

1шт.

4

D47573

BALL BEARING

BEARING - ball type

1шт.

D47640

KIT

- over running clutch (Before transmission Sn. 35042 When stock is exhausted, order L35003 kit for service), Includes: Ref. 5 - 12

1шт.

L35003

KIT

- free wheel clutch (Transmission Sn. 35041 and after as production item, prior to transmission Sn. 35042 as service replacement), Includes: Ref. 5 - 12

1шт.

5

D47645

PLATE ASSY.

PLATE - retaining (D47640 kit only)

1шт.

5

L33962

PLATE

- retaining (L35003 kit only)

1шт.

6

D47644

PIN

- spring positioning

3шт.

7

D48863

SPRING

- plate

3шт.

8

D47641

CAGE

- free wheel roller (D47640 kit only)

1шт.

8

L33963

NEEDLE BEARING CAGE

CAGE - freewheel roller (L35003 kit only)

1шт.

9

L31161

ROLLER

- freewheel

15шт.

D47642

CAM

ASSEMBLY - freewheel (D47640 kit only), Includes: Ref. 10 and 11

1шт.

L33964

CAM

ASSEMBLY - freewheel (L35003 kit only), Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

11

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

12

D47454

RESERVOIR

COLLECTOR PLATE - lube

1шт.

13

D47455

SQUARE BOLT

- special

12шт.

14

D47456

GEAR

- driven, first turbine

1шт.

15

D48331

BUSHING

SPACER - bearing

1шт.

16

D47572

BEARING

- ball type

2шт.

17

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

18

D47576

GASKET

- front cover

1шт.

19

L32412

RING

- seal

1шт.

20

L32413

COVER

- front

1шт.

21

221-23

PLUG

- pipe, square socket head (3/8" NPT)

1шт.

22

92-6

LOCK WASHER,3/8"

19шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

19шт.
