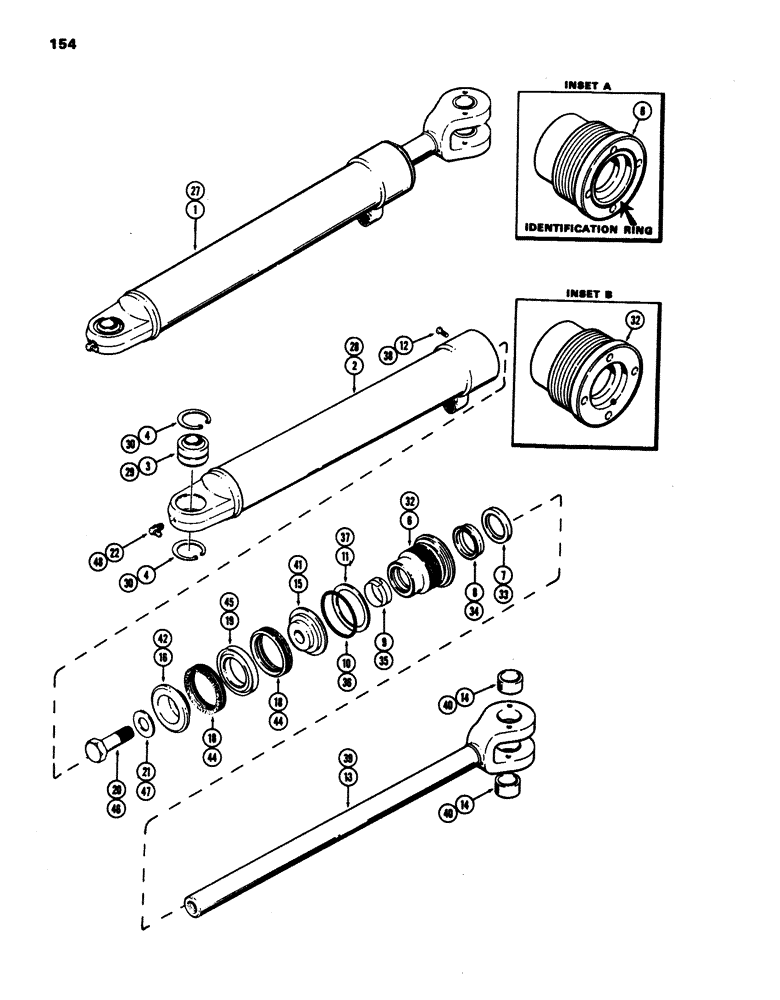

Запчасти Case W24 (154) - G33437 STEERING CYL,3"DIA. CYL W/18-1/4" STROKE W/GLAND ID RING 1ST USED LOADER SN9109122, (05) - STEERING

1

G33437

HYDRAULIC CYLINDER

CYLINDER ASSY. - steering, Includes: Ref. 2 - 22

2шт.

2

D46195

TUBE ASSY. - cylinder, Includes: Ref. 3 and 4

1шт.

3

L12570

BUSHING

- tube (self-aligning)

1шт.

4

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, tube bushing retaining

2шт.

G33485

GLAND

ASSY., Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

8

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

G33438

ROD

ASSY. - piston (1-1/2" dia.) (w/identification ring), Includes: Ref. 14

1шт.

14

D46400

BUSHING

- piston rod

2шт.

15

G33150

PISTON

- split (rod end) (w/identification ring)

1шт.

16

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 18 and 19

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

27

G32147

CYLINDER ASSY. - steering, G32147 without gland identification ring, with solid outer piston wiper, used loader, Includes: Ref. 28 - 48, Serial Range: 9105109-9109122

2шт.

28

D46195

TUBE ASSY. - cylinder, G32147 steering without gland identification ring, with solid outer piston wiper, used loader, Includes: Ref. 29 and 30, Serial Range: 9105109-9109122

1шт.

29

L12570

BUSHING

- tube (self-aligning), G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.

30

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, tube bushing retaining, G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

2шт.

G32734

GLAND

ASSY., G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Includes: Ref. 32 - 37, Serial Range: 9105109-9109122

1шт.

32

NSS

NOT SOLD SEPARAT

GLAND - (w/out identification ring)(See Inset B), G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.

33

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32147 steering cylinder without gland identification ring, used loader, Serial Range: 9105109-9109122

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

34

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 5/16"), G32147 steering cylinder without gland identification ring, with solid outer wiper, used loader, Serial Range: 9105109-9109122

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

35

D27706

WIPER SEAL

WIPER - piston rod, inner, G32147 steering cylinder without gland identification ring, with solid outer, used loader, Serial Range: 9105109-9109122

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

36

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

37

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up, G32147 steering cylinder without identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.

38

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32147 steering cylinder without identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.

39

D48546

GLAND

ROD ASSY. - piston (1-1/2" dia.)(w/o identification ring), G32147 steering cylinder, with solid outer wiper, used loader, Includes: Ref. 40 - 48, Serial Range: 9105109-9109122

1шт.

40

D46400

BUSHING

- piston rod, G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

2шт.

41

D28365

PISTON

- split (rod end)(w/out identification ring), G32147 steering cylinder, with solid outer wiper, used loader, Serial Range: 9105109-9109122

1шт.

42

D28366

PISTON

- split (bolt end), G32147 steering cylinder without gland identification ring, with solid outer wiper, used loader, Serial Range: 9105109-9109122

1шт.

G33151

PACKING

ASSY. - piston, G32147 steering cylinder without gland identification ring, with solid outer wiper, used loader, Includes: Ref. 44 and 45, Serial Range: 9105109-9109122

1шт.

Part of Cylinder Seal Repair Kit P/N G32292.

1шт.

44

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type, G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

2шт.

45

NSS

NOT SOLD SEPARAT

RING - center bearing, G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.

46

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 1-1/2" N.F. hex.), G32147 steering cylinder without gland identification ring, with solid outer wiper, used loader, Serial Range: 9105109-9109122

1шт.

47

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8" x 9/64"), G32147 steering cylinder without gland identification ring, with solid outer wiper, used loader, Serial Range: 9105109-9109122

1шт.

48

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G32147 steering cylinder without gland identification ring, with solid outer piston wiper, used loader 90º, 1/8" NPT x .84" lg, Serial Range: 9105109-9109122

1шт.

G32292

KIT

SEAL, repair, cylinder, Includes: Ref. 7 - 11, 33 - 36 and G33151, G32147 steering without gland identification ring, with solid outer piston wiper, used loader, Serial Range: 9105109-9109122

1шт.
