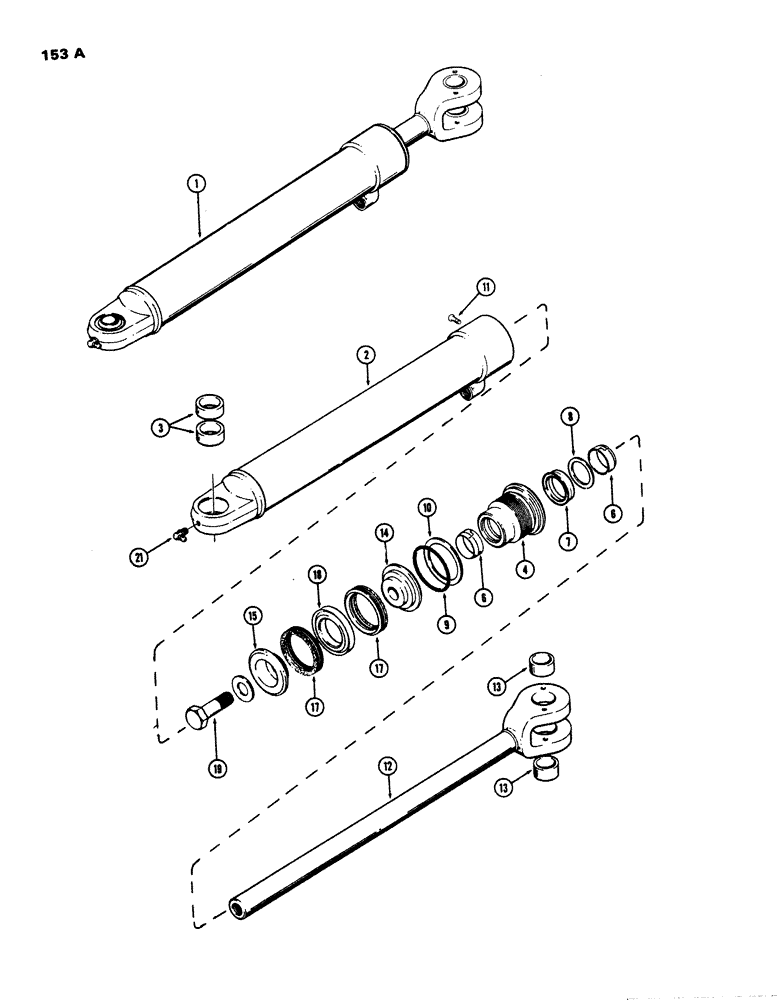

Запчасти Case W24 (153A) - D46200 STEERING CYL,3"DIA. CYL W/18-1/4"STROKE W/SPLIT OUTER PISTON ROD WIPER TO LOADER SN9105109 (05) - STEERING

1

D46200

CYLINDER

ASSY. - steering (Order G32147) (See Figure 155), Includes: Ref. 2 - 21

2шт.

2

D46195

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D46401

BUSHING

- tube

2шт.

4

D45067

GLAND

- packing (Order G32734) (See Figure 155)

1шт.

D42870

GASKET KIT

SEAL KIT - cylinder repair, Includes: Ref. 6 - 11

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner and outer

2шт.

7

D36969

CUP

SEAL - piston rod, (1-1/2 x 2 x 13/32")

1шт.

8

D28498

RING

- piston rod seal back-up

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

10

D36093

WASHER

RING - gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D48546

GLAND

ROD ASSY. - piston (1-1/2" dia.), Includes: Ref. 13

1шт.

13

D46400

BUSHING

- piston rod

2шт.

14

D28365

PISTON

- split (rod end)

1шт.

15

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSEMBLY - piston (Replaces D28374), Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (Replaces D34666)

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
