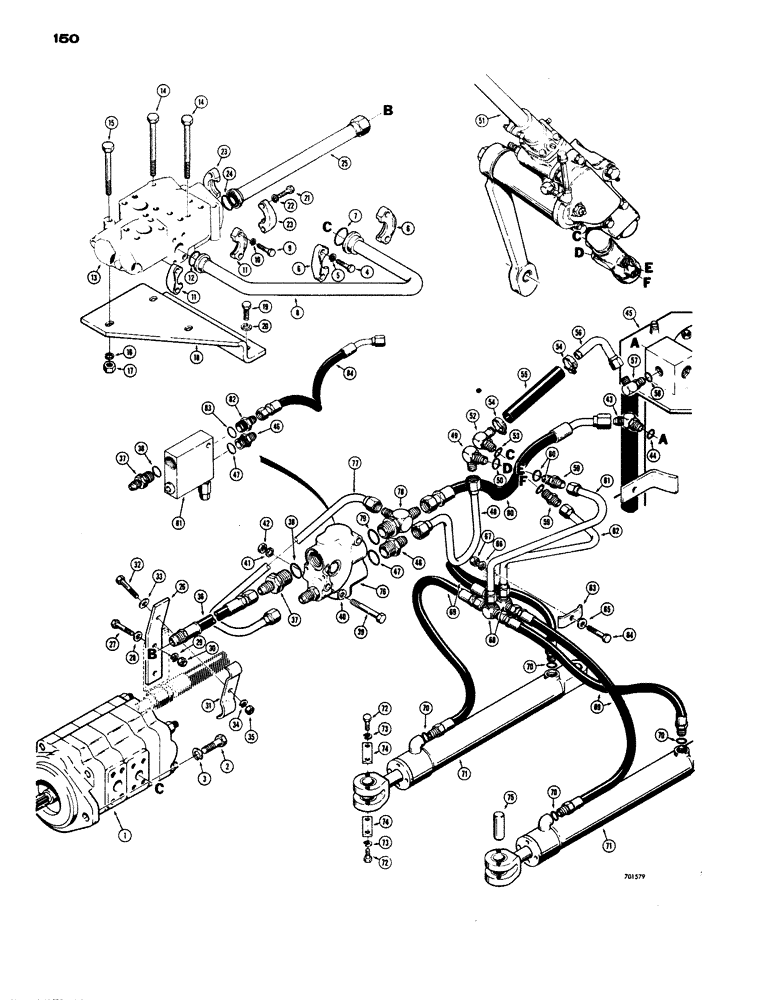

Запчасти Case W24 (150) - STEERING HYDRAULICS, USED ON MODELS WITH DEMAND VALVE (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Loader - 48 G.P.M. steering - 23 G.P.M. at 2000 P.S.I. at 2200 R.P.M.) Parts list Figure 196

1шт.

L26895R

REMAN-HYD PUMP

W24 CASE ARTICULATED WHEEL LOADER

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

A16961

FLANGE

Split, tube

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL

1шт.

8

L42094

SPARE PART Pump steering outlet to demand valve

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

A12306

FLANGE

Split, tube

2шт.

12

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL

1шт.

13

L42508

VALVE

ASSEMBLY - demand (Parts list Figure 155A)

1шт.

14

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

2шт.

15

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

Hex

3шт.

18

L42086

SPARE PART Mounting, demand valve

1шт.

19

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

20

92-12

LOCK WASHER,3/4"

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A12306

FLANGE

Split, tube

2шт.

24

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

25

L42087

SPARE PART Demand valve to steering gear

1шт.

26

L18550

SPARE PART Hose mounting

1шт.

27

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

28

95-8

WASHER,1/2"

Standard wrot

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

25-108

NUT,1/2"-13, G5

Hex

2шт.

31

L18548

CLAMP

Hose

1шт.

32

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

33

95-6

WASHER,3/8"

Standard wrot

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

1шт.

36

L43508

HOSE

Pump to steering gear (26" long)

1шт.

37

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1-2шт.

40

95-6

WASHER,3/8"

1-2шт.

41

92-6

LOCK WASHER,3/8"

1-2шт.

42

25-106

NUT,3/8"-16, G5

Hex

1-2шт.

43

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref 44

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

REF

INSTRUCTION

TANK - hydraulic reservoir (Parts list Figure 164)

1шт.

46

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Straight, male, Includes Ref. 47

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

48

L43590

SPARE PART Flow divider valve to steering gear valve

1шт.

49

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 50

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

51

L19818

GEAR SET

ASSEMBLY - steering (Parts list Figure 140 and 142)

1шт.

52

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Adjustable, Incl Ref 53

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

54

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

55

L16816

HOSE

Low pressure

1шт.

56

L16001

TUBE,0.625" OD x 3.6, 1.9" L

Return, steering gear to reservoir

1шт.

57

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

59

L10108

ADAPTER

CONNECTOR - straight, Includes Ref. 60

2шт.

60

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

61

L15987

TUBE,16.5, 6.7" L

Upper steering gear port to steering cylinders

1шт.

62

L15991

TUBE,11.12, 6.75" L

Lower steering gear port to steering cylinders

1шт.

63

L16844

SPARE PART Tube

1шт.

64

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

65

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot (5/16")

1шт.

66

92-5

LOCK WASHER,5/16"

1шт.

67

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

68

218-595

TEE,7/8"-14, 37 Degree

Steering gear to steering cylinder

2шт.

69

L15989

FLEXIBLE HOSE

At steering cylinder (31" long), Includes Ref. 70

4шт.

70

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

71

D46200

CYLINDER

Hydraulic, steering (3" I.D. x 18-1/4" stroke) Before tractor S/N 9105109 (Parts list Figure 153A)

2шт.

71

G32147

SPARE PART Hydraulic, steering (3" I.D. x 18-1/4" stroke) Tractor S/N 9105109 - 9109121 (Parts list Figure 154)

2шт.

71

G33437

HYDRAULIC CYLINDER

Steering (3" I.D. x 18-1/4" stroke) Tractor S/N 9109122 and after (Parts list Figure 154)

2шт.

72

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

73

92-6

LOCK WASHER,3/8"

16шт.

74

L16036

STRAP

PLATE - steering cylinder pin

8шт.

75

L26849

PIN

Steering cylinder

4шт.

76

L43459

LOCK VALVE

ASSEMBLY - flow divider (Parts list Figure 149A) When stock is exhausted, order L48203 kit which includes L47317 valve and 218-755 tubing plug for service, related parts before tractor, Start Serial: 9107013

1шт.

76a

218-755

CAP,37 Degree, 3/4"-16

PLUG - hydraulic tubing (1/2" tube) Not shown, flow divider valve and related parts before tractor, Start Serial: 9107013

1шт.

77

L43580

SPARE PART Flow divider valve to service tee, related parts before tractor, Start Serial: 9107013

1шт.

78

218-5244

3 WAY CONNECTION

TEE - service, adjustable, flow divider valve and related parts before tractor, Includes Ref. 79, Start Serial: 9107013

1шт.

79

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Flow divider valve and related parts before tractor, Start Serial: 9107013

1шт.

80

L46042

HOSE

Flow divider valve to tank (19" long) When stock is exhausted, order L48075 hose for service - Ref. No. 84 below, related parts before tractor, Start Serial: 9107013

1шт.

81

L47317

VALVE

ASSEMBLY - flow divider (Parts list Figure 149A), flow divider valve and related parts before tractor, Start Serial: 9107013

1шт.

82

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Straight, male, flow divider valve and related parts before tractor, Includes Ref. 83 9107013 and, Start Serial: after

1шт.

83

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

84

L48075

FLEXIBLE HOSE

Flow divider valve to tank (18" long), related parts 9107013 and, Start Serial: after

1шт.
