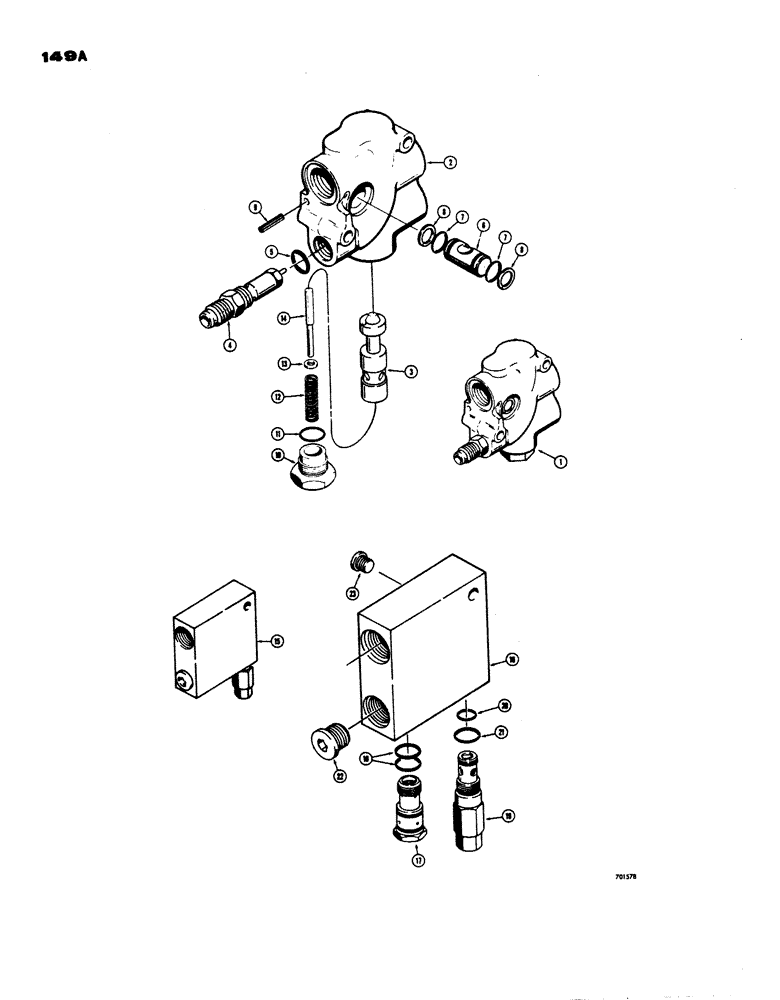

Запчасти Case W24 (149A) - L43459 FLOW DIVIDER VALVE (05) - STEERING

1

L43459

LOCK VALVE

VALVE ASSEMBLY - flow divider, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

4

L32749

RELIEF VALVE ASSEMBLY - flow divider, Includes: Ref. 5

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

7

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring, flow divider valve ( replaced A25570 )

2шт.

8

A25298

RING

- backup

2шт.

9

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

10

L32748

PLUG - valve body

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

12

L32747

SPRING - rod

1шт.

13

L32751

WASHER - retaining rod

1шт.

14

L32750

ROD - retaining

1шт.

15

L47317

VALVE

ASSEMBLY - flow divider, L47317, Includes: Ref. 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve, L47317 flow divider

1шт.

17

L33211

BY-PASS VALVE

BYPASS ASSEMBLY - valve, L47317 flow divider, Includes: Ref. 18

1шт.

18

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

SEAL - "O" ring, L47317 flow divider

2шт.

19

L33212

CARTRIDGE

RELIEF ASSEMBLY - cartridge, valve, L47317 flow divider, Includes: Ref. 20 and 21

1шт.

20

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

SEAL - "O" ring, L47317 flow divider

1шт.

21

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring, L47317 flow divider

1шт.

22

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT) End of valve, L47317 flow divider

1шт.

23

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. socket head (1/2" NPT) Side of valve, L47317 flow divider

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
