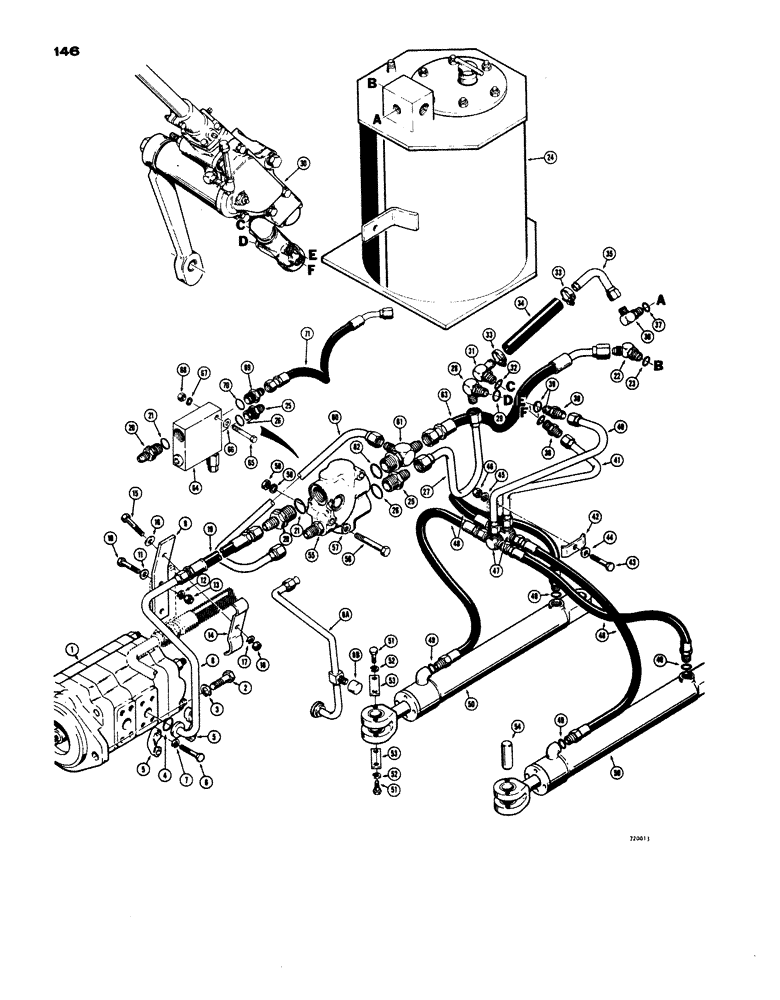

Запчасти Case W24 (146) - STEERING HYDRAULICS, USED ON MODELS WITHOUT DEMAND VALVE (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Loader - 48 G.P.M., steering - 23 G.P.M. at 2000 P.S.I. at 2200 R.P.M.) Parts list Figure 196

1шт.

L26895R

REMAN-HYD PUMP

W24 CASE ARTICULATED WHEEL LOADER

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL

1шт.

5

A16961

FLANGE

Split

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L15981

TUBE

Pump to steering gear (At pump) When stock is exhausted, order L51266 tube and 218-335 cap for service

1шт.

8a

L51266

TUBE

Pump to steering gear (At pump)

1шт.

8b

218-335

CAP,37 Degree, 1 1/16"-12

Tube spud (3/4")

1шт.

9

L18550

SPARE PART Hose mounting

1шт.

10

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

11

95-8

WASHER,1/2"

Standard wrot

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

Hex

2шт.

14

L18548

CLAMP

Hose

1шт.

15

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

16

95-6

WASHER,3/8"

Standard wrot

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

Hex

1шт.

19

L43508

HOSE

Pump to steering gear (26" long)

1шт.

20

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

REF

INSTRUCTION

TANK - hydraulic reservoir (Parts list Figure 164)

1шт.

25

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Straight, male, Includes Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

L43590

SPARE PART Flow divider valve to steering gear valve

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

L19818

GEAR SET

ASSEMBLY - steering (Parts list Figure 140 and 142)

1шт.

31

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

STEM - adjustable, Incl Ref 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

34

L16816

HOSE

Low pressure

1шт.

35

L16001

TUBE,0.625" OD x 3.6, 1.9" L

Return, steering gear to reservoir

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

L10108

ADAPTER

CONNECTOR - straight, Includes Ref. 39

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

L15987

TUBE,16.5, 6.7" L

Upper steering gear port to steering cylinders

1шт.

41

L15991

TUBE,11.12, 6.75" L

Lower steering gear port to steering cylinders

1шт.

42

L16844

SPARE PART Tube

1шт.

43

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

44

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot (5/16")

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

47

218-595

TEE,7/8"-14, 37 Degree

Steering gear to steering cylinder

2шт.

48

L15989

FLEXIBLE HOSE

At steering cylinder (31" long), Includes: Ref. 49

4шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

50

D46200

CYLINDER

Hydraulic, steering (3" I.D. x 18-1/4" stroke) Before tractor S/N 9105109 (Parts list Figure 153A)

2шт.

50

G32147

SPARE PART Hydraulic, steering (3" I.D. x 18-1/4" stroke) Tractor S/N 9105109 thru 9109121 (Parts list Figure 154)

2шт.

50

G33437

HYDRAULIC CYLINDER

Steering (3" I.D. x 18-1/4" stroke) Tractor S/N 9109122 and after (Parts list Figure 154)

2шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

52

92-6

LOCK WASHER,3/8"

16шт.

53

L16036

STRAP

PLATE - steering cylinder pin

8шт.

54

L26849

PIN

Steering cylinder

4шт.

55

L43459

LOCK VALVE

ASSEMBLY - flow divider (Parts list Figure 149A) When stock is exhausted, order L48203 kit which includes L47317 valve and 218-755 tubing plug for service, related parts before tractor, Start Serial: 9107013

1шт.

55a

218-755

CAP,37 Degree, 3/4"-16

PLUG - hydraulic tubing (1/2" tube) Not shown, flow divider valve and related parts before tractor, Start Serial: 9107013

1шт.

56

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Flow divider valve and related parts before tractor, Start Serial: 9107013

2шт.

57

95-6

WASHER,3/8"

Flow divider valve and related parts before tractor, Start Serial: 9107013

2шт.

58

92-6

LOCK WASHER,3/8"

Flow divider valve and related parts before tractor, Start Serial: 9107013

2шт.

59

25-106

NUT,3/8"-16, G5

Flow divider valve and related parts before tractor, Start Serial: 9107013

2шт.

60

L43580

SPARE PART Flow divider valve to service tee, related parts before tractor, Start Serial: 9107013

1шт.

61

218-5244

3 WAY CONNECTION

TEE - service, adjustable, flow divider valve and related parts before tractor, Includes Ref. 62, Start Serial: 9107013

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Flow divider valve and related parts before tractor, Start Serial: 9107013

1шт.

63

L46042

HOSE

Flow divider valve to tank (19" long) When stock is exhausted, order L48075 hose for service - Ref. No. 71 below, related parts before tractor, Start Serial: 9107013

1шт.

64

L47317

VALVE

ASSEMBLY - flow divider (Parts list Figure 149A), related parts before tractor 9107013 and, Start Serial: after

1шт.

65

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

66

95-6

WASHER,3/8"

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

67

92-6

LOCK WASHER,3/8"

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

68

25-106

NUT,3/8"-16, G5

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

69

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Straight, male, flow divider valve and related parts before tractor, Includes: Ref. 70 9107013 and, Start Serial: after

1шт.

70

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Flow divider valve and related parts before tractor 9107013 and, Start Serial: after

1шт.

71

L48075

FLEXIBLE HOSE

Flow divider valve to tank (18" long), related parts before tractor 9107013 and, Start Serial: after

1шт.
