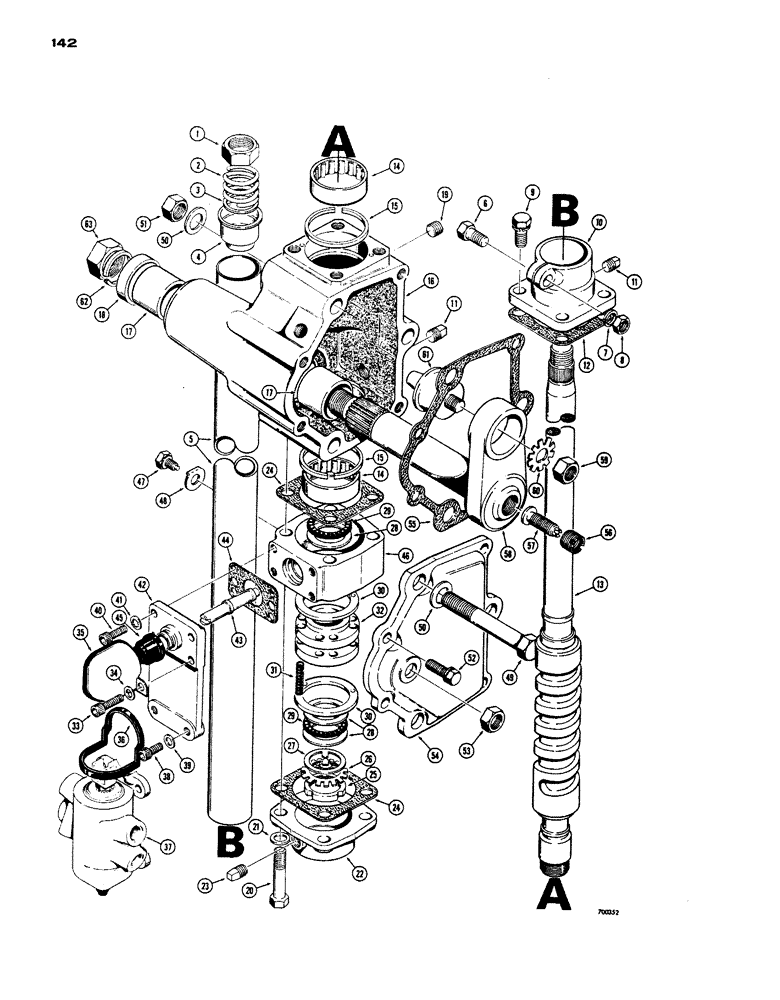

Запчасти Case W24 (142) - L19818 STEERING GEAR (05) - STEERING

54

L31553

COVER ASSY

COVER - side, lever shaft

1шт.

55

L31570

GASKET

- side cover

1шт.

L32472

LEVER

SHAFT ASSEMBLY - steering gear, Includes: Ref. 56 - 63

1шт.

56

L31552

RETAINER

- adjusting screw

1шт.

57

L31551

SCREW,1/2" - 20

- adjusting, lever shaft

1шт.

58

NSS

NOT SOLD SEPARAT

LEVER SHAFT - steering gear

1шт.

L31550

BEARING ASSY

ASSEMBLY - lever shaft, Includes: Ref. 59 - 61

1шт.

59

A72010

NUT

- special

1шт.

60

L32486

WASHER

- special

1шт.

61

NSS

NOT SOLD SEPARAT

BEARING - lever shaft

1шт.

62

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

63

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- hex. (1-1/8" - 12 NF)

1шт.
