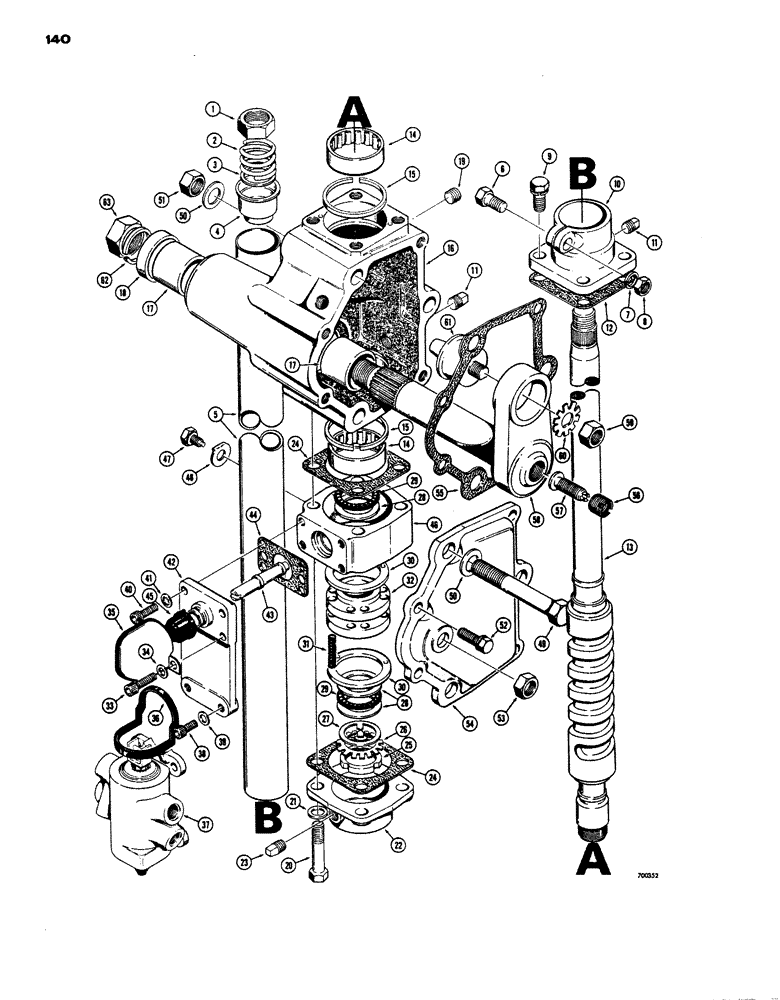

Запчасти Case W24 (140) - L19818 STEERING GEAR (05) - STEERING

L19818

GEAR SET

GEAR ASSEMBLY - steering, Includes: Ref. 1 - 53 and 54 - 63 on Figure 142

1шт.

1

A13073

NUT

- wheel

1шт.

2

L31558

SPRING

- jacket tube

1шт.

3

L31557

WASHER

- jacket tube

1шт.

L32453

TUBE

ASSEMBLY - jacket, steering gear, Includes: Ref. 4 and 5

1шт.

4

A14941

BUSHING

BEARING - jacket tube

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - jacket, steering gear

1шт.

6

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8" - 24 NF x 2"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

9

L31560

SCREW

BOLT AND WASHER ASSEMBLY - special

4шт.

10

L31554

COVER ASSY

COVER - upper, jacket tube mounting

1шт.

11

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

2-3шт.

12

L31563

GASKET

- cover, upper

1шт.

13

L32454

CAM

SHAFT - steering gear

1шт.

L32455

HOUSING ASSEMBLY - steering gear, Includes: Ref. 14 - 18

1шт.

14

A13083

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 12.7mm W

BEARING - camshaft, steering gear

2шт.

15

A13082

RING

- retaining, bearing

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - steering gear

1шт.

17

A13048

BUSHING

- Gear housing

2шт.

18

A13081

OIL RESERVOIR

SEAL - oil, gear housing

1шт.

19

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT)

1шт.

20

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

4шт.

21

F19626

WASHER - special

4шт.

22

L32461

COVER - end, camshaft

1шт.

23

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

24

L31569

GASKET

- end cover and, Serial Range: actuator-housing

2шт.

25

131-1006

TUBE NUT

NUT - lock, special (No. 6)

1шт.

26

L31567

WASHER

- lock, special

1шт.

27

L31566

- special, tongued

1шт.

28

L31564

WASHER

- special, thrust

3шт.

29

F51467

THRUST BEARING

BEARING, Needle, Thrust, Camshaft

2шт.

30

L32457

WASHER

- special, centering

2шт.

31

L32459

VALVE SPRING

SPRING - centering

4шт.

32

L32458

ACTUATOR

- steering gear

1шт.

33

164-33

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1 1/4"

- hex. socket head (1/4" - 20 NC x 1-1/4")

2шт.

34

L32466

WASHER - special, cover mounting

2шт.

35

L32470

COVER

- actuator lever

1шт.

36

L32471

SEAL

GASKET - cover, actuator lever

1шт.

37

L32654

LOCK VALVE

VALVE ASSEMBLY - steering control (Parts list figure 145)

1шт.

38

164-30

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 5/8"

SCREW - hex. socket head (1/4" - 20 NC x 5/8")

2шт.

39

L32466

WASHER - special, bracket mounting

2шт.

40

164-32

SCREW - hex. socket head (1/4" - 20 NC x 1")

2шт.

41

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, internal shakeproof (1/4")

2шт.

42

L32465

BRACKET - valve mounting

1шт.

43

L32468

LEVER

- actuator

1шт.

44

L32464

GASKET

- valve mounting bracket

1шт.

45

L32469

SEAL

SEAL - lever, actuator

1шт.

46

L32456

HOUSING - actuator

1шт.

47

L32462

BOLT

- special

1шт.

48

NLS

NO LONGER SERVICED

WASHER - lock, special

1шт.

49

L31561

BOLT - special

3шт.

50

L31562

WASHER

- special

6шт.

51

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

3шт.

52

L32473

BOLT (SPREADER)

BOLT AND WASHER ASSEMBLY - special

4шт.

53

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex. jam (1/2" - 20 NF)

1шт.
