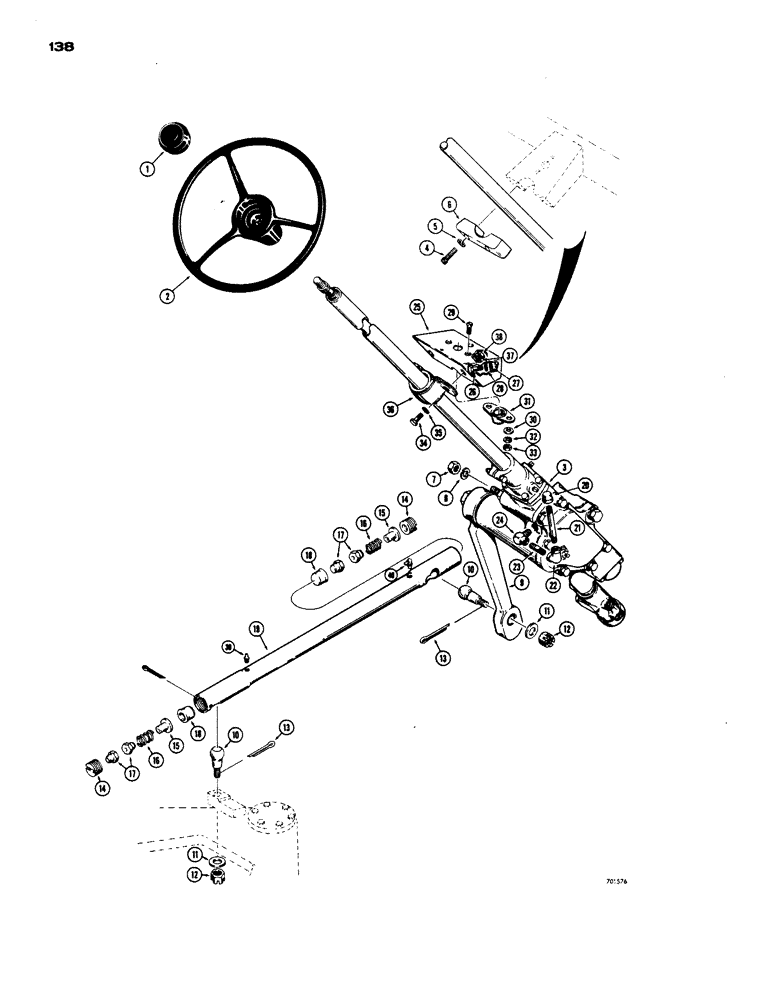

Запчасти Case W24 (138) - STEERING GEAR AND LINKAGE (05) - STEERING

1

L18519

CAP

- steering wheel

1шт.

2

A18962

RIM

WHEEL - steering

1шт.

3

L19818

GEAR SET

GEAR - steering (Parts list Figure 140 and 142)

1шт.

4

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex. socket head (3/8" - 16 NC x 1-1/2")

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

L12512

CLAMP - steering column (Used with L17222 chassis only)

1шт.

7

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

3шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

L26790

ARM

- pitman, at steering gear

1шт.

10

L26754

STUD

- steering

2шт.

11

95-10

WASHER,5/8"

- standard wrot () 5/8"

2шт.

12

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

2шт.

13

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

L26731

LINK

ASSEMBLY - pitman arm to rear frame (When stock is exhausted, order L48056 link for service, Ref. No. 41), Includes: Ref. 14 - 19

1шт.

14

L32687

PLUG

- end, adjusting

2шт.

15

L32686

PLUG

SEAT - spring

2шт.

16

L32685

VALVE SPRING

SPRING - tension, ball

2шт.

17

L32684

SEAT

- ball retaining

4шт.

18

NSS

NOT SOLD SEPARAT

RESERVOIR - link

2шт.

19

NSS

NOT SOLD SEPARAT

LINK - pitman arm to rear frame

1шт.

20

221-524

CAP,3/8" NPT

- filler () 3/8" NPT

1шт.

21

221-167

PIPE,Nipple, 3/8" NPT x 3 1/2"

NIPPLE - pipe (3/8" NPT x 3-1/2")

1шт.

22

221-376

ELBOW,90 Degree, 3/8" NPT

- pipe, 90 degree (Female) 3/8" NPT

1шт.

23

221-165

NIPPLE, LUBE

NIPPLE - pipe (3/8" NPT x 2-1/2")

1шт.

24

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degree (3/8" NPT)

1шт.

25

L45470

SUPPORT - steering column (Used with L45750 chassis only)

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

27

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- flat head machine (1/4" - 20 NC X 5/8")

2шт.

30

195-18

WASHER,1/4"

- plain () 1/4"

2шт.

31

L15401

BEARING,15.89mm ID

- shift lever (Used with L45470 support only)

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

25-104

NUT,1/4"-20, G5

2шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

36

L45471

BEARING

- steering column support (Used with L45750 chassis only)

1шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

40

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

41

L48056

DRAG LINK

LINK ASSEMBLY - pitman arm to rear frame (Spring loaded) No serviceable components (Not shown)

1шт.
