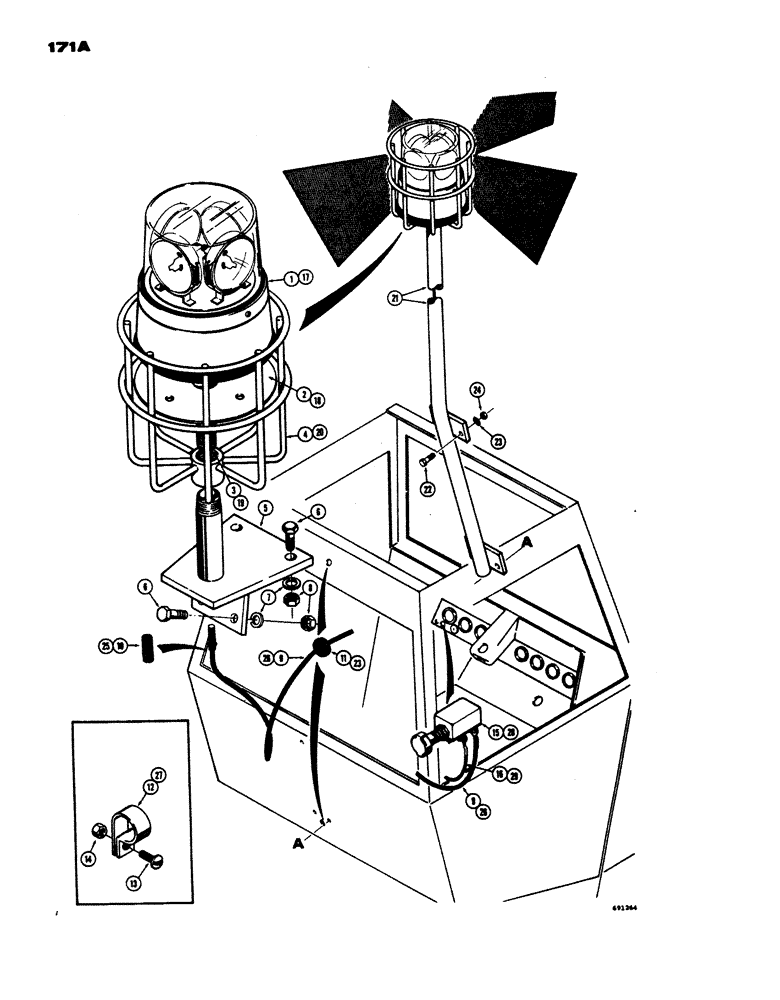

Запчасти Case W24 (171A) - ROTATING BEACON, USED ON MODELS WITH CAB (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L16100

BEACON

- rotating, 360 degree (Amber lens) Parts list Figure 171C

1шт.

1

L16676

BEACON

- rotating, 360 degree (Red lens) Parts list Figure 171C

1шт.

2

L16101

MOUNT - beacon

1шт.

3

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT

1шт.

4

L16615

CAGE

- beacon

1шт.

5

L18374

PIPE

BRACKET ASSEMBLY - beacon mounting (Models without rollover protective canopys)

1шт.

5

L50595

BRACKET ASSEMBLY - beacon mounting (Models with rollover protective canopys)

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

6

187-1520

SCREW,Hex Hd, 3/8" x 5/8"

- self-tapping (3/8" - 16 NC) If used (Not shown)

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (If used) 3/8"-16, G5

4шт.

9

L16768

WIRE ASSEMBLY -, Serial Range: beacon-switch

1шт.

10

A12458

SLEEVE

LOOM - wire

1шт.

11

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

- wire protection

1шт.

12

L18299

CLAMP

- wire

3шт.

13

173-205

X

RHMS - #10 - 24 NC x 5/8"

3шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

15

L16099

SWITCH

- rotating beacon, at instrument panel

1шт.

16

L18397

WIRE - jumper, to ignition switch

1шт.

17

L16100

BEACON

- rotating, 360 degree (Amber lens), used on models without cab

1шт.

17

L16676

BEACON

- rotating, 360 degree (Red lens), used on models without cab

1шт.

18

L16101

MOUNT - beacon, used on models without cab

1шт.

19

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT, used on models without cab

1шт.

20

L16615

CAGE

- beacon, used on models without cab

1шт.

21

L18376

EXTENSION - height, beacon, used on models without cab

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used on models w/o cab Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used on models w/o cab 3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used on models w/o cab 3/8"-16, G5

4шт.

25

A12458

SLEEVE

LOOM - wire, used on models without cab

1шт.

26

L16768

WIRE ASSEMBLY - beacon to switch, used on models without cab

1шт.

27

80049853

YOKE

- wire, used on models without cab

1шт.

28

L16099

SWITCH

- rotating beacon, at instrument panel, used on models without cab

1шт.

29

L18397

WIRE - jumper, to ignition switch, used on models without cab

1шт.

Выбрано товаров: 33
