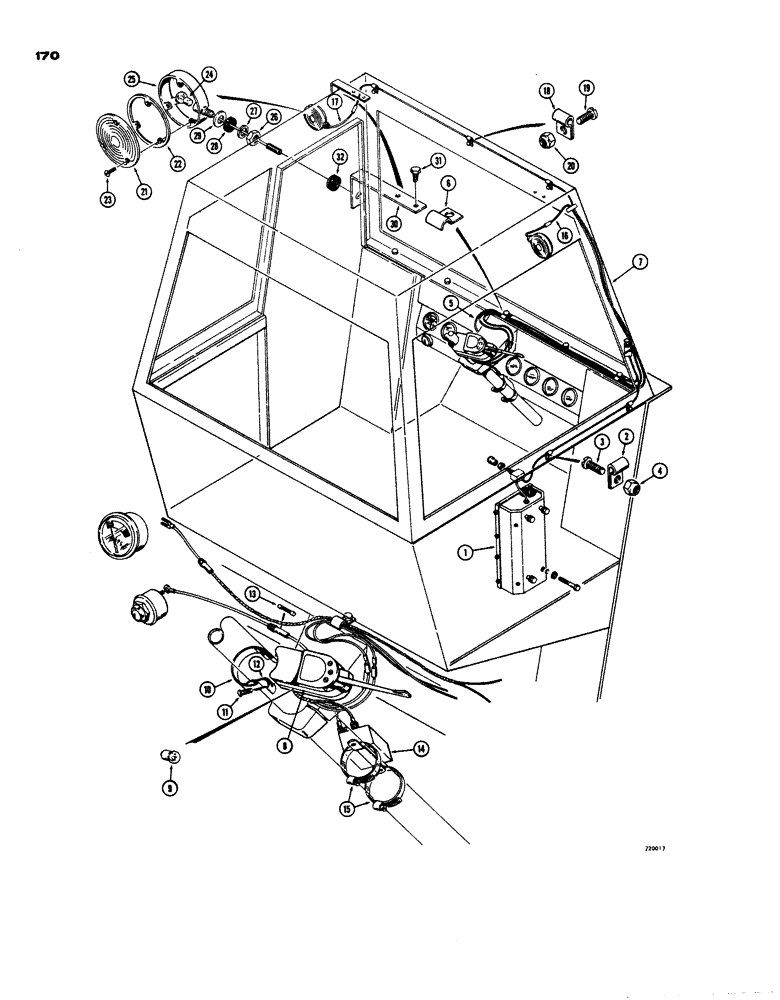

Запчасти Case W24 (170) - CAB WIRING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HEATER AND DEFROSTER - cab (See Figures 172 and 173A for proper heater)

1шт.

2

L18299

CLAMP

Harness

2шт.

3

173-205

X

RHMS - #10 - 24 NC x 5/8"

2шт.

4

86625057

NUT,#10-24, GB

2шт.

5

L18320

HARNESS - wiring, heater and wiper (Used on models without rollover protection canopy and with side mounted heater)

1шт.

5

L50817

SPARE PART Wiring, heater and wiper (Used on models without rollover protection canopy and with floor mounted heater)

1шт.

5

L51831

SEALANT

Wiring, heater and wiper (Used on models with rollover protection canopys)

1шт.

6

49838

CLAMP

Harness

2шт.

7

L48396

CAB - operator's (Machinery item) Used on models without rollover protection canopy, Includes Ref. 7A - 7C

1шт.

7

L50871

CAB - operator's (Machinery item) Used on models with rollover protection canopy (See figure 169D), Includes Ref. 7A - 7C

1шт.

7a

L35259

WIPER MOTOR

SPARE PART Front windshield (Not shown)

1шт.

7b

L35260

ARM

Wiper, front windshield (Not shown)

1шт.

7c

L35261

BLADE

Wiper, front windshield (Not shown)

1шт.

L17327

SIGNAL

Turn and flasher, Includes Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

9

A14928

BULB

Direction indicator (24 volt)

1шт.

10

L32658

STRAP

Mounting, signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 11 and 12

1шт.

11

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

Flat head machine (#8-23 NC x 1")

2шт.

12

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

13

NSS

NOT SOLD SEPARAT

FUSE - 6 amp

1шт.

14

L32657

FLASHER UNIT

Signal (When stock is exhausted, order L59781)

1шт.

14

L59781

FLASHER UNIT

Signal

1шт.

15

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Signal mounting

2шт.

16

L17326

WIRE HARNESS

ASSEMBLY - signal to flasher (RH)

1шт.

17

L17325

WIRE signal to flasher LH

1шт.

18

L18299

CLAMP

Wire

3шт.

19

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

(If used)

3шт.

19

187-1507

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

If used (Not shown)

3шт.

20

86625057

NUT,#10-24, GB

(Used with 173-212 screw only)

3шт.

L17324

LAMP

Flasher, double face (When stock is exhausted, order L43738 light for service)

2шт.

L43738

INTERIOR LIGHT

Flasher, double face, Includes Ref. 21 - 29

2шт.

L32214

LENS

KIT - light, flasher, Includes Ref. 21 - 23

2шт.

21

NSS

NOT SOLD SEPARAT

LENS - light, flasher

1шт.

22

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

24

L32257

BULB

Flasher light

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - light, flasher (Double face)

1шт.

26

129-125

NUT,1/2"-20, G5

1шт.

27

192-23

LOCK WASHER,1/2"

1шт.

28

L32256

WASHER

Rubber

1шт.

29

195-105

WASHER,7/16"

Standard wrot (Zinc plated)

1шт.

30

L51178

SPARE PART Flasher mounting (If used)

2шт.

31

187-1520

SCREW,Hex Hd, 3/8" x 5/8"

SCREW, Self-tapping (3/8"-16 NC), Bracket to cab

4шт.

32

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

Rubber (If used)

2шт.
