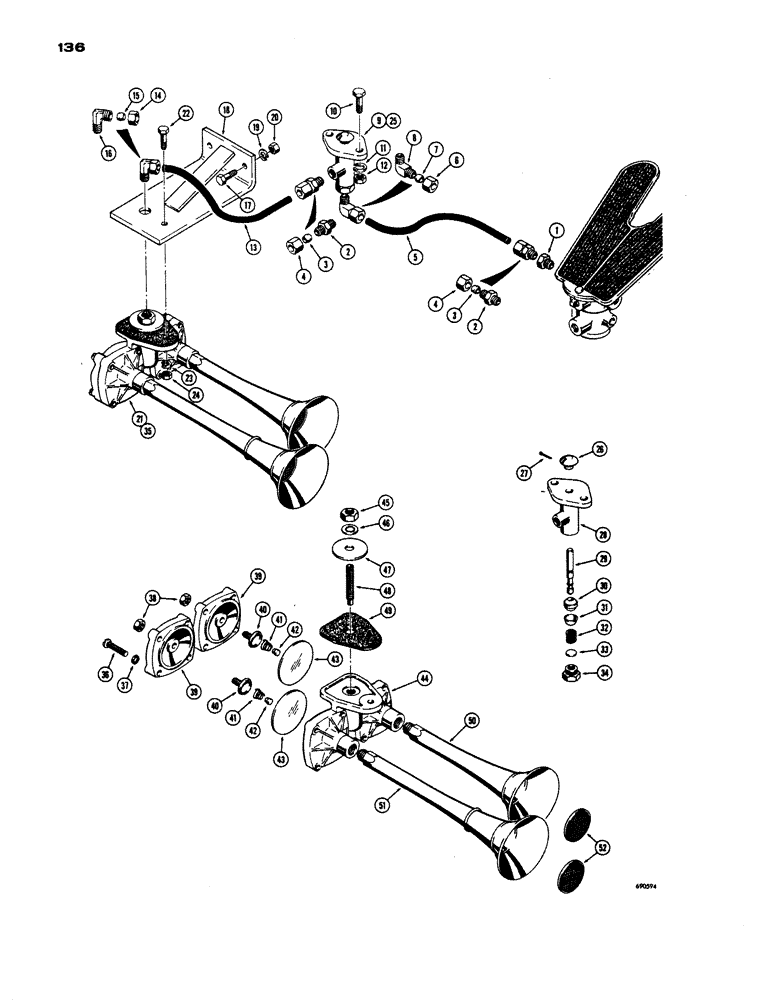

Запчасти Case W24 (136) - HORN AND RELATED PARTS (04) - ELECTRICAL SYSTEMS

1

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing - hex 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, 1/4" tube, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - straight, 1/4" tube

1шт.

3

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

4

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

5

L16536

TUBE,0.25" OD x 8" L

- to horn valve

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - 90 degree, 1/4" tube, Includes: Ref. 6 - 8

1шт.

6

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

7

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

8

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/4" tube

1шт.

9

L12647

VALVE

- horn, air (See parts list below)

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Valve to floor plate) Hex, 1/4"-20 x 1", G5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

L16534

TUBE,0.25" OD x 13" L

- valve to horn

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - 90 degree, 1/4" tube, Includes: Ref. 14 - 16

1шт.

14

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

15

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

16

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/4" tube

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

L40833

BRACKET

- horn mounting

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

21

L12648

HORN

- air type, before tractor Sn. 9107011 (See parts list below) When stock is exhausted, order L50225 horn for service

1шт.

21

L50225

HORN

- air type, Sn. 9107011 and after (Parts list Figure 137A)

1шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Horn mounting) Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

25-104

NUT,1/4"-20, G5

1шт.

25

L12647

VALVE

- horn, air, L12647, Includes: Ref. 26 - 34

1шт.

26

P2531301

CONTROL SLIDE

BUTTON - valve, L12647 horn

1шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", L12647 horn valve

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - valve, L12647 horn

1шт.

29

L31353

STEM

- valve, L12647 horn

1шт.

30

L31354

VALVE

- inlet, L12647 horn

1шт.

31

L31355

SEAT

- valve, L12647 horn

1шт.

32

L35089

SPRING

- valve, L12647 horn

1шт.

33

L31357

PLATE

- spring, L12647 horn valve

1шт.

34

L31358

PLUG

CAP - valve, L12647 horn

1шт.

35

L12648

HORN

ASSEMBLY - air, L12648, Includes: Ref. 36 - 52

1шт.

36

173-229

SCREW - machine, round head (1/4" - 20 NC x 7/8"), L12648 air horn

8шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , L12648 Air horn 1/4"

8шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), L12648 air horn

2шт.

39

L31351

COVER - horn body, L12648 air

2шт.

40

L31350

SEAT

- spring, L12648 air horn

2шт.

41

L31349

VALVE SPRING

SPRING - horn, L12648 air

2шт.

42

L31347

DIAPHRAGM

- horn, L12648 air

2шт.

43

L31348

SWITCH

DISC - contact, horn, L12648 air

2шт.

44

L31340

BODY - horn, L12648 air

1шт.

45

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF), L12648 air horn

1шт.

46

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , L12648 air horn Int Tooth, 5/8"

1шт.

47

L31343

WASHER - special, L12648 air horn

1шт.

48

L31341

COUPLING - horn, L12648 air

1шт.

49

L31342

GASKET - horn base, L12648 air

1шт.

50

L31344

BELL - horn, short, L12648 air

1шт.

51

L31345

BELL - horn, long, L12648 air

1шт.

52

L31346

SCREEN - horn bell, L12648 air

2шт.
