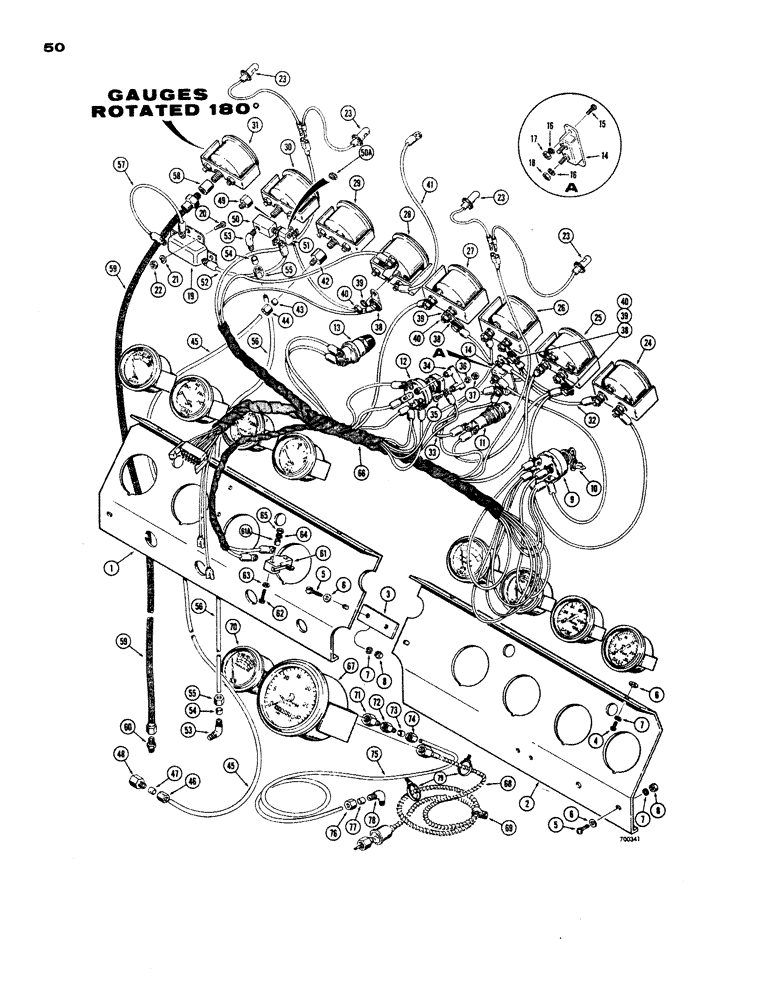

Запчасти Case W24 (050) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

L26792

PANEL - instrument, L.H.

1шт.

2

L26693

PANEL - instrument, R.H.

1шт.

3

L17660

BAR

TIE BAR - instrument panel

1шт.

4

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- truss head (1/4" - 20 NC x 1/2") Upper

4шт.

5

175-455

SCREW - truss head (1/4" - 20 NC x 7/8") Lower

4шт.

6

195-518

WASHER,1/4", SAE

- plain (1/4")

8шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

9

L17820

SWITCH

- ignition, Includes: Ref. 10 - 50A

1шт.

10

A20346

KEY

- ignition

1шт.

11

L13282

LAMP BASE

LIGHT - ignition indicator (Parts list Figure 48)

1шт.

12

L10376

SWITCH

- light

1шт.

13

A30858

SWITCH

- starting aid, push button

1шт.

14

A22877

BREAKER,40A

- circuit

1шт.

15

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

RHMS - #10 - 24 NC x 3/8"

2шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

17

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

18

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

2шт.

19

L15056

BUZZER

- warning, air pressure

1шт.

20

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- truss head (1/4" - 20 NC x 1/2")

2шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

23

L13275

LAMP

LIGHT - instrument panel (Parts list Figure 48)

4шт.

24

L13279

METER

GAUGE - voltmeter

1шт.

25

A19346

ELECTRICAL GAUGE

GAUGE - pressure, engine oil

1шт.

26

A19347

ELECTRICAL GAUGE

GAUGE - temperature, engine water

1шт.

27

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

28

A13756

GAUGE

- temperature, converter oil (When stock is ex- hausted, order L51460 gauge for service)

1шт.

28

L51460

ELECTRICAL GAUGE

GAUGE - temperature, converter oil

1шт.

29

A56447

ELECTRICAL GAUGE

GAUGE - pressure, clutch

1шт.

30

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

31

L13271

ELECTRICAL GAUGE

GAUGE - pressue, hydraulic pump inlet

1шт.

32

A18404

ELECTRICAL WIRE

WIRE - ground, voltmeter

1шт.

33

L13283

ELECTRICAL WIRE

WIRE - ground, circuit breaker to ignition indicator

1шт.

34

A14900

RESISTOR

- light switch

1шт.

35

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

1шт.

36

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1шт.

37

129-15

NUT,#6-32

1шт.

38

A19349

RESISTOR

- 75 OHM

4шт.

39

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

40

129-37

NUT,#10-32

4шт.

41

A18311

ELECTRICAL WIRE

WIRE - ground, used with A13756 converter oil temperature gauge only

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

COUPLING ASSEMBLY - flex tube, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

43

222-5045

SLEEVE,1/8" Tube

- coupling

1шт.

44

222-5058

NUT,3/8"-24

NUT - coupling

1шт.

45

L16078

TUBE,0.125" OD x 122" L

- clutch pressure gauge to transmission

1шт.

222-5000

HYD CONNECTOR,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 46 - 48

1шт.

46

222-5058

NUT,3/8"-24

NUT - connector

1шт.

47

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

48

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

49

217-1

ADAPTER

- air pressure gauge

1шт.

50

L13273

UNION TEE

TEE - special, air pressure gauge

1шт.

50a

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - pipe, square head (1/4" NPT) If used

1шт.

51

L10372

SWITCH

- warning brake air pressure

1шт.

52

L13277

WIRE -, Serial Range: buzzer-switch

1шт.

222-5021

ELBOW UNION,90 Degree, 3/8"-24 x 1/8" NPT, Hi-seal

ELBOW ASSEMBLY - flex tube, Includes: Ref. 53 - 55

2шт.

53

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

54

222-5045

SLEEVE,1/8" Tube

- elbow

1шт.

55

222-5058

NUT,3/8"-24

NUT - elbow

1шт.

56

L16537

TUBE,0.125" OD x 49.0" L

- air pressure gauge

1шт.

57

A31060

ELECTRICAL WIRE

WIRE - ground, air pressure warning

1шт.

58

218-915

HYD CONNECTOR,Sw, 1/8" NPT Fem x 1/8" NPSM Fem

UNION - adapter, gauge to tube

1шт.

59

L14389

HOSE

-, Serial Range: gauge-pump

1шт.

60

222-807

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/4" NPT

ADAPTER - straight, oil pressure gauge line

1шт.

61

D40921

SWITCH

- micro, neutral start

1шт.

Ref. 61 - (This natural start switch is mounted on the shift linkage, near the bottom of the steering column)

1шт.

61a

L11565

BEARING

SPACER - switch

2шт.

62

182-53

SCREW,Sl Pan Hd, #6 - 32 x 1 1/2"

- slotted head, machine (#6 - 32 NC x 1-1/2")

2шт.

63

195-10

WASHER,#8

- plain (3/16")

2шт.

64

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

2шт.

65

129-15

NUT,#6-32

2шт.

66

L17650

HARNESS

- forward, instrument panel (Used before tractor Sn. 9105012)

1шт.

66

L46260

HARNESS

- forward, instrument panel (Tractor Sn. 9105012 and after)

1шт.

67

A11190

TACHOMETER

- engine speed, R.P.M.

1шт.

68

A24101

CABLE

- tachometer

1шт.

69

A37179

CLIP

CLAMP - tachometer cable (If used)

1шт.

70

A19535

GAUGE ASSY.

GAUGE - fuel pressure (When stock is exhausted, order A8101 gauge and A28061 snubber for service0

1шт.

70

A8101

GAUGE

- fuel pressure (Order with A28061 snubber) When stock is exhausted, order L51456 gauge for service (If used)

1шт.

70

L51456

GAUGE

- fuel pressure (Also order A28061 snubber for units not originally equipped with snubber) If used

1шт.

71

A28061

FITTING

SNUBBER - fuel pressure gauge (If used)

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - oil pressure tube (If used), Includes: Ref. 72 - 74

1шт.

72

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

73

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

74

222-5058

NUT,3/8"-24

NUT - connector

1шт.

75

L45912

TUBE,62" L

- fuel pressure gauge (If used)

1шт.

222-5021

ELBOW UNION,90 Degree, 3/8"-24 x 1/8" NPT, Hi-seal

ELBOW ASSEMBLY - 90 degree, fuel pressure tube (If used), Includes: Ref. 76 - 78

1шт.

76

222-5058

NUT,3/8"-24

NUT - elbow

1шт.

77

222-5045

SLEEVE,1/8" Tube

- elbow

1шт.

78

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

79

L11541

CABLE TIE,203.2mm L, Nylon

CLAMP - fuel pressure tube to tachometer cable (If used)

2шт.
