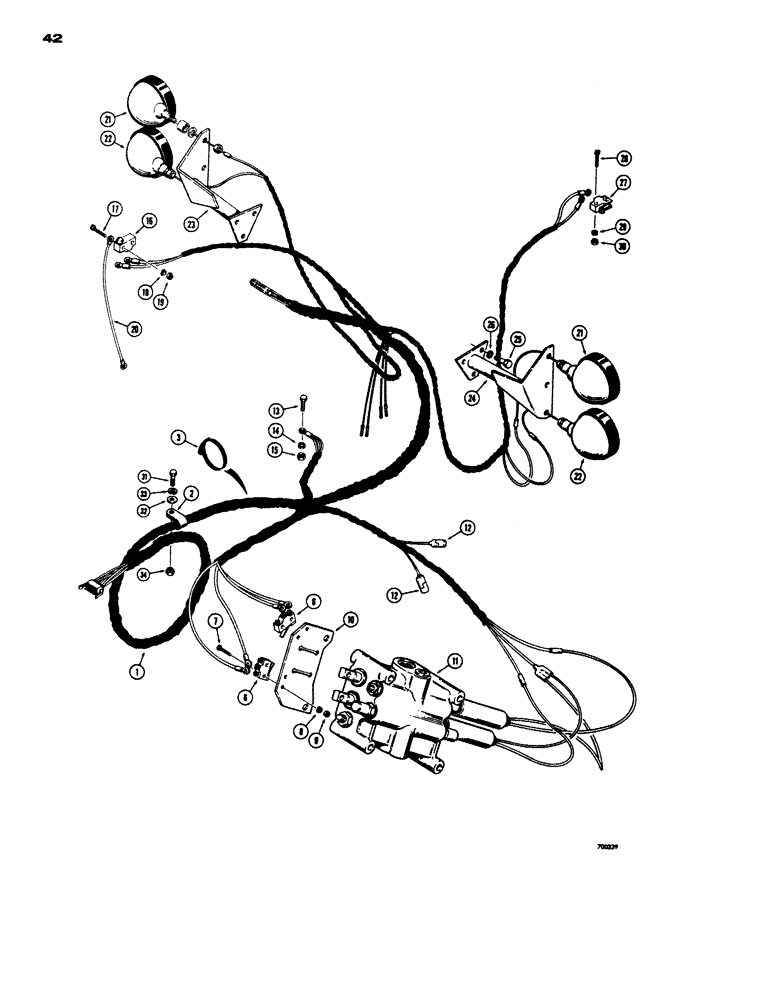

Запчасти Case W24 (042) - ELECTRICAL SYSTEM (FRONT HARNESS) (04) - ELECTRICAL SYSTEMS

1

L17565

WIRE HARNESS

Front frame, electrical (Used before tractor S/N 9105012)

1шт.

1

L46258

HARNESS

Front frame, electrical (Tractor S/N 9105012 and after)

1шт.

2

49836

CLAMP

Harness

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wiring harness

12шт.

6

L11349

SWITCH

Micro, tilt and lift (At valve)

2шт.

7

173-66

SCREW,Sl Rnd Hd, #6 - 32 x 1"

4шт.

8

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

4шт.

9

129-5

NUT,#6-32

4шт.

10

L17225

SPARE PART Micro switch mounting (2 spool valve only)

1шт.

10

L16777

SPARE PART Micro switch mounting (3 spool valve only)

1шт.

11

REF

INSTRUCTION

VALVE - loader control (Parts list figure 205 or 207)

1шт.

12

L11760

DIODE

Switch protecting, front frame harness

2шт.

13

15-416

X

HHCS - 1/4"-20 NC x 1"

1шт.

14

92-4

LOCK WASHER,1/4"

1шт.

15

25-104

NUT,1/4"-20, G5

1шт.

16

A19513

SWITCH

SWITCH - neutral start, Micro, lift (At height control)

1шт.

17

173-66

SCREW,Sl Rnd Hd, #6 - 32 x 1"

2шт.

18

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

2шт.

19

129-5

NUT,#6-32

2шт.

20

L13283

ELECTRICAL WIRE

WIRE Ground

1шт.

21

L13292

INTERIOR LIGHT

FLOOD - 24 volt, upper (Parts list Figure 48)

2шт.

22

L13291

LAMP

HEAD - 24 volt, lower (Parts list Figure 48)

2шт.

23

L40005

MOUNTING PARTS

BRACKET - light mounting (LH)

1шт.

24

L40006

MOUNTING PARTS

BRACKET - light mounting (RH)

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

27

D40921

SWITCH

Micro, tilt, Serial Range: (Return-dig)

1шт.

28

169-66

RHMS - #6 - 32 NC x 1

2шт.

29

192-5

LOCK WASHER,#6

2шт.

30

129-15

NUT,#6-32

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

32

95-6

WASHER,3/8"

Standard wrot

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

1шт.
