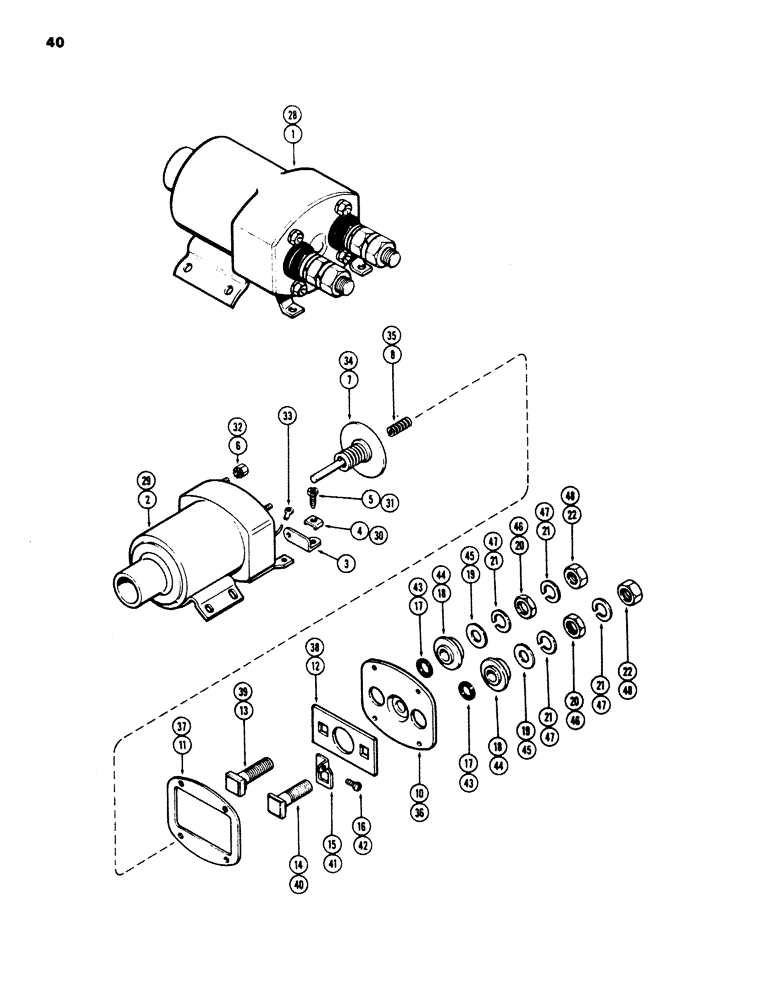

Запчасти Case W24 (040) - A15358 SOLENOID, (504B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A15358

SOLENOID

ASSY. - (Delco #1119832) (Production Only) (Order A42376) (See Ref. 28), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE

1шт.

3

R15161

CONNECTOR, ELEC

CONNECTOR - ground

1шт.

4

R15182

CLIP

- terminal

1шт.

5

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

1шт.

6

D32500

NUT

- plate to case stud (w/skpf. washer)

4шт.

7

D32498

CONTACT

DISC ASSY. - contact

1шт.

8

D32499

SPRING

- contact disc return

1шт.

D29577

PLATE ASSY., Includes: Ref. 10 - 22

1шт.

10

D32504

COVER

PLATE - terminals & case cover

1шт.

11

A42260

GASKET

-, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

13

D32505

STUD

- battery terminal (1-1/2" thread length)

1шт.

14

D32506

STUD

- starter terminal (1-3/16" thread length)

1шт.

15

D29910

SUPPORT

TERMINAL - coil lead

1шт.

16

175-92

SCREW - coil lead (#10-32 x 3/16" truss hd.)

1шт.

17

D32510

BUSHING

- terminal plate insulators

2шт.

18

D32508

INSULATOR

BUSHING - terminal studs insulating

2шт.

19

D30006

WASHER

- term. studs (1/2 x 7/8 x 1/32" steel)

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - terminal studs ( lock) 1/2"

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.

28

A42376

SWITCH

SOLENOID ASSY. - (Delco #1119848-B) (Repairs Only), A42376, Includes: Ref. 29 - 48

1шт.

29

NSS

NOT SOLD SEPARAT

CASE, A42376 solenoid

1шт.

30

A42407

CLAMP

CLIP - terminal, A42376 solenoid

1шт.

31

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip, A42376 solenoid

1шт.

32

D32500

NUT

- plate to case studs (w/skpf. washer), A42376 solenoid

4шт.

33

A42408

ELECTRICAL WIRE

WIRE - ground, A42376 solenoid

1шт.

34

D32498

CONTACT

DISC ASSY. - contact, A42376 solenoid

1шт.

35

A42411

VALVE SPRING

SPRING - contact disc return, A42376 solenoid

1шт.

A42412

PLATE

ASSY., A42376 solenoid, Includes: Ref. 36 - 48

1шт.

36

D42410

PLATE - terminals & case cover, A42376 solenoid

1шт.

37

D42260

GASKET - plate to case, A42376 solenoid

1шт.

38

D32507

RUBBER INSULATOR

INSULATOR - plate, A42376 solenoid

1шт.

39

A42413

STUD

- battery term. (1-21/32" thread length), A42376 solenoid

1шт.

40

D32506

STUD

- starter term. (1-3/16" thread length), A42376 solenoid

1шт.

41

A42406

SUPPORT

TERMINAL - coil lead, A42376 solenoid

1шт.

42

175-56

SCREW - coil lead (#6-32 x 3/16" truss hd.), A42376 solenoid Slotted Truss Hd, #6-32 x 3/16"

1шт.

43

D32510

BUSHING

- term. plate insulators, A42376 solenoid

2шт.

44

A42409

BUSHING

- term. studs insulators, A42376 solenoid

2шт.

45

D30004

WASHER

- terminal studs insulation (1/2 x 1-3/16 x 3/32"), A42376 solenoid

2шт.

46

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs, A42376 solenoid Jam, 1/2"-13, G5

2шт.

47

192-113

LOCK WASHER,1/2"

WASHER - term. studs ( lock), A42376 solenoid 1/2"

4шт.

48

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs, A42376 solenoid 1/2"-13, G5

2шт.
