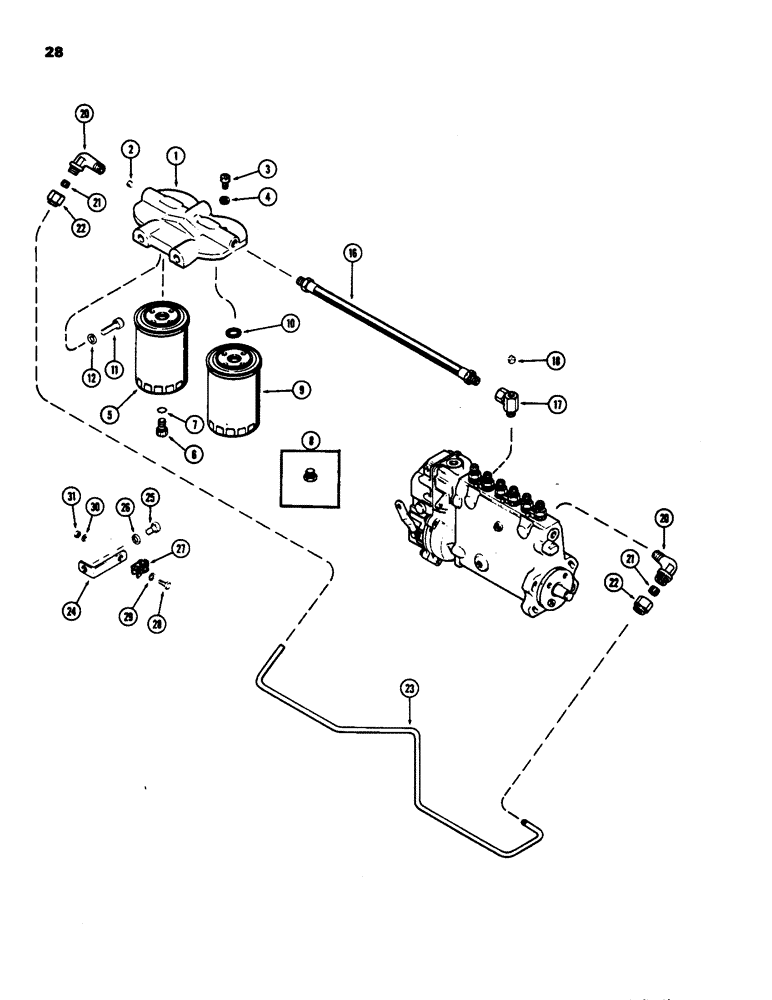

Запчасти Case W24 (028) - FUEL FILTER SYSTEM, (504B) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A62339
HEAD
ASSY. - filter, Includes: Ref. 2 - 10
1шт.
2
221-1041
PLUG
- 1/8" P.T. sltd. hd.
1шт.
3
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- bleed (#10-32 x 5/16" sltd. rd. hd.)
2шт.
4
A20662
GASKET
WASHER - bleed screw (3/16 x 3/8 x 3/64" fiber)
2шт.
CASA41745
FUEL FILTER
ELEMENT KIT - filter replacement, Includes: Ref. 5 - 10
1шт.
5
NSS
NOT SOLD SEPARAT
FILTER ASSY. - 1st stage, Includes: Ref. 6 - 8
1шт.
6
G49080
PLUG
- filter drain (3/8"-24, 12 pt. hd., plastic)
1шт.
7
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk (Use w/plastic Plug)
1шт.
8
221-1661
PLUG
- drain (1/8" P.T. hex. hd., metal)
1шт.
9
NSS
NOT SOLD SEPARAT
FILTER ASSY. - 2nd stage, Includes: Ref. 10
1шт.
10
A42315
GASKET
-, Serial Range: filter-head
1шт.
11
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Filter mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
12
92-6
LOCK WASHER,3/8"
2шт.
16
A58716
HOSE
- filter to pump (17" long)
1шт.
17
A20539
FITTING
UNION -, Serial Range: hose-pump
1шт.
18
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - union (1/8" P.T. sq. hd.)
1шт.
20
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSY. - filter tube, Includes: Ref. 21 and 22
2шт.
21
222-103
SLEEVE,5/16" Tube
1шт.
22
222-113
TUBE NUT,9/16"-24
NUT - for 5/16" tube
1шт.
23
A62342
TUBE
- pump to 1st stage filter
1шт.
24
A64856
BRACKET
- tube support
1шт.
25
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
Bracket to block Hex, 3/8"-16 x 5/8", G5, Full Thd
1шт.
26
92-6
LOCK WASHER,3/8"
2шт.
27
A62209
CLAMP,5/16", Insul, 1/4" Bolt
CLIP - tube to bracket
1шт.
28
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd
1шт.
29
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER - 1/4" int./ext/ skpf.
1шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
31
25-104
NUT,1/4"-20, G5
1шт.
Выбрано товаров: 28
