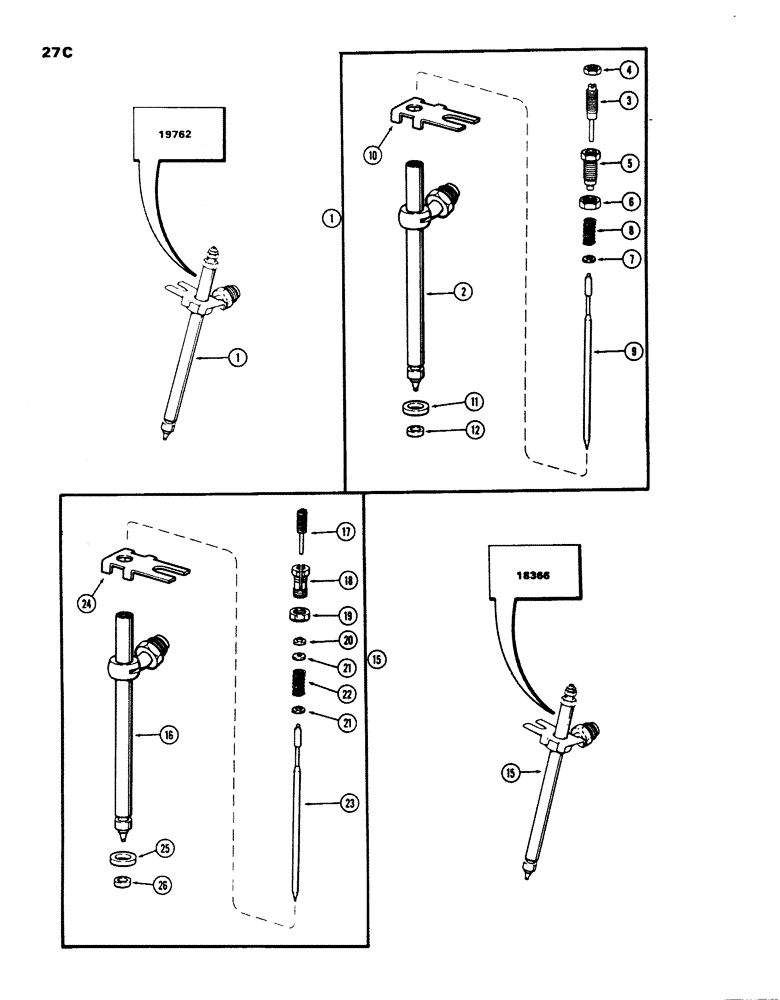

Запчасти Case W24 (027C) - A64439 INJECTION NOZZLE, (504BD) DIESEL ENGINE, 1ST USED ENG. SER .NO. 2504029 (03) - FUEL SYSTEM

1

A64439

NOZZLE CAP

NOZZLE ASSY. - injector (3200 P.S.I.) (Supplies No. 19762 w/yellow & blue color code), Includes: Ref. 2 - 12

6шт.

Whenever nozzle is removed from head the seal A41402 and washer A41403 must be replaced before nozzle is taken back in head. NOZZLE USED PRIOR TO ENGINE SN. 2504029.

1шт.

A140830R

REMAN-INJECT NOZZLE

W24 (1ST USED ENG. SER .NO. 2504029), Reman for new PN A64439

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- spring

1шт.

8

A43733

SPRING

- pressure adj. (9/16" free length w/red stain)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle (3/8 x 9/16 x 1/8")

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (5/16 x 3/8 x 1/8")

1шт.

15

A59092

NOZZLE INJECTION

NOZZLE ASSY. - injector (2800 P.S.I.) (Suppliers No. 18366 w/white band), A59092 used prior to engine, Includes: Ref. 16 - 26, Start Serial: 2504029

6шт.

Whenever nozzle is removed from head the seal A41402 and washer A41403 must be replaced before nozzle is taken back in head. NOZZLE USED PRIOR TO ENGINE SN. 2504029.

1шт.

A140830R

REMAN-INJECT NOZZLE

W24 (1ST USED ENG. SER .NO. 2504029) START SERIAL: 2504029, Reman for new PN A59092

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle, A59092 injection used prior to engine, Start Serial: 2504029

1шт.

17

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, A59092 injection nozzle used prior to engine, Start Serial: 2504029

1шт.

18

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, A59092 injection nozzle used prior to engine, Start Serial: 2504029

1шт.

19

A42424

LOCK NUT

- lock, pressure adjusting crew, A59092 injection nozzle used prior to engine, Start Serial: 2504029

1шт.

20

A41407

WASHER

- ball, A59092 injection nozzle used prior to engine, Start Serial: 2504029

1шт.

21

A41401

SEAT

- pressure spring, A59092 injection nozzle used prior to engine, Start Serial: 2504029

2шт.

22

A41444

VALVE SPRING

SPRING - pressure adj. (17/32" free length, plain), A59092 injection nozzle used prior to engine, Start Serial: 2504029

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A59092 injection used prior to engine, Start Serial: 2504029

1шт.

24

A41768

PLATE

- locating, nozzle, A59092 injection used prior to engine, Start Serial: 2504029

1шт.

25

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle (3/8 x 9/16 x 1/8"), A59092 injection used prior to engine, Start Serial: 2504029

1шт.

26

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (5/16 x 3/8 x 1/8"), A59092 injection nozzle used prior to engine, Start Serial: 2504029

1шт.
