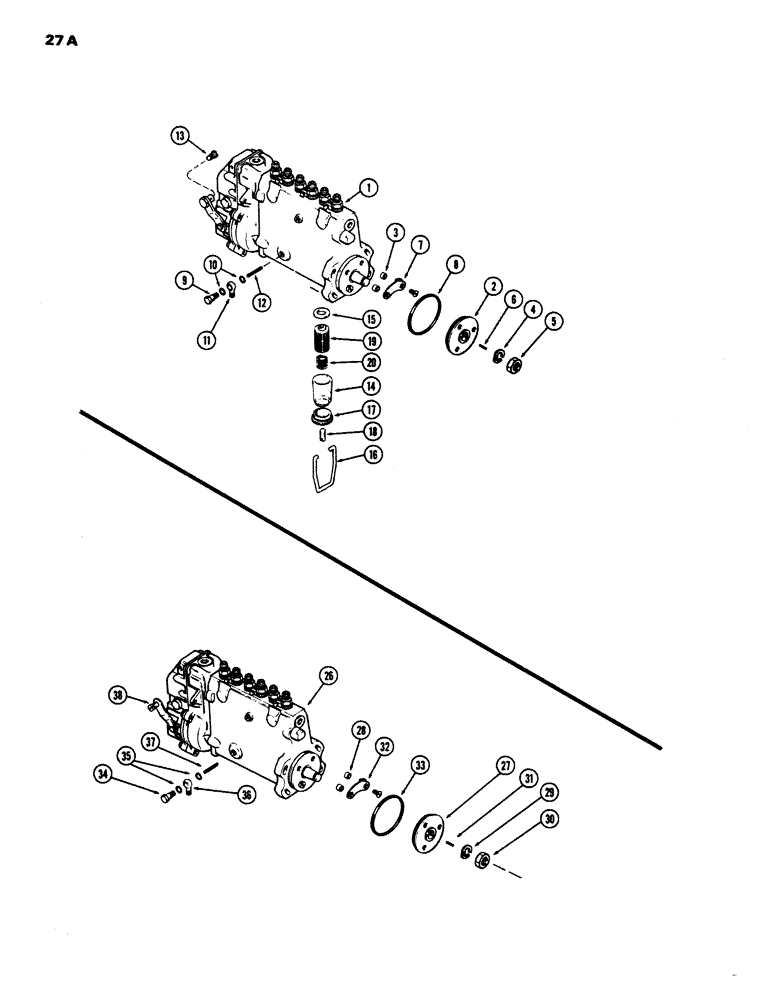

Запчасти Case W24 (027A) - A62332 INJECTION PUMP, (504BD) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

1

A62332

PUMP ASSY. - fuel injection (without hand primer) (original equipment) (Order A62333), Includes: Ref. 2 - 20

1шт.

1

A62333

PUMP

ASSY. - fuel injection (with hand primer), Includes: Ref. 2 - 20

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - timing pointer

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, lube oil tube

1шт.

12

A25190

SPRING

- tube fitting

1шт.

13

A42829

SCREW,M4 x 3/4" x 0.75mm

- pump stop cable

1шт.

14

A43347

BOWL

- filter, transfer pump

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump

1шт.

20

A43345

SPRING

- element

1шт.

A43351

SEAL

GASKET - copper, fuel ports (Not Illust.)

2шт.

A43343

CARTRIDGE

PRIMER - hand pump (Not Illust.)

1шт.

26

A58537

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection, A58537 used prior to engine, Includes: Ref. 27 - 38, Start Serial: 2323001

1шт.

Ref. 26 - Replaced by A62333

1шт.

27

A41853

HUB

- pump drive, A58537 injection used prior to engine, Start Serial: 2323001

1шт.

28

A41855

BUSHING

SPACER - hub, A58537 injection pump used prior to engine, Start Serial: 2323001

2шт.

29

A41851

LOCK WASHER

- lock, hub nut, A58537 injection pump used prior to engine, Start Serial: 2323001

1шт.

30

A41852

LOCK NUT

- hub, A58537 injection pump used prior to engine, Start Serial: 2323001

1шт.

31

A41850

KEY

- hub to shaft, A58537 injection pump used prior to engine, Start Serial: 2323001

1шт.

32

A41854

INDICATOR

POINTER - pump adjustment, A58537 injection used prior to engine, Start Serial: 2323001

1шт.

33

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting, A58537 injection used prior to engine, Start Serial: 2323001

1шт.

34

A25192

BANJO BOLT

BOLT - oil tube fitting, A58537 injection pump used prior to engine, Start Serial: 2323001

1шт.

35

A22381

WASHER

- tube fitting, copper, A58537 injection pump used prior to engine, Start Serial: 2323001

2шт.

35

A25191

FITTING

- oil tube to pump, banjo, A58537 injection used prior to engine, Start Serial: 2323001

1шт.

37

A25190

SPRING

- oil tube fitting, A58537 injection pump used prior to engine, Start Serial: 2323001

1шт.

38

A42829

SCREW,M4 x 3/4" x 0.75mm

- stop control rod, A58537 injection pump used prior to engine, Start Serial: 2323001

1шт.
