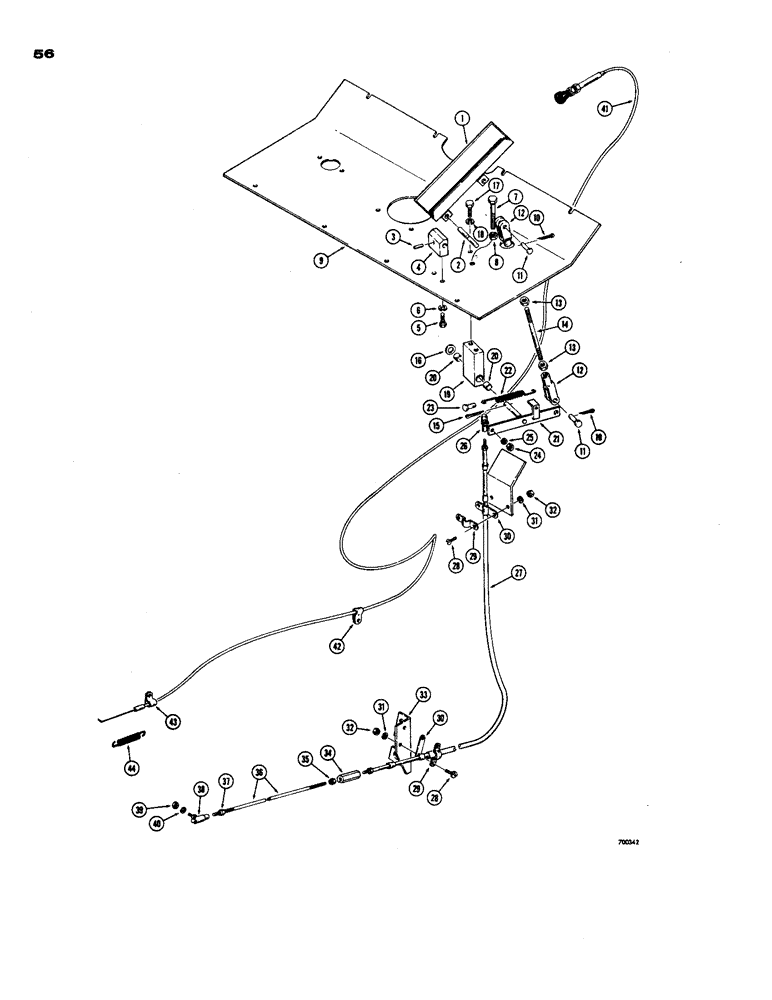

Запчасти Case W24 (056) - ACCELERATOR AND LINKAGE (02) - ENGINE

1

L41598

PEDAL

- accelerator, foot feed (When stock is exhausted, order L15819 pedal and L12421 pad for service)

1шт.

1

L15819

PEDAL - accelerator, foot feed

1шт.

1a

L12421

PAD

- accelerator pedal

1шт.

2

L12427

PIN

- pedal pivot

1шт.

3

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, (Pivot pin retaining) 3/16" x 5/8", Slotted

1шт.

4

L12426

BLOCK - accelerator pedal mounting

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Block mounting) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3" (Pedal stop)

1шт.

8

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

1шт.

9

L15504

PLATE ASSY.

PLATE - floor (See figure 169 for complete view and mounting hardware)

1шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

12

G46267

YOKE - accelerator connecting rod

2шт.

13

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

2шт.

14

L26885

ROD

- accelerator

1шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

16

95-10

WASHER,5/8"

- standard wrot () 5/8"

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Block mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

L26886

BLOCK

ASSEMBLY- accelerator lever pivot, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BLOCK - accelerator lever pivot

1шт.

20

L14229

BEARING

BUSHING - block

2шт.

21

L26739

LEVER

AND SHAFT - accelerator linkage

1шт.

22

L18988

VALVE SPRING

SPRING - lever return

1шт.

23

T35391

PIN - spring anchor

1шт.

24

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

26

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, accelerator linkage

1шт.

27

L14237

BOWDEN CONTROL

CABLE - accelerator, lever to fuel injection pump

1шт.

28

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillester head (#10 - 2 NF x 3/4")

4шт.

29

L12441

CLAMP

- accelerator cable

2шт.

30

L12448

- clamp

2шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

32

129-37

NUT,#10-32

4шт.

33

L14236

BRACKET - accelerator cable mounting

1шт.

34

L14227

CONNECTOR, ELEC

TURNBUCKLE - accelerator, Serial Range: cable-rod

1шт.

35

129-315

NUT,#10-32, LH

1шт.

36

L14228

ROD

- accelerator linkage, at fuel injection pump

1шт.

37

129-37

NUT,#10-32

1шт.

38

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, at fuel injection pump

1шт.

39

129-37

NUT,#10-32

1шт.

40

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

41

L19884

CABLE

- fuel shut off (When stock is exhausted, order L45111 cable and 49845 clamp for service)

1шт.

41

L45111

CABLE PULLING GRIP

CABLE - fuel shut off

1шт.

42

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cable

1-2шт.

43

49845

CLAMP

- cable (Used with L45111 cable only)

1шт.

44

L46364

SPRING

- return, fuel shutoff

1шт.
