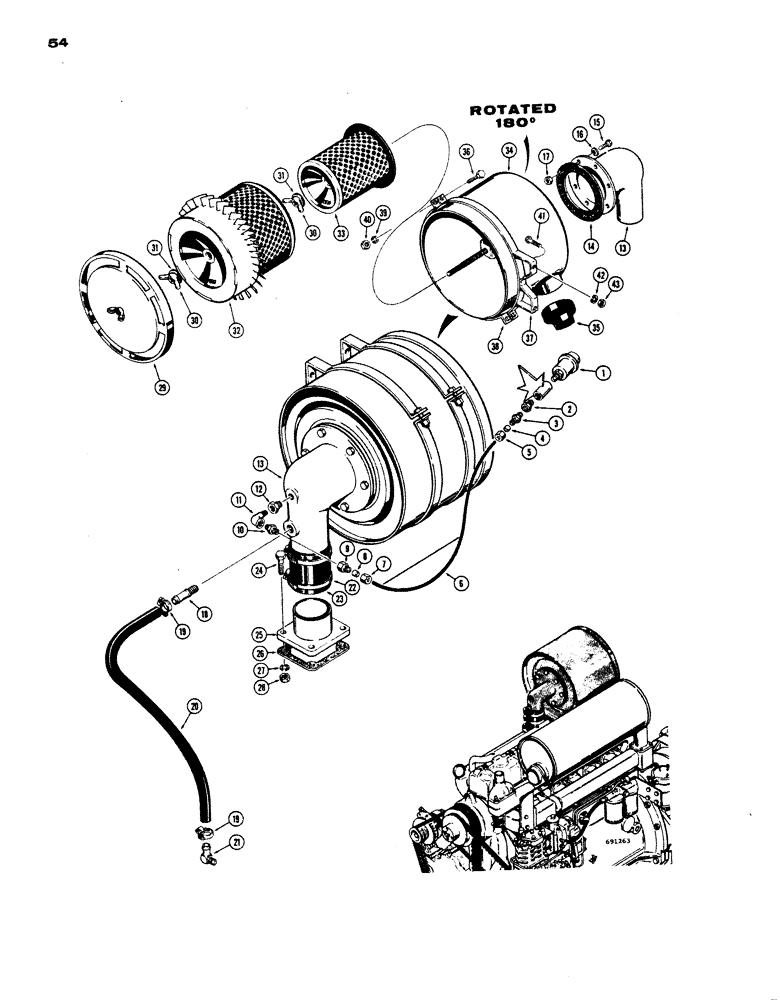

Запчасти Case W24 (054) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

1

L14604

INDICATOR

- air cleaner restriction (When stock is exhaused, order L40280 indicator and 217-1071 connector for service

1шт.

1

L40280

DIPSTICK

INDICATOR - air cleaner restriction

1шт.

1a

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

CONNECTOR - indicator, 1/4" to 1/8" reducer (Used with L40280 indicator only) Not shown

1шт.

2

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCING BUSHING - pipe (1/4" NPT x 1/8" NPT)

1шт.

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Flex 1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube - flex tube 5/16"-24, 45º Fl, Comp

1шт.

6

L14603

TUBE,24" L

- indicator to air inlet tube

1шт.

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - flex tube, Includes: Ref. 7 - 9

1шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube - flex tube 5/16"-24, 45º Fl, Comp

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

Flex 1/8" Tube, Comp

1шт.

9

NSS

NOT SOLD SEPARAT

COUPLING - flex tube

1шт.

10

D36264

FITTING

CONNECTOR - special, filter type

1шт.

11

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree (1/8" NPT)

1шт.

12

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCING BUSHING - pipe (1/4" NPT x 1/8" NPT)

1шт.

13

L17546

ELBOW UNION

ELBOW - air cleaner to intake manifold

1шт.

14

L15829

GASKET

- elbow to air cleaner

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Elbow to air cleaner Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

18

A14432

NIPPLE - hose, at air intake elbow

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

20

L10357

INTAKE AIR HOSE,0.75" ID x 36.00", SAE 20R1

- Air Intake Elbow at Compressor 0.75" ID x 36.00", SAE 20R1

1шт.

21

A9155

90 ELBOW

STEM - hose

1шт.

22

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

23

L15780

HOSE

- air intake elbow to manifold adapter

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

25

L14206

ADAPTER

- intake, Serial Range: elbow-manifold

1шт.

26

A58910

GASKET

- adapter to intake manifold

1шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

L15775

AIR CLEANER ASSEMBLY - dry type, Includes: Ref. 29 - 43

1шт.

29

L32511

COVER

- air cleaner

1шт.

30

D37977

CAP

NUT - winged type

2шт.

31

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

WASHER - nut

2шт.

32

L32512

AIR CLEANER

ELEMENT - air cleaner, primary

1шт.

33

L32513

AIR CLEANER

ELEMENT - air cleaner, secondary

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

35

L30414

VALVE

DUST UNLOADER - air cleaner, vacuator valve

1шт.

36

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

37

L15776

BRACKET AND CLAMP ASSEMBLY - air cleaner

2шт.

38

L14430

BAND

CLAMP - air cleaner

2шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.
