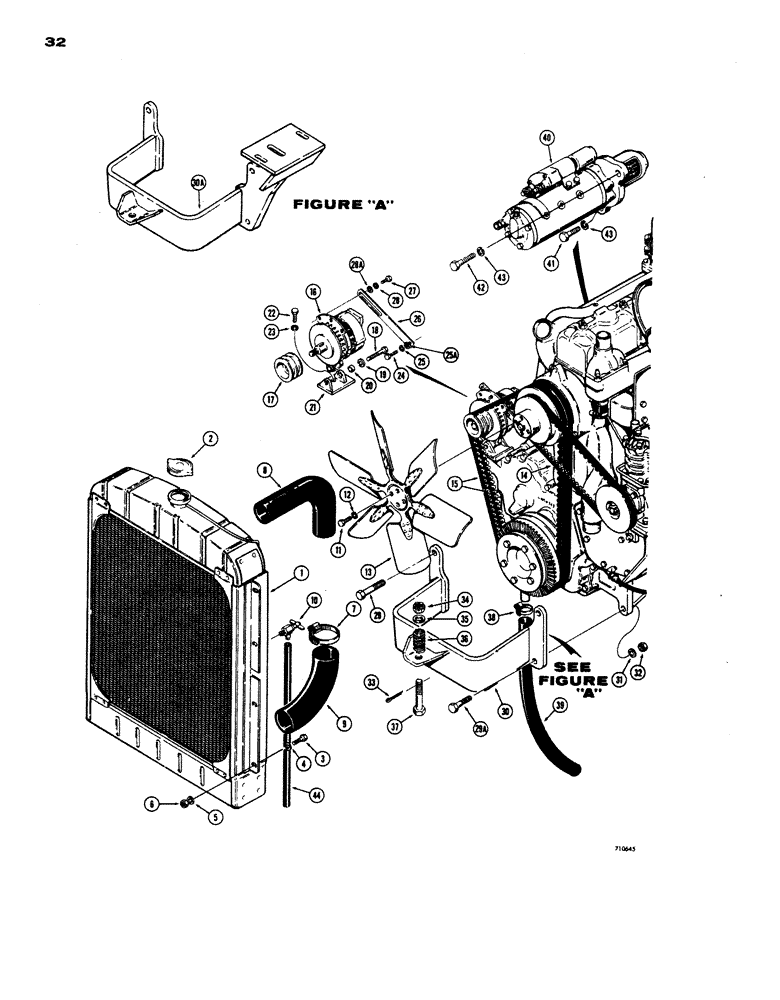

Запчасти Case W24 (032) - ENGINE, RADIATOR AND RELATED PARTS (02) - ENGINE

1

L15781

RADIATOR

- cooling, Includes: Ref. 2

1шт.

Ref. 1 - Shroud for this radiator is N6188

1шт.

Ref. 1 - D83221 Radiator Bottom Tank Oil Cooler adopted as a component of L15781

1шт.

2

D25826

CAP

- radiator

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

4

195-26

WASHER

WASHER - plain (3/8")

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose

4шт.

8

L15867

RADIATOR HOSE,2.50" ID x 10.50", SAE 20R4 Class SC

Upper 2.50" ID x 10.50", SAE 20R4 Class SC

1шт.

9

L15866

RADIATOR HOSE,2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

Lower 2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

1шт.

10

A23655

VALVE

- radiator drain

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fan to fan pulley Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

L48343

FAN

- radiator cooling ( replaced A15520 )

1шт.

14

L16621

BELT,44.00" L

Compressor drive (Before S/N 9107067) 44.00" L

1шт.

14

L50593

BELT,49.25" L

Compressor (S/N 9107067 and after) 49.25" L

1шт.

15

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt, Alternator drive 0.69" W x 65.75" L

1шт.

16

A41360

ALTERNATOR

- electrical (Parts list Figure 34)

1шт.

17

A41361

PULLEY

- alternator

1шт.

18

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

L18857

SPACER

- alternator

1шт.

21

L18700

BRACKET

- alternator

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

25a

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

26

A59098

STRAP

- alternator adjusting

1шт.

27

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

28a

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

29

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Mounting bracket to engine, R.H. side) Both production phases Hex, 3/4"-10 x 2 3/4", G5

2шт.

29a

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Mounting bracket to engine, L.H. side) Before S/N 9107001 Hex, 3/4"-10 x 2 3/4", G5

2шт.

29a

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4" (Mounting bracket to engine, L.H. side) Sn. 9107001 to 9107067

2шт.

29a

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(Mounting bracket to engine, L.H. side) S/N 9107067 and after Hex, 3/4"-10 x 3 1/4", G5

2шт.

30

L19581

BRACKET - engine mounting (Before Sn. 9107067)

1шт.

30a

L48579

BRACKET

- engine mounting (Sn. 9107067 and after)

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Engine mounting (S/N 9107067 and after) 3/4"

4шт.

32

25-1012

NUT,3/4"-10, G5

4шт.

33

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

34

25-1812

NUT - hex. slotted (3/4" - 10 NC)

1шт.

35

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

1шт.

36

A12227

VALVE SPRING

SPRING - engine mount

1шт.

37

L19350

BOLT - special, engine mount to rear frame

1шт.

38

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (If Used)

1шт.

39

L14221

HOSE

- engine breather tube extension (If Used)

1шт.

40

D42964

X

STARTER - electrical (Parts list Figure 36 and 38)

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

42

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

1шт.

43

92-8

LOCK WASHER,1/2"

3шт.

44

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.
