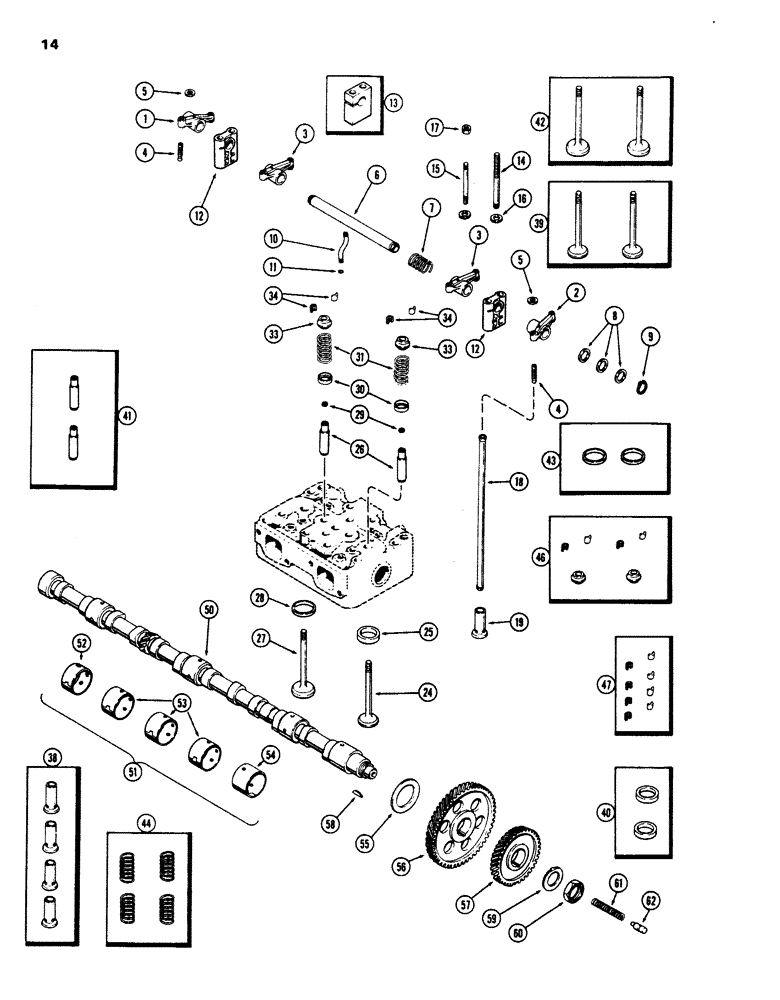

Запчасти Case W24 (014) - VALVE MECHANISM AND CAMSHAFT, (504B) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker (Nos. 1, 3 & 5 exhaust valves)

3шт.

2

A58656

ARM

- rocker (Nos. 2, 4 & 6 exhaust valves)

3шт.

3

A58654

ARM

- rocker (intake valves)

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm adjusting

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw, 3/8" N.F. hex. jam)

12шт.

6

A57532

SHAFT

ASSY. - rocker arms

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- rocker shaft ends, 29/32 x 1-5/16 x .028

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arms

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, 3/16 x 5/16 x 1/16"

3шт.

12

A61128

BRACKET

- rocker shaft (aluminum)

6шт.

13

A27881

BRACKET

- rocker shaft (steel)

6шт.

14

A60885

STUD

- bracket, 7/16" N.C. x 6"

6шт.

15

A58659

STUD

- bracket, 7/16" N.C. x 4-5/16"

6шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64" (used w/A61128 brkt.)

12шт.

17

25-117

NUT,7/16"-20, G5

- 7/16" N.C. hex.

12шт.

18

A58596

ROD

ASSY. - push

12шт.

19

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 38)

12шт.

24

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 39)

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 40)

6шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - intake & exhaust valves (Order ref. 41)

12шт.

27

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 42)

6шт.

28

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat (Order ref. 43)

6шт.

29

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

30

A58623

SEAT

- valve springs

12шт.

31

NSS

NOT SOLD SEPARAT

SPRING - valves (Order ref. 44)

12шт.

33

NSS

NOT SOLD SEPARAT

RETAINER - valve (Order ref. 46)

12шт.

34

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Keepers) (Order ref. 47)

24шт.

38

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.

39

A41753

VALVE

KIT - exhaust (Set of 2)

3шт.

40

A41757

INSERT

KIT - exhaust valve (Set of 2)

3шт.

41

A41781

GUIDE

KIT - intake & exhaust valve (Set of 2)

6шт.

42

A41754

VALVE

KIT - intake (Set of 2)

3шт.

43

A42259

INSERT

KIT - intake valve (Set of 2)

3шт.

44

A42895

SPRING

KIT - valves (Set of 4) (replaces A41755)

3шт.

46

A21657

LOCK

RETAINER KIT - (Set of 2 retainers & 4 locks)

6шт.

47

A40352

LOCK

KIT - valve keepers (Set of 8)

3шт.

50

A62734

CAMSHAFT

- (1st used eng. ser. no. 2323279)

1шт.

50

A58591

CAMSHAFT

- (Used prior to eng. ser. no. 2323279) (Order 1-A62734 camshaft & 1-126-227 key)

1шт.

51

A23544

BUSHING

KIT - camshaft, Includes: Ref. 52 - 54

1шт.

52

NSS

NOT SOLD SEPARAT

BUSHING - rear, 15/32" wide

1шт.

53

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1-27/64" wide

3шт.

54

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-41/64" wide

1шт.

55

A21017

WASHER

- thrust, 2-1/4 x 3-1/4 x 1/8"

1шт.

56

A58592

GEAR

- camshaft timing

1шт.

57

A58593

GEAR

- idler drive

1шт.

58

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro (used w/A62734 camshaft)

1шт.

58

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Used w/A58591 camshaft #C, 5/16" x 1 1/8"

1шт.

59

A58594

LOCK WASHER

- tab

1шт.

60

A58595

NUT

- timing gear retaining

1шт.

61

CASA27853

SPRING

- thrust plunger

1шт.

62

A27852

PLUNGER

- thrust, camshaft

1шт.
