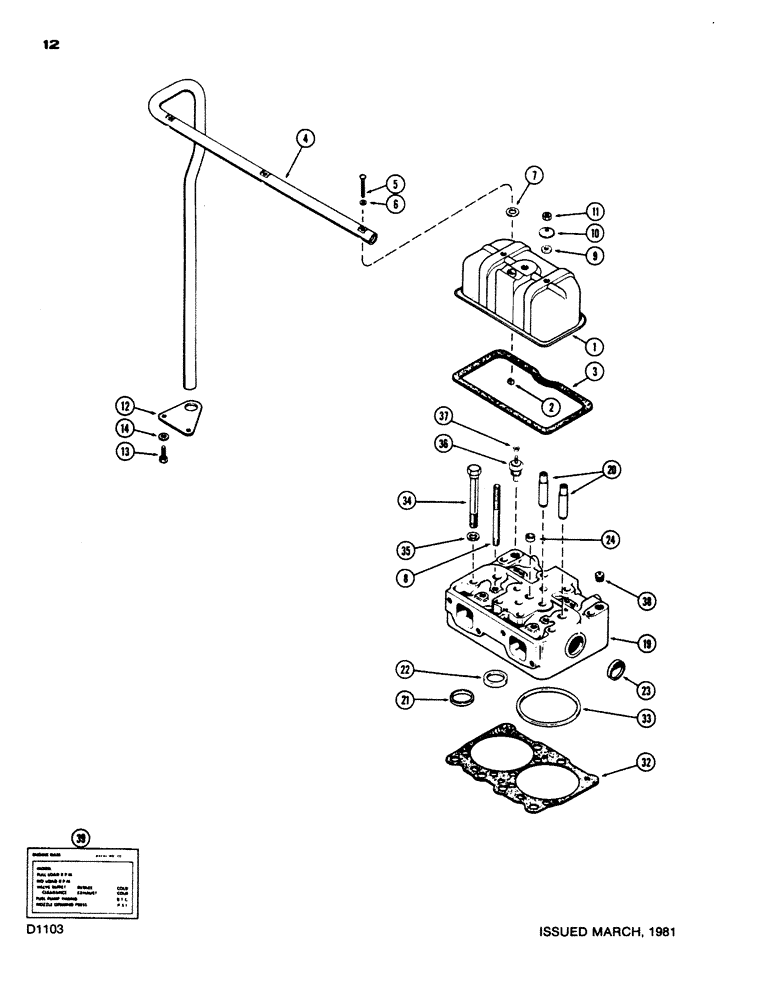

Запчасти Case W24 (012) - CYLINDER HEAD AND COVER, 504BD DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube, 1/4" NC cage

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover (Replaces A58928)

3шт.

4

A59053

TUBE

TUBE - breather

1шт.

5

75-440

SCREW

SCREW - breather tube, 1/4 x 2-1/2" NC round head

3шт.

6

A34133

GASKET

GASKET - tube, upper (fiber)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

3шт.

8

A67121

STUD

STUD - bracket and head cover, 7/16" NC x 6"

6шт.

9

A23684

GASKET

GASKET - cover stud (rubber)

6шт.

10

A23683

WASHER

WASHER - cover stud (dished)

6шт.

11

25-117

NUT,7/16"-20, G5

NUT - cover retaining, 7/16" NF hex

6шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" NC sems

2шт.

14

195-25

WASHER,3/8"

WASHER - spacer, 13/32 x 13/16 x 1/16"

1шт.

19

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes: Ref. 20 - 24

3шт.

19

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

19

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

20

A41783

GUIDE

GUIDE - intake and exhaust valve

4шт.

21

A60557

INSERT

INSERT - intake valve seat

2шт.

22

A66192

INSERT

INSERT - exhaust valve seat

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-41/64" (41.27 mm) cup type

2шт.

24

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

1шт.

32

REF

INSTRUCTION

GASKET - cylinder head (See Gasket Kits, Figure 25)

3шт.

34

A62732

STEP BOLT

BOLT - cylinder head (5/8 x 5-5/8" NC)

30шт.

35

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

36

A65588

SENDER UNIT

- temperature sending (in rear head) (Replaces F13156)

1шт.

37

129-661

NUT

NUT - sending unit, #10 NF hex, brass

1шт.

38

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - sending unit hold, 3/8" PT socket head

5шт.

39

321-2326

SPARE PART DECAL - engine data (For 3200 PSI nozzle) (Used engine serial no. 2504029 and after)

1шт.

39

321-1387

SPARE PART DECAL - engine data (For 2800 PSI nozzle) (Used prior to engine serial no. 2504029)

1шт.
